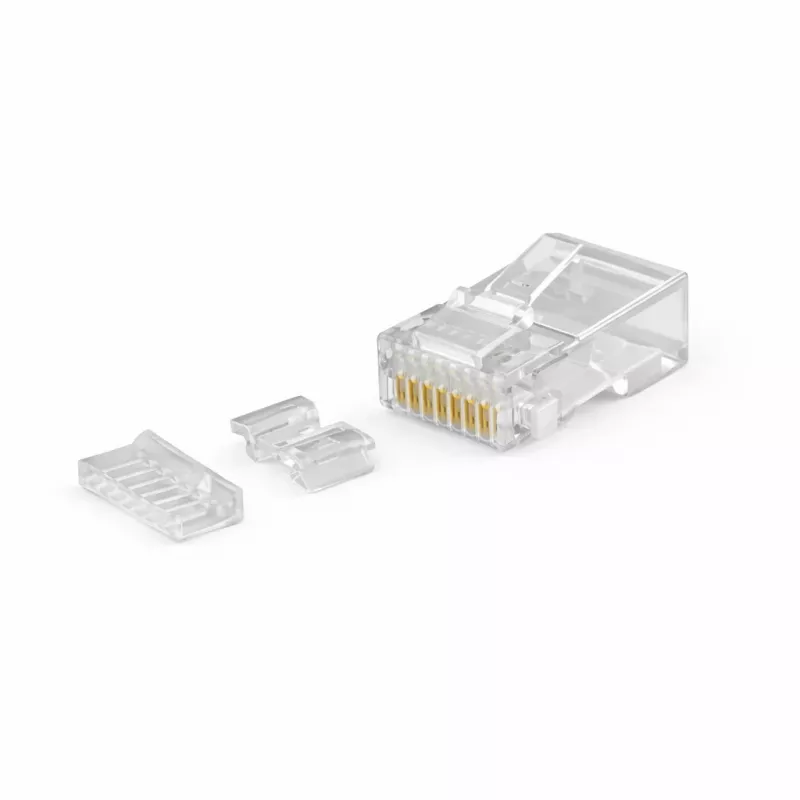

Ficha de rede DSIT UTP RJ45 CAT6a para cabos flexíveis - pack de 10

When you're terminating stranded patch cables for a high-density office network, the DSIT UTP RJ45 CAT6a connector delivers reliable 10-Gigabit performance in a transparent, easy-to-inspect housing. This 10-piece pack is ideal for IT technicians and network installers who need consistent, high-quality crimp-on plugs for flexible Ethernet cables.

Key specifications

• Connector type: RJ45 (8P8C) male plug
• Category: CAT6a, supporting data rates up to 10 Gbps
• Shielding: UTP (unshielded twisted pair)
• Cable compatibility: Stranded / flexible conductors, 24-26 AWG
• Bandwidth: Up to 500 MHz
• Contact plating: Gold-plated, 50 µm thickness
• Housing material: Polycarbonate, transparent
• Termination: Crimp-on, for stranded wire
• PoE support: Yes (Power over Ethernet)
• Operating temperature: -10°C to 60°C
• Insertion cycles: >750
• Certifications: RoHS, CE

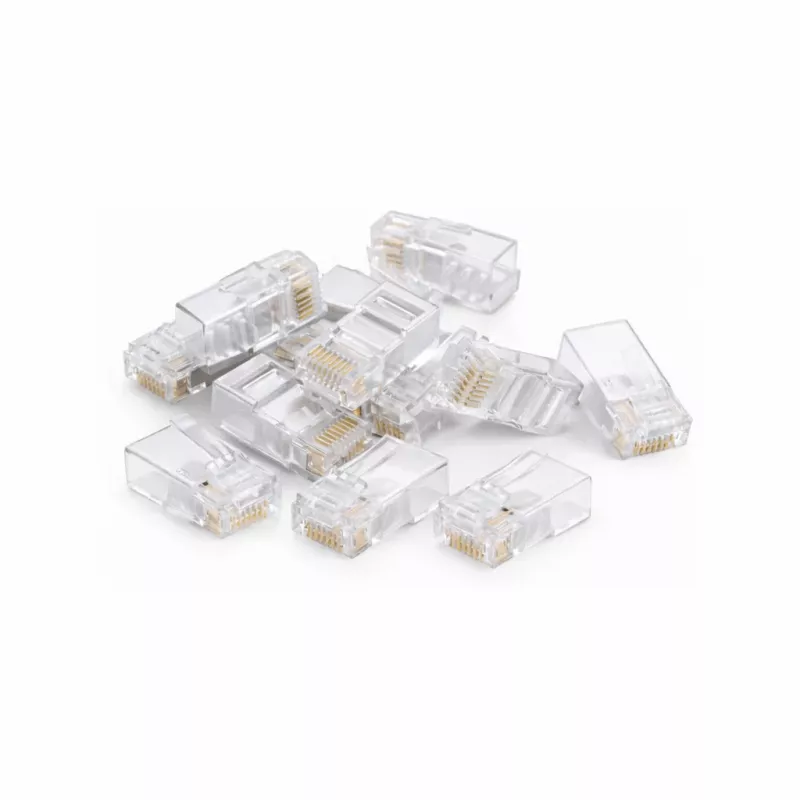

• Pack quantity: 10 pieces

Why choose it

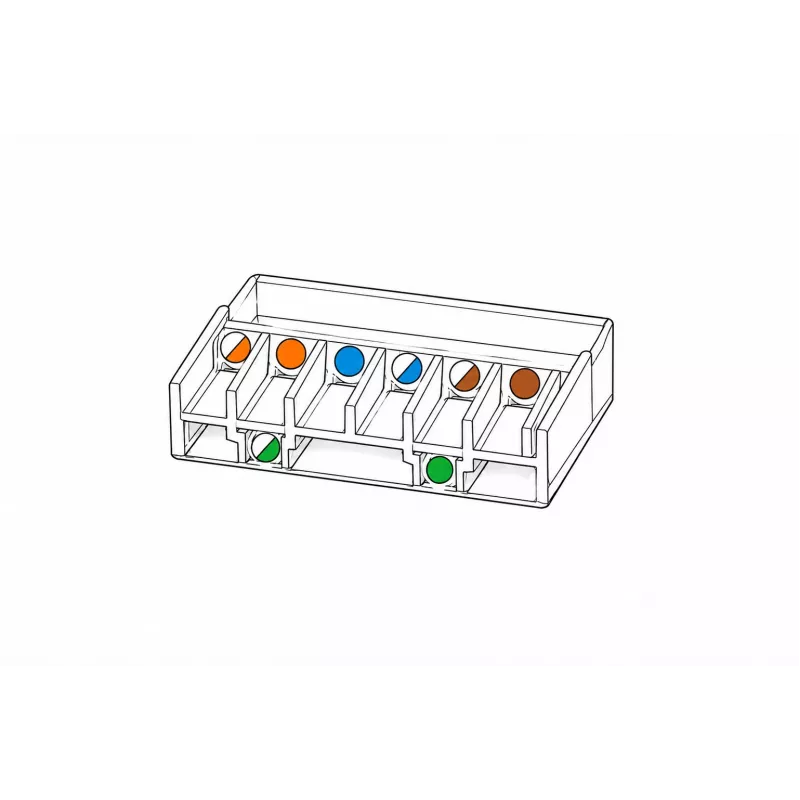

The transparent polycarbonate housing lets you visually confirm wire placement before crimping, reducing errors and rework. Gold-plated contacts ensure low contact resistance and long-term corrosion resistance, making these connectors suitable for demanding network environments. With support for 10GBASE-T and PoE, they are future-proof for modern infrastructure.

Ideal use cases

• Assembling custom-length patch cables for office or data center use
• Repairing or replacing damaged RJ45 plugs on stranded Ethernet cables
• Building high-speed network connections for PoE devices such as IP cameras and access points
• Structured cabling projects requiring CAT6a performance

Good to know

These connectors are designed specifically for stranded (flexible) cable, not solid core. Ensure you use the correct crimp tool for RJ45 plugs and follow T568A or T568B wiring standards. The pack of 10 provides a convenient quantity for small to medium installations.
