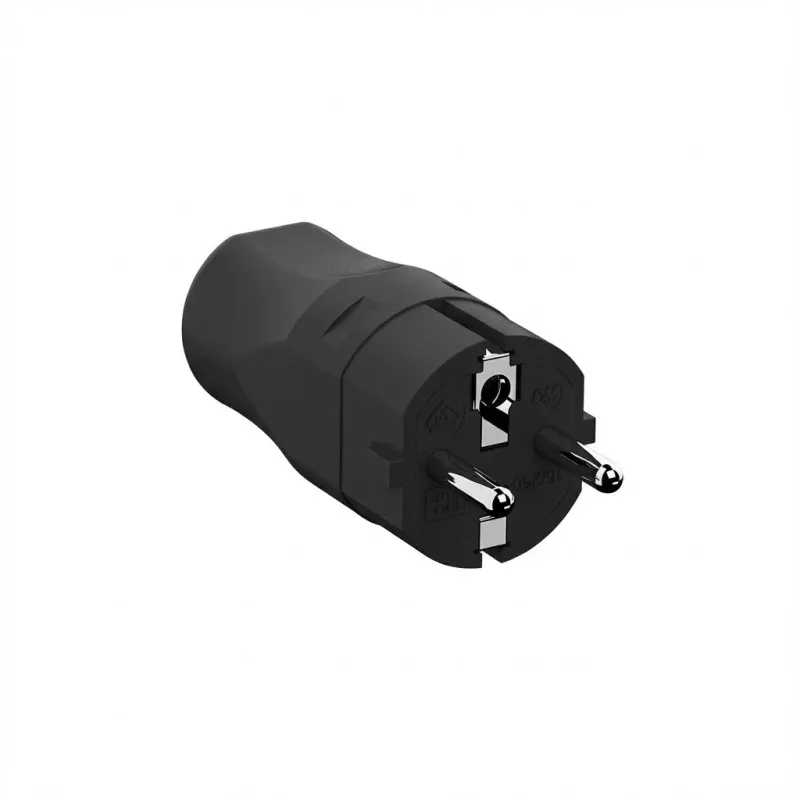

Ficha de rede tipo F Bachmann 910.100 preto 2P+E

H05VV-F flexible cable in conductor sizes 0.75 mm², 1.0 mm², and 1.5 mm² suitable for light-duty mains-connected appliances and portable equipment. The product includes a dual earthing contact system with nickel-plated contacts compatible with common German and French mains sockets. Its compact, robust design features a separate strain relief and contains no removable parts.

Advantages

The dual earthing contact system ensures reliable grounding in countries using German- and French-style mains plugs. Nickel-plated contacts offer good corrosion resistance and stable conductivity. The compact, break-proof housing with integrated, separate strain relief reduces the risk of cable damage and eliminates loose components during installation and use.

Key specifications

• Cable type: H05VV-F
• Conductor cross-sections: 0.75 mm², 1.0 mm², 1.5 mm²
• Earthing: dual earthing contact system (compatible with Germany and France)
• Contact plating: nickel-plated contacts
• Design: compact, break-proof housing with separate strain relief

How to use

Choose the appropriate conductor size for the intended appliance and ensure power is disconnected before installation. Insert the cable into the plug body and secure with the integrated strain relief to prevent pulling on connections. Connect to a compatible socket—German or French earthing contact variants—making sure the plug is fully inserted and contacts engage correctly. Inspect contacts periodically for wear or corrosion and replace the plug if damage is found.

Recommendations

Use the matching conductor cross-section for the appliance’s rated current, avoid overbending the cable near the plug, and replace the plug if the housing or contacts are damaged to maintain safe operation.
