Ficha Ethernet Lapp ED-IE-90-6A-A-20-FC angular — RJ45 blindada, 90°

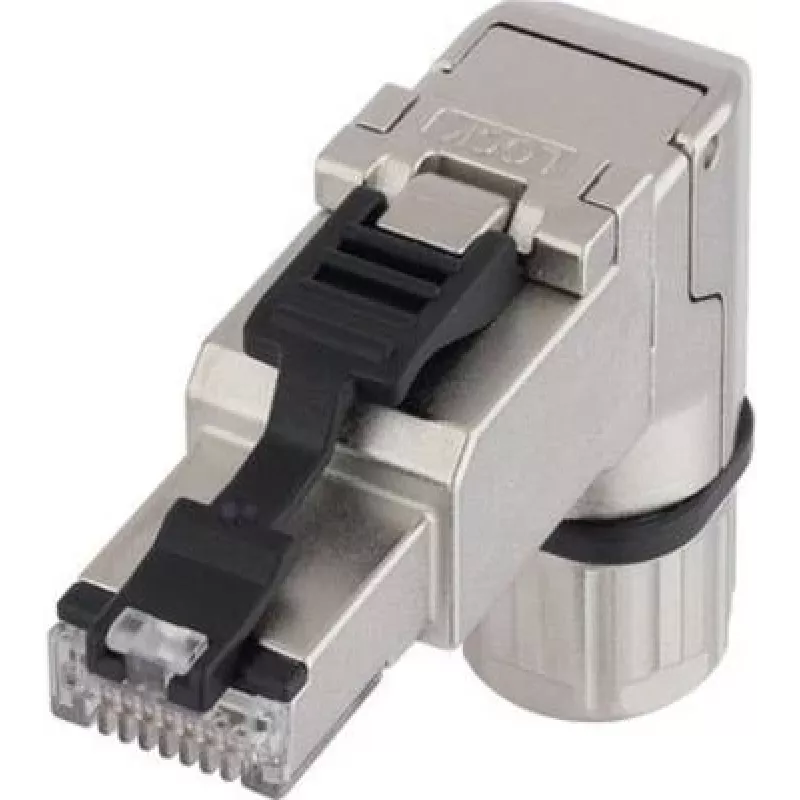

Angled Ethernet connector Lapp ED-IE-90-6A-A-20-FC is a shielded RJ45 interface designed for space-saving cable terminations at a 90° angle. The connector provides a compact, robust connection for industrial and networking environments where reliable data transfer and effective EMI protection are required. It is intended for use with patch cables and fixed installations that need a right-angled shielded RJ45 termination.

Advantages

The shielded RJ45 construction ensures electromagnetic interference protection and maintains signal integrity. Its 90° angled design reduces strain on cables and saves installation space in confined areas. The connector is built for durable, repeatable terminations and is compatible with standard Ethernet cabling, offering a secure mechanical and electrical connection.

Suitable for

Key specifications

How to use

Prepare the cable according to the connector manufacturer’s instructions, ensuring correct wire pairing and shielding termination. Insert and terminate the wires in the RJ45 contact positions, secure the shield to the connector housing to maintain continuity, and assemble the housing to complete the right-angled termination. Verify continuity and signal integrity after installation using appropriate testing tools.

Recommendations

Use the angled shielded RJ45 connector in installations where space is limited or cable bend radius must be controlled; ensure proper shielding contact and strain relief to maintain performance in industrial environments.
