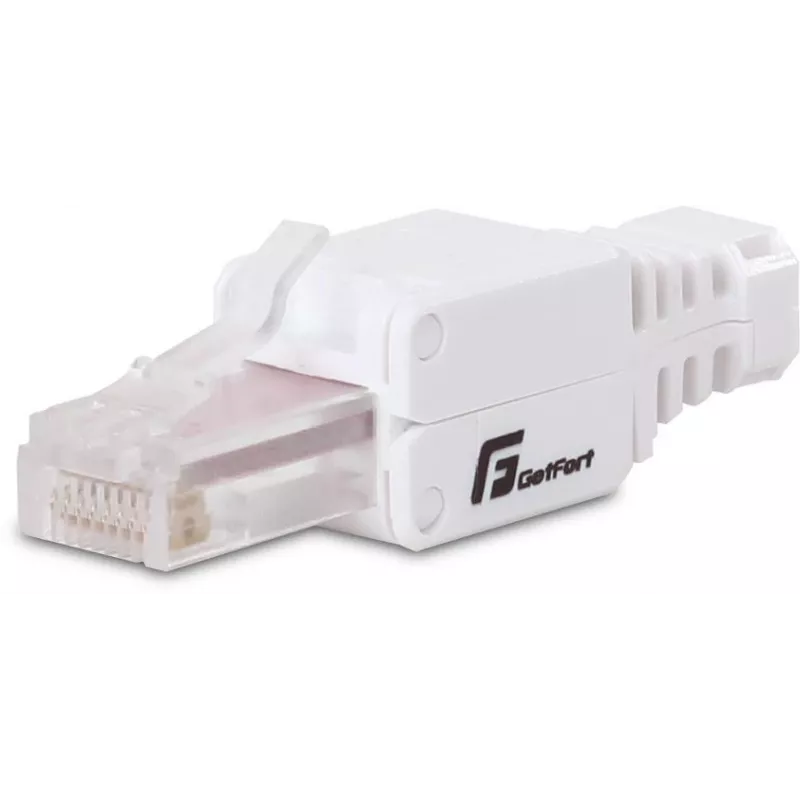

Ficha modular RJ45 Cat.6 UTP 8P8C sem ferramentas GETFORT GF-RJ45-6UTP-MB

Network installation demands speed and reliability, and the GETFORT GF-RJ45-6UTP-MB toolless RJ45 connector delivers both. This Cat.6 UTP 8P8C modular plug terminates solid or stranded copper cable without a crimp tool, cutting field termination time dramatically while maintaining full Gigabit Ethernet performance.

Advantages

Gold-plated contacts and phosphor bronze IDC terminals ensure stable, corrosion-resistant connections for years. The transparent high-impact polycarbonate housing lets you visually verify wire placement before locking, reducing errors. Supporting 23–26 AWG conductors and cable diameters from 6.0 to 7.5 mm, it adapts to most standard network cables. Compliance with TIA/EIA-568-C.2 and ISO/IEC 11801 guarantees interoperability in structured cabling systems.

Suitable for

• On-site termination of Cat.6 UTP patch cables
• Network installers and maintenance technicians
• Office, industrial, and residential LAN cabling
• Rapid deployment of temporary or permanent links

Key specifications

• Connector type: RJ45 (8P8C)
• Category: Cat.6, UTP (unshielded)
• Termination: toolless, field terminable
• Wire compatibility: solid and stranded copper, 23–26 AWG
• Data rate: up to 1 Gbps (1000BASE-T)
• Bandwidth: up to 250 MHz
• Contact plating: 50 µm gold
• Housing: high-impact polycarbonate, clear
• IDC contacts: phosphor bronze, nickel plated
• Operating temperature: -10°C to 60°C
• Certifications: RoHS compliant

Recommendations

For best results, strip the cable jacket to the recommended length, arrange conductors per T568A or T568B, and fully insert until they bottom out. Close the cap firmly to seat the IDC contacts. The connector is designed for single-use termination; once locked, it should not be reopened.
