Ficha modular RJ45 Intellinet, conector sem ferramentas, Cat5/5e/6, 22-26 AWG cabos UTP maciços e flexíveis

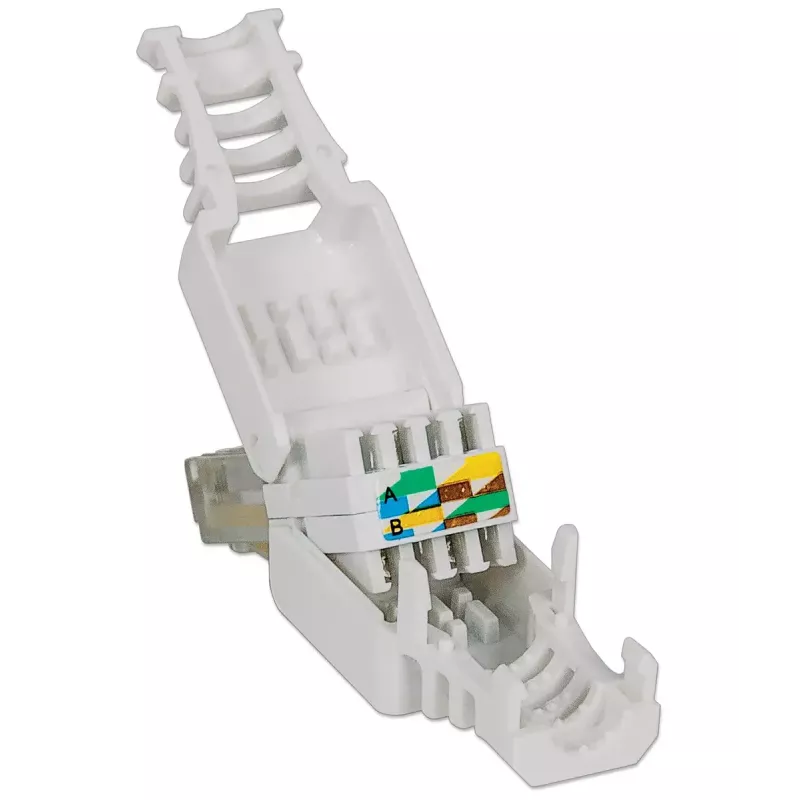

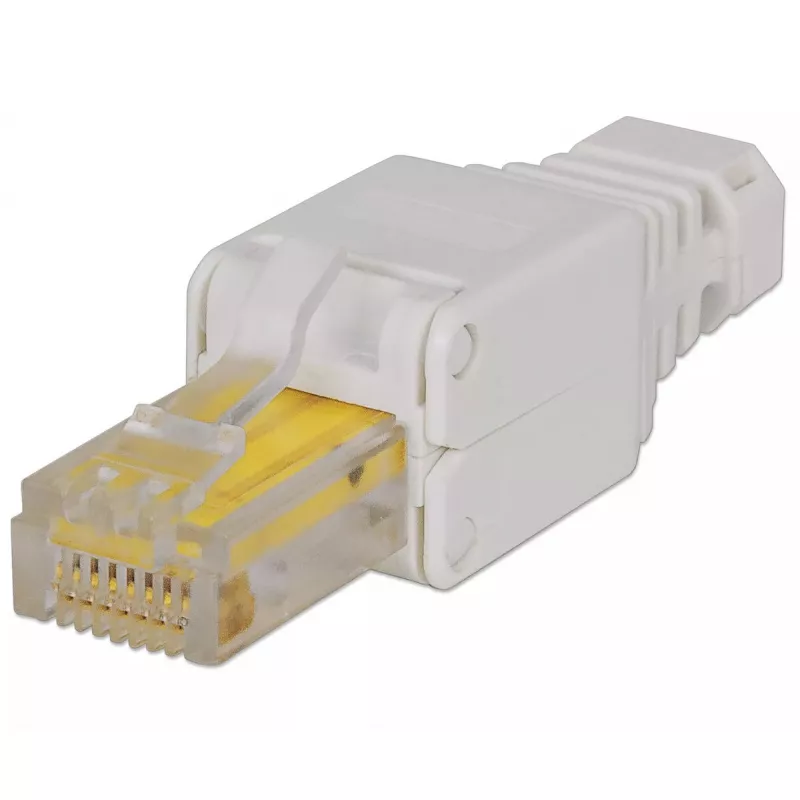

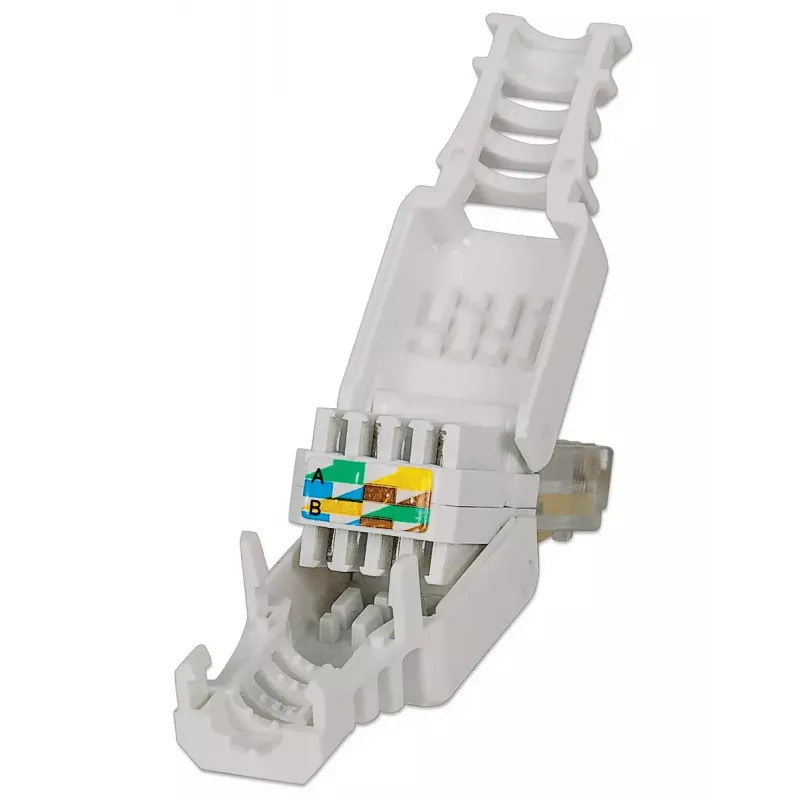

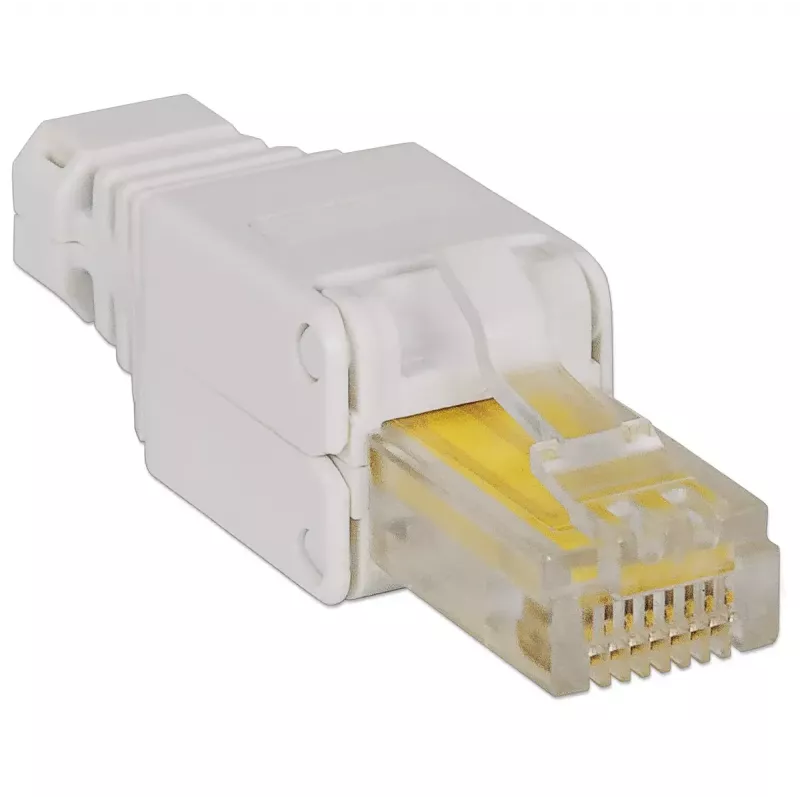

Intellinet RJ45 Modular Plug Toolless Connector for Cat5/5e/6 cables is a push-fit RJ45 connector designed for quick terminations without a crimping tool. It accepts 22–26 AWG solid and stranded UTP conductors and is color-coded to support T568A or T568B wiring. The connector provides reliable contact through IDC contacts and a closing boot that secures the cable and wires.

Advantages

The toolless RJ45 plug allows fast and easy installation by pushing the wires into IDC contacts when the boot is closed. It is compatible with TIA/EIA-568-B.2, ISO/IEC 11801 and EN50173-1 standards, accepts 22–26 AWG solid and stranded UTP cables, and comes with a lifetime warranty.

Suitable for

• Terminating Cat5, Cat5e and Cat6 UTP cables
• Quick on-site or field repairs and patch cable assembly
• Home networking and small office installations

Key specifications

• Connector type: RJ45 modular plug
• Compatibility: Cat5 / Cat5e / Cat6
• Wire gauge: 22–26 AWG, solid and stranded UTP
• Standards: TIA/EIA-568-B.2, ISO/IEC 11801, EN50173-1
• Installation: Toolless (push-fit IDC with closing boot)
• Colour: White
• Weight: 0.014 kg
• Brand / MPN: INTELLINET / 790482

How to use

Strip approximately 15 mm of the cable jacket, choose the desired wiring scheme (T568A or T568B) and align the conductors with the colour-coded slots in the connector. Slide the boot over the cable so the IDC blades press the wires into place, then close the boot fully to secure the connection. Ensure conductors are fully inserted into their slots before closing.

Recommendations

For best results use with unshielded twisted pair (UTP) Cat5/5e/6 cables and verify wiring continuity after termination. Avoid repeated reuse on the same cable end to maintain reliable contacts.
