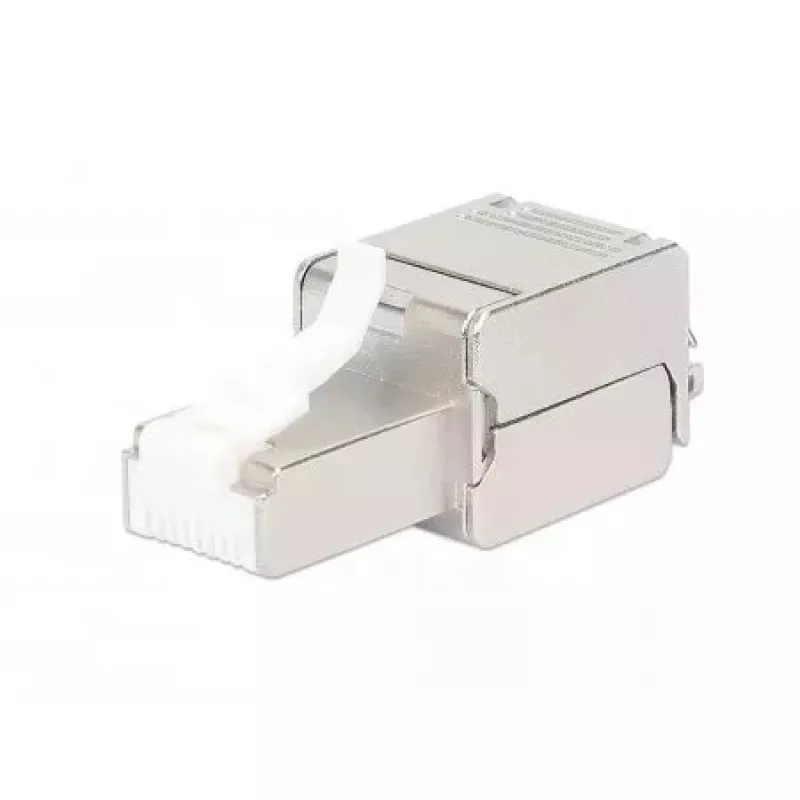

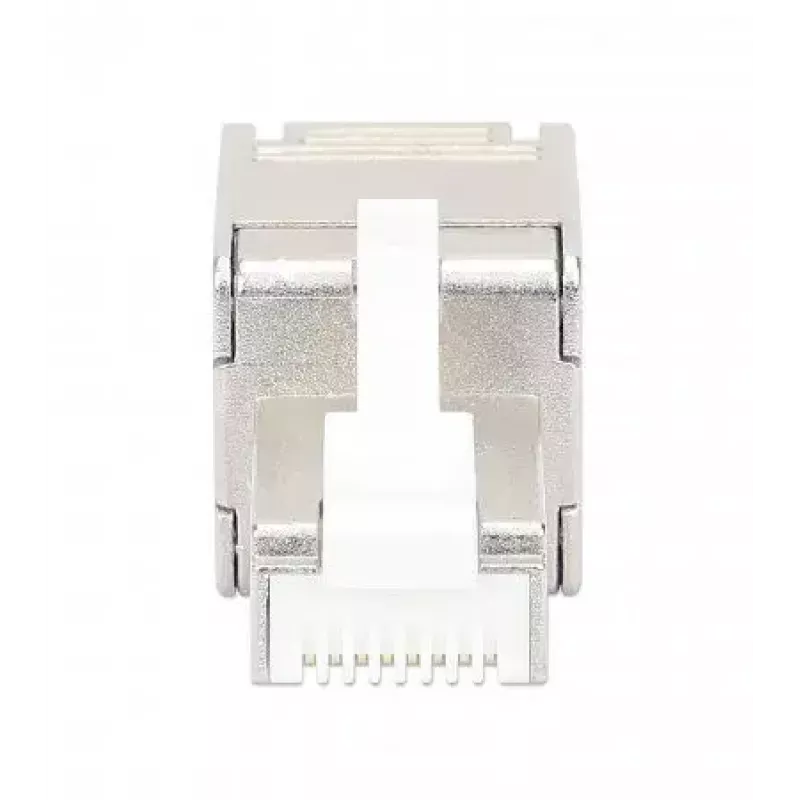

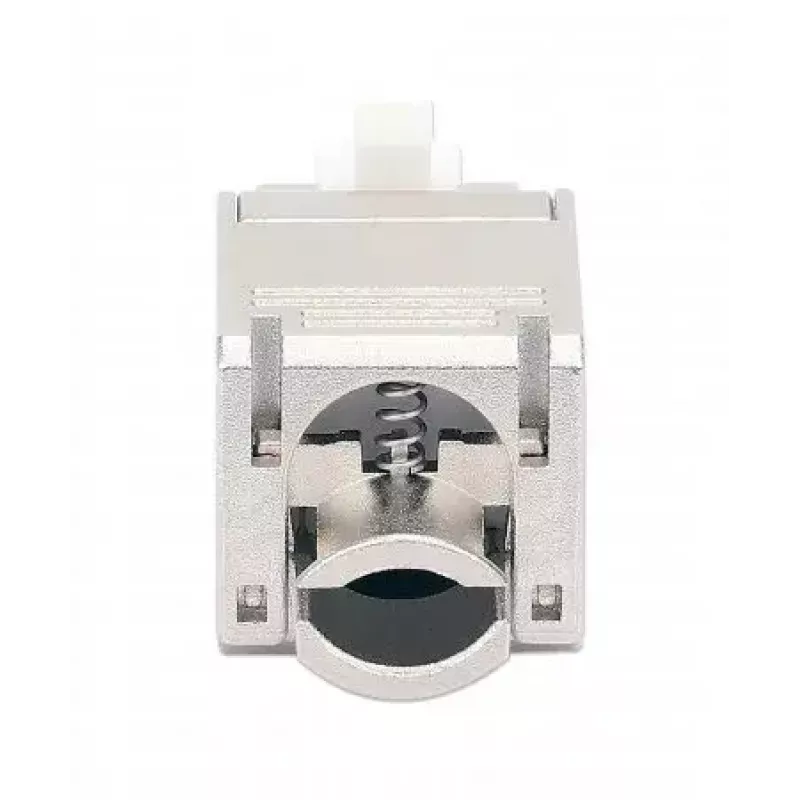

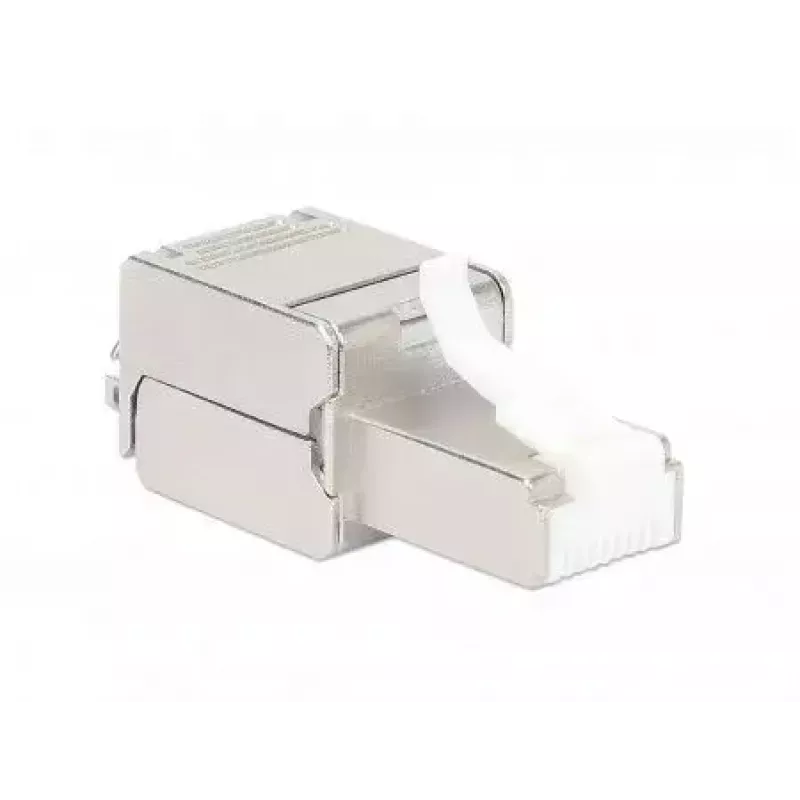

Ficha modular RJ45 sem ferramentas blindada Intellinet Cat6a 10G STP com contactos banhados a ouro

Intellinet Cat6a 10G Shielded Toolless RJ45 Modular Plug with gold-plated contacts and full 360° STP shielding enables quick, tool-free field termination of Ethernet cables. The metal housing and compatibility with both stranded and solid conductors support high-performance network connections up to 10GBase-T and PoE standards including IEEE 802.3bt (PoE++ / 4PPoE / Ultra PoE). The compact plug is intended for reliable cable assembly for devices such as security cameras, industrial electronics and other network equipment.

Advantages

The toolless design allows cable assembly in under two minutes without special tools. Gold-plated contacts and full STP shielding provide improved signal integrity and protection against electromagnetic interference. The metal housing ensures mechanical robustness for field use, while compatibility with both stranded and solid wires makes the plug suitable for a wide range of installation scenarios.

Suitable for

• Field termination of Cat6a/STP Ethernet cables
• Installations requiring 10GBase-T throughput
• Power over Ethernet deployments up to IEEE 802.3bt (PoE++ / 4PPoE)
• Security cameras, industrial electronics and outdoor/networked devices

Key specifications

• Connector type: RJ45 (male)
• Cable class: Cat6a, STP
• Data rate: up to 10GBase-T
• PoE support: up to IEEE 802.3bt (PoE++)
• Contacts: gold-plated
• Shielding: 360° STP
• Housing: metal (stainless steel colour)
• Weight: 0.02 kg
• Dimensions: 15 mm (W) x 41 mm (D)

How to use

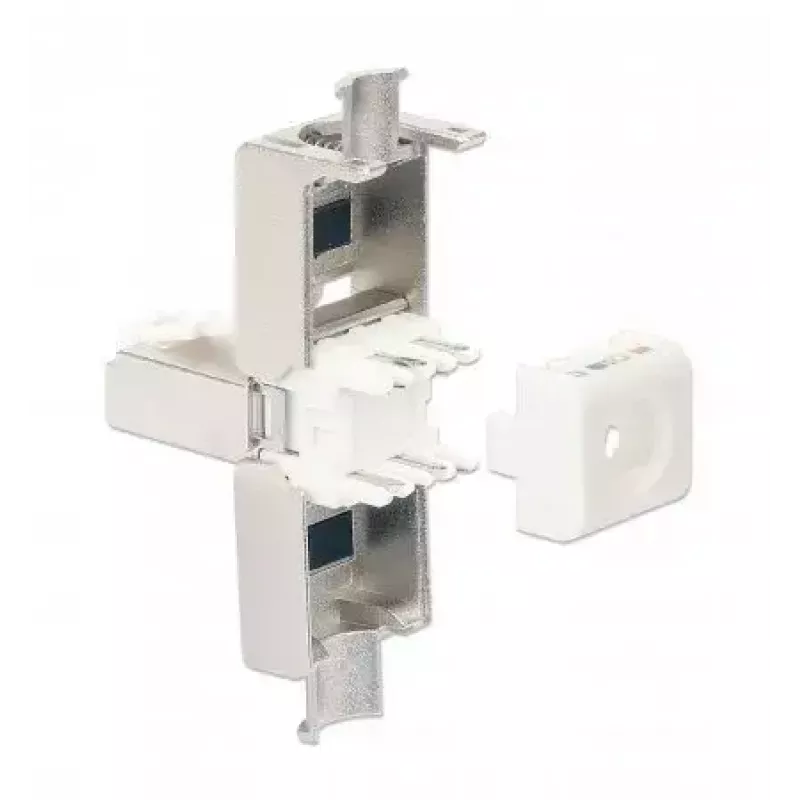

Strip the cable jacket and prepare individual conductors according to Cat6a wiring standards, then insert the cable into the toolless plug body until it seats fully. Close the metal housing and engage the internal contacts to pierce the insulation and make contact with each conductor. Ensure the shielding is grounded as required by your installation practice. Verify wiring order and test the terminated connector with a cable tester before final deployment.

Recommendations

Use this plug with Cat6a STP cables and maintain proper shielding continuity and grounding for optimal signal integrity. For installations delivering PoE++ (IEEE 802.3bt), verify power budgets and connector contact condition periodically.
