Ficha padrão elétrica Bachmann 917.170

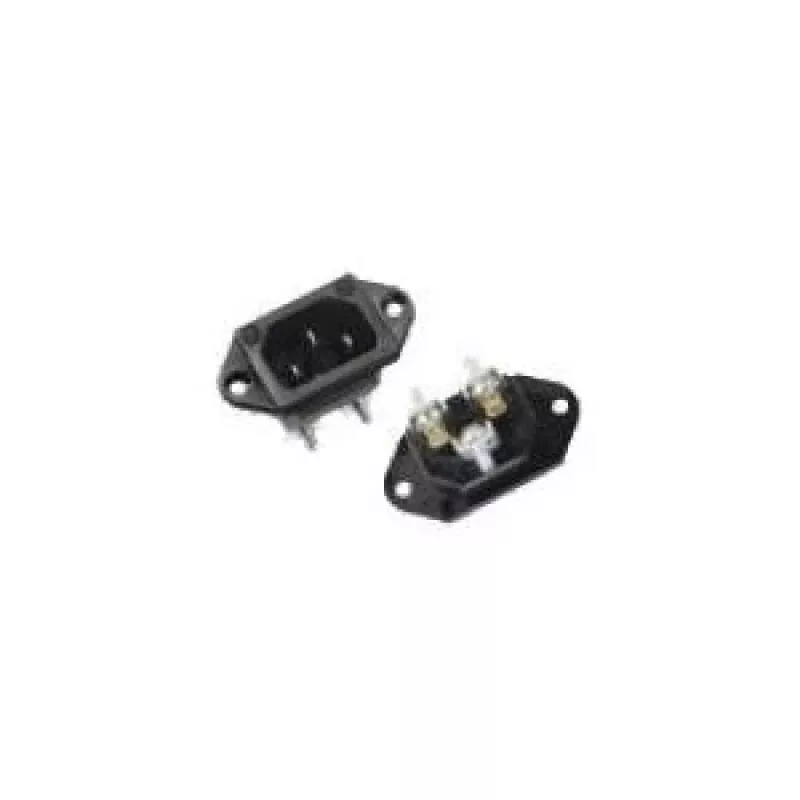

The Bachmann 917.170 electrical standard connector is a thermoplast screw-terminal male connector designed for secure power connections rated at 10 A and 250 V. Finished in black, this connector provides a compact, durable interface suitable for a variety of electrical installations in residential and commercial environments.

Advantages

The thermoplast housing offers mechanical strength and resistance to wear, while the screw terminal ensures reliable contact and straightforward installation. With a 10 A current rating and 250 V voltage rating, the connector is compatible with many standard devices. Its compact male design and black finish help maintain a neat appearance and simplify integration into existing systems.

Suitable for

• Connecting small appliances and equipment requiring up to 10 A
• Residential electrical installations and repairs
• Commercial low-current power connections and service panels
• Prototyping and equipment maintenance where a screw-terminal male connector is needed

Key specifications

• Brand: Bachmann
• Model / MPN: 917.170
• EAN: 4016514005871
• Connector type: Male, screw terminal
• Housing material: Thermoplast
• Current rating: 10 A
• Voltage rating: 250 V
• Color: Black

How to use

Strip the conductor to the appropriate length, insert it into the screw terminal and tighten the screw to secure the conductor without over-torquing. Verify that the stripped conductor is fully captured by the terminal and that there are no exposed strands. After assembly, connect the male plug to the corresponding mating connector and check for firm mechanical and electrical contact before applying load.

Recommendations

Use the connector only within its rated current (10 A) and voltage (250 V). Select an appropriate conductor cross-section and tighten screws to the manufacturer’s recommended torque if available. Avoid exposure to temperatures or environments beyond the thermoplast material limits and inspect connections periodically for corrosion or loosening.
