Ficha RJ45 com resistência de terminação 60 Ohm DeLOCK 66807

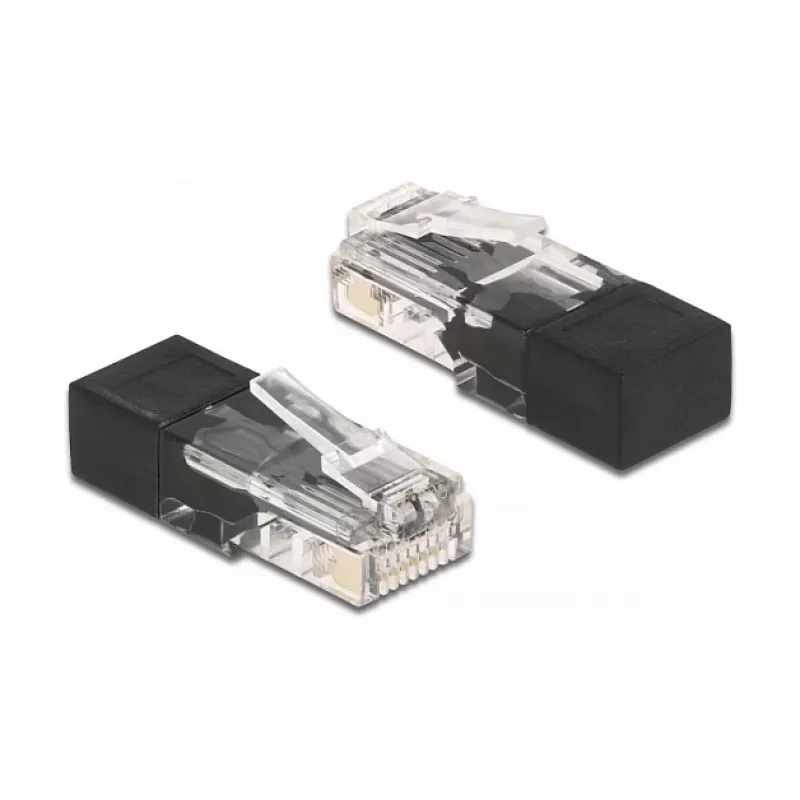

The DeLOCK RJ45 plug with a 60 Ohm terminating resistor is a compact male network connector intended for measurement, control and regulation systems that require a defined line termination. It is supplied in packs of two and comes in a combination of black and transparent colours. Dimensions: 11.6 mm (W) × 30.3 mm (D) × 7.9 mm (H).

Advantages

The integrated 60 Ohm resistor provides a fixed termination to reduce reflections on the line. The compact RJ45 male design allows straightforward insertion into standard RJ45 sockets. Supplied as a two-piece set in a polybag, the plugs are suitable for quick replacement or spare parts in control and measurement applications.

Suitable for

• Measurement systems requiring defined line termination
• Control and regulation equipment
• Field testing and temporary network terminations

Key specifications

• Connector: RJ-45 (male)
• Terminating resistor: 60 Ohm
• Product colour: Black, Transparent
• Dimensions (W×D×H): 11.6 × 30.3 × 7.9 mm
• Contents: 2 pieces per pack (polybag)
• Brand: DELOCK, MPN: 66807, EAN: 4043619668076
• Country of origin: China

How to use

Insert the RJ45 plug into the corresponding RJ45 socket until it clicks or is firmly seated. Use the plug to provide a permanent or temporary line termination in measurement, control or regulation circuits. Ensure the plug’s termination value (60 Ohm) matches the system requirements before installation.

Recommendations

Verify system compatibility with a 60 Ohm termination and avoid exposing the connector to excessive mechanical stress or moisture. Store unused plugs in the original packaging to protect contacts.
