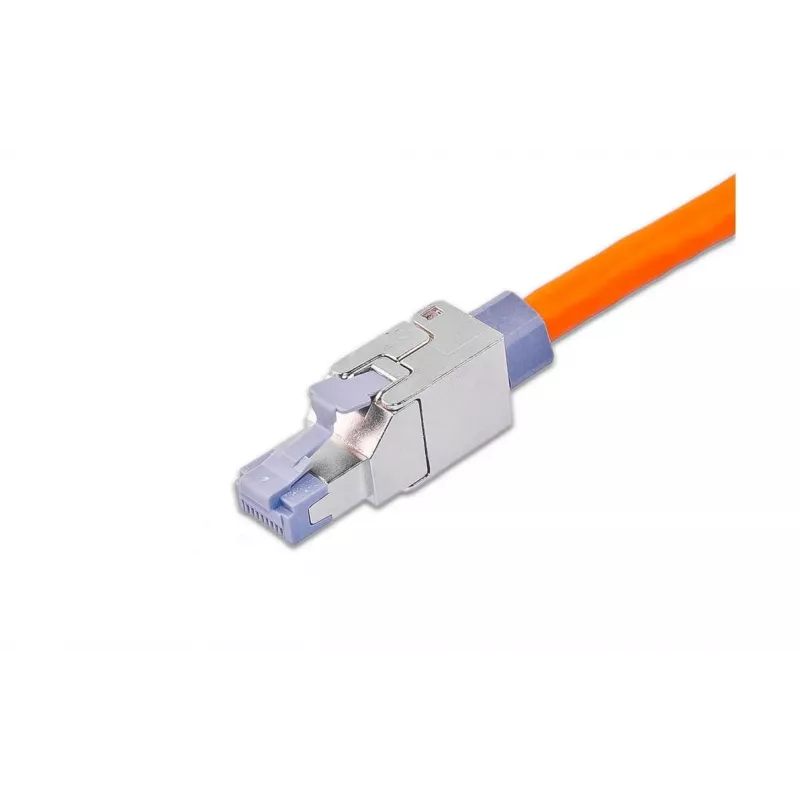

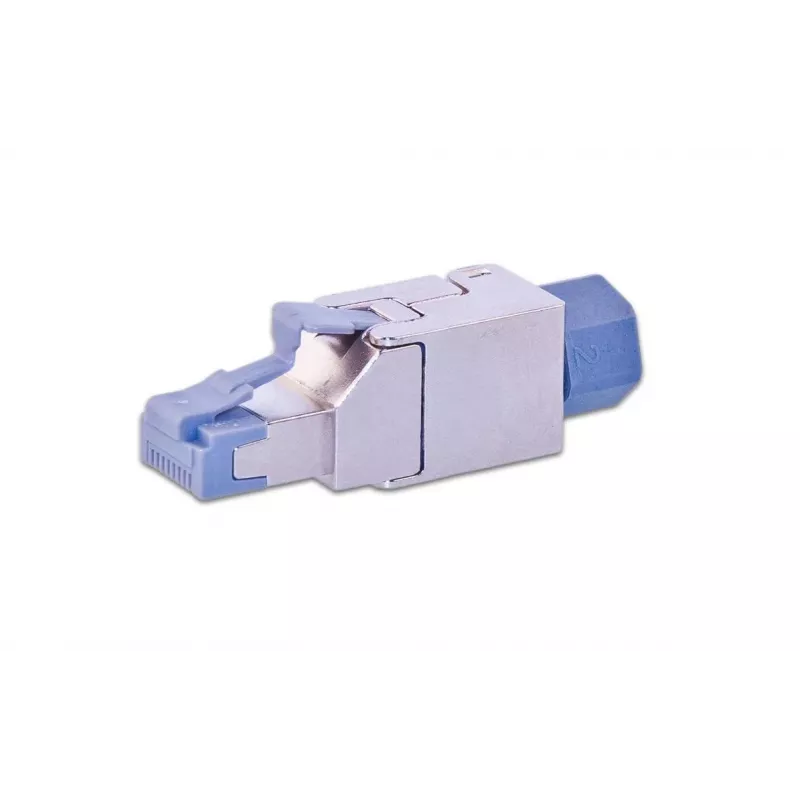

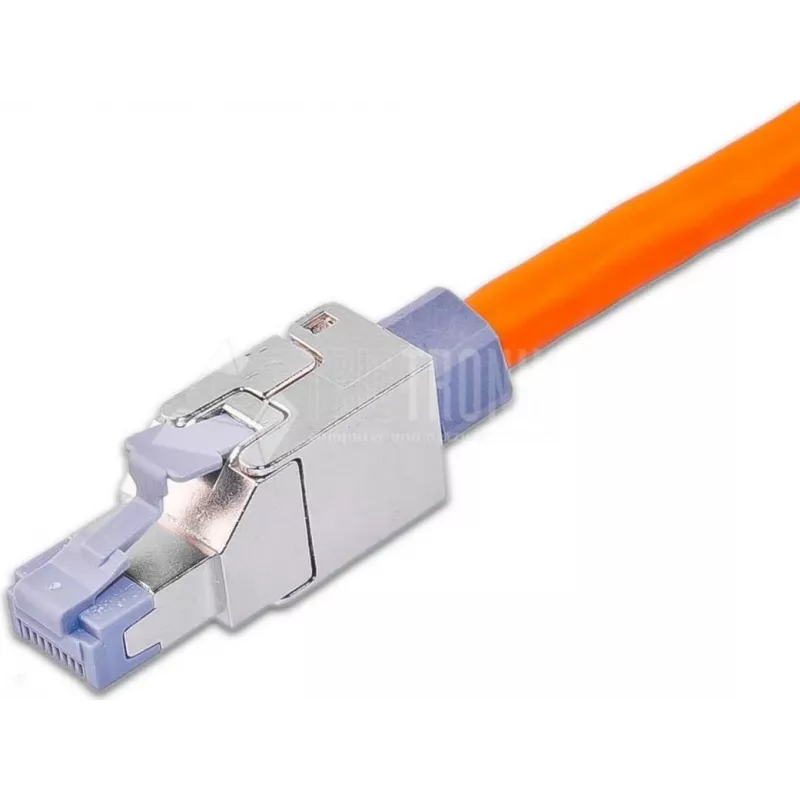

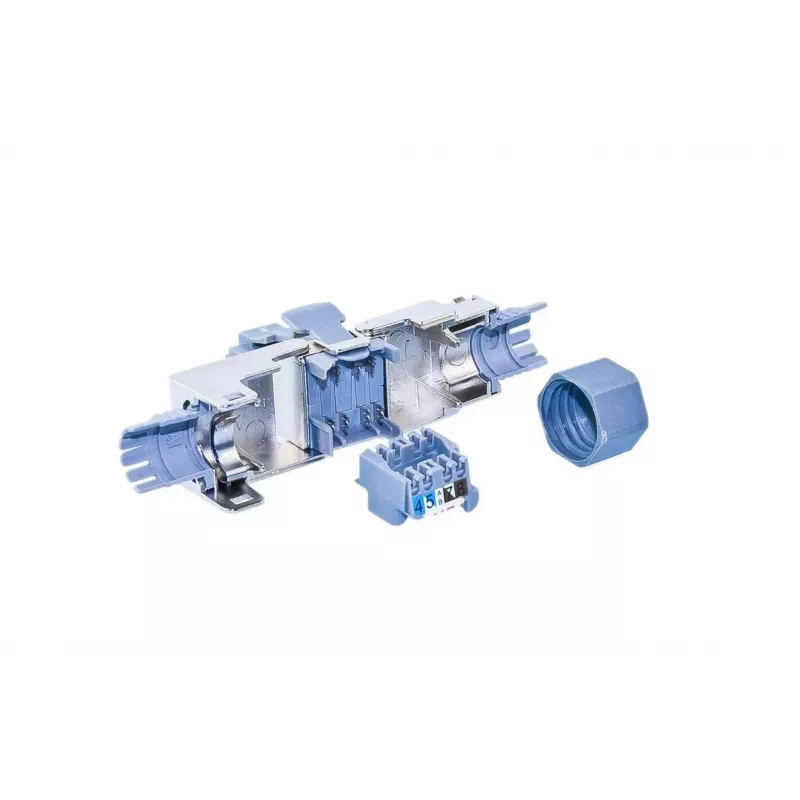

Ficha RJ45 de campo Wirewin WKS FK RJ45 KAT6A, Cat6A, blindada, sem ferramentas, zamac, contactos dourados, para cabo 22-24 AWG, 6-9mm

Network technicians and installers who need a reliable, reusable RJ45 connector for Cat6A installations will appreciate the Wirewin WKS FK RJ45 KAT6A. This field terminable plug is designed for on-site termination of shielded twisted pair cables without special tools, making it ideal for quick repairs or custom cable assembly in office and industrial environments.

Key specifications

• Connector type: RJ45 plug (male)
• Category: Cat6A (Class EA)
• Shielding: fully shielded (FTP/STP)
• Termination: tool-free (field terminable)
• Conductor compatibility: solid AWG 24/1 - 22/1 (0.51 - 0.64 mm), stranded AWG 27/7 - 22/7 (0.46 - 0.76 mm)
• Cable diameter: 6.0 - 9.0 mm
• Contact plating: gold-plated (50 µm)
• Housing material: die-cast zinc
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Wiring schemes: T568A and T568B (color-coded)
• Insertion cycles: >750
• Operating temperature: -40°C to +85°C
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Data rate: up to 10 Gigabit Ethernet (10GBASE-T)

Why choose it

The tool-free design saves time and eliminates the need for crimping tools, while the die-cast zinc housing provides robust shielding and durability. Gold-plated contacts ensure reliable signal integrity, and the wide cable diameter range accommodates various cable types.

Ideal use cases

• Field termination of Cat6A cables in offices, data centers, and industrial settings
• Custom-length patch cable assembly
• Repairing damaged connectors without replacing the entire cable
• High-speed 10GBASE-T networks with PoE devices

Good to know

The connector supports both solid and stranded conductors, making it versatile for different cable constructions. Its color-coded wiring guide simplifies installation and reduces errors.
