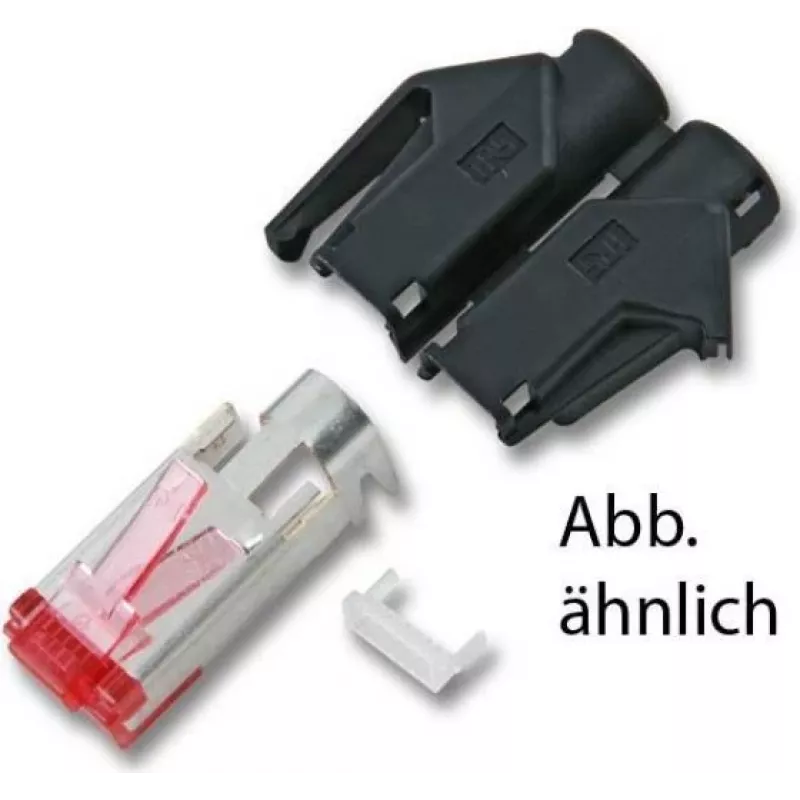

Ficha RJ45 HIROSE TM31DP CAT6a terminável em campo blindada (STP) 8P8C

The HIROSE TM31DP CAT6a Field Terminable RJ45 Plug is a high-performance, tool-less connector designed for reliable and fast network installations. Engineered for Category 6a applications, it supports data rates up to 10 Gigabit Ethernet over twisted pair cables. The shielded design (STP/FTP) ensures excellent EMI/RFI protection, making it ideal for industrial and data center environments.

Advantages

Tool-less termination saves time and eliminates the need for specialized crimping tools. The IDC (Insulation Displacement Connector) technology ensures secure and consistent contact with conductors. Gold-plated contacts (50 micro-inches) provide superior conductivity and corrosion resistance, ensuring long-term reliability. Compatible with PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for power-over-Ethernet applications.

Suitable for

• Data centers requiring high-speed, reliable connections
• Industrial Ethernet networks in harsh environments
• Office networks with structured cabling
• Field termination of bulk Cat6a cable

Key specifications

• Connector Type: RJ45 Plug (8P8C)
• Cable Category: Cat6a (Category 6a)
• Termination Method: Field Terminable, Tool-less, IDC
• Shielding: Shielded (STP/FTP)
• Contact Plating: 50 micro-inches Gold over Nickel
• Wire Gauge: 22-26 AWG Solid or Stranded
• Outer Cable Diameter: 5.0 mm to 8.0 mm
• Housing Material: Polycarbonate (PC), UL94 V-0
• Durability: 750 mating cycles
• PoE Support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE)
• Operating Temperature: -10°C to +60°C
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS
• Current Rating: 1.5A max.
• Voltage Rating: 125V AC max.

Recommendations

For optimal performance, use with Cat6a shielded cable and ensure proper grounding. Suitable for both solid and stranded conductors. Always follow manufacturer's installation guidelines.
