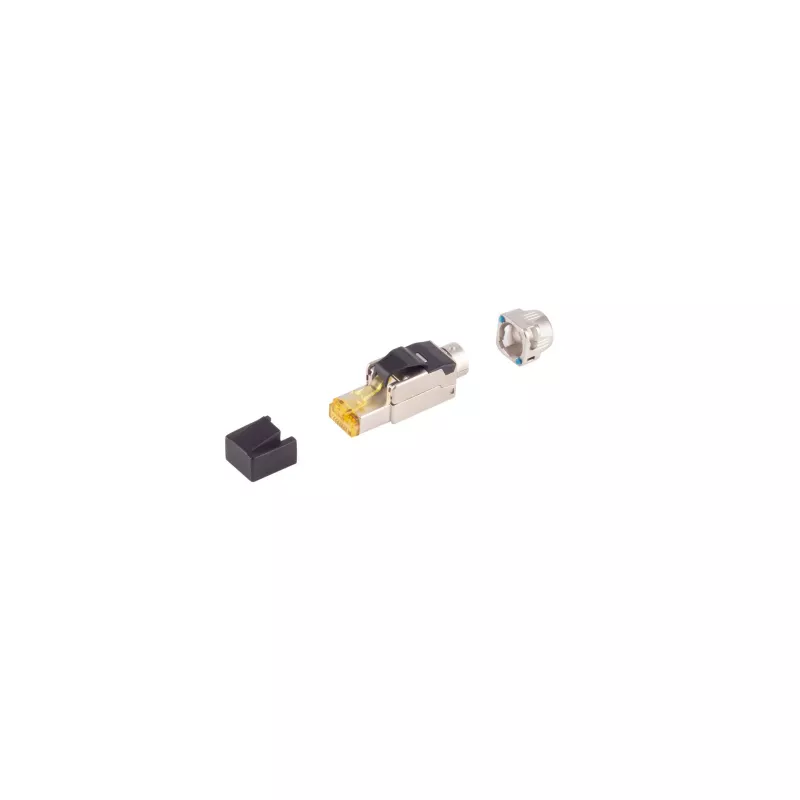

Ficha RJ45 STP sem ferramentas SHIVERPEAKS BS08-51011 Cat. 6A, zamac, contactos dourados

Terminate shielded network cables up to 10 Gigabit Ethernet without crimping. The SHIVERPEAKS BS08-51011 Cat. 6A tool-less RJ45 plug features a zinc die-cast housing and 50µm gold-plated contacts for reliable, high-speed data transmission.

Overview

This field-terminable RJ45 connector supports Category 6A performance with a frequency bandwidth up to 500 MHz. The tool-less design allows fast, reusable termination of solid or stranded conductors from AWG 22 to 26. Color-coded wiring guides for T568A and T568B simplify installation, while the integrated strain relief protects the connection.

What stands out

• Tool-less termination – no crimp tool required, reusable
• Shielded STP design with zinc die-cast housing for EMI protection
• Gold-plated contacts (50µm) ensure corrosion resistance and durability
• Supports both solid and stranded wire, AWG 22–26
• Rated for over 750 mating cycles

Technical details

• Connector type: RJ45 plug
• Performance category: Cat. 6A
• Shielding: STP (shielded twisted pair)
• Data rate: up to 10 Gbit/s (10GBASE-T)
• Frequency: up to 500 MHz
• Wiring standard: T568A / T568B
• Conductor gauge: AWG 22–26
• Housing material: zinc die-cast
• Contact plating: 50µm gold
• Durability: >750 mating cycles
• Compliance: RoHS

Our verdict

A robust, reusable Cat. 6A connector for professionals who need reliable shielded terminations in the field without specialized tools.
