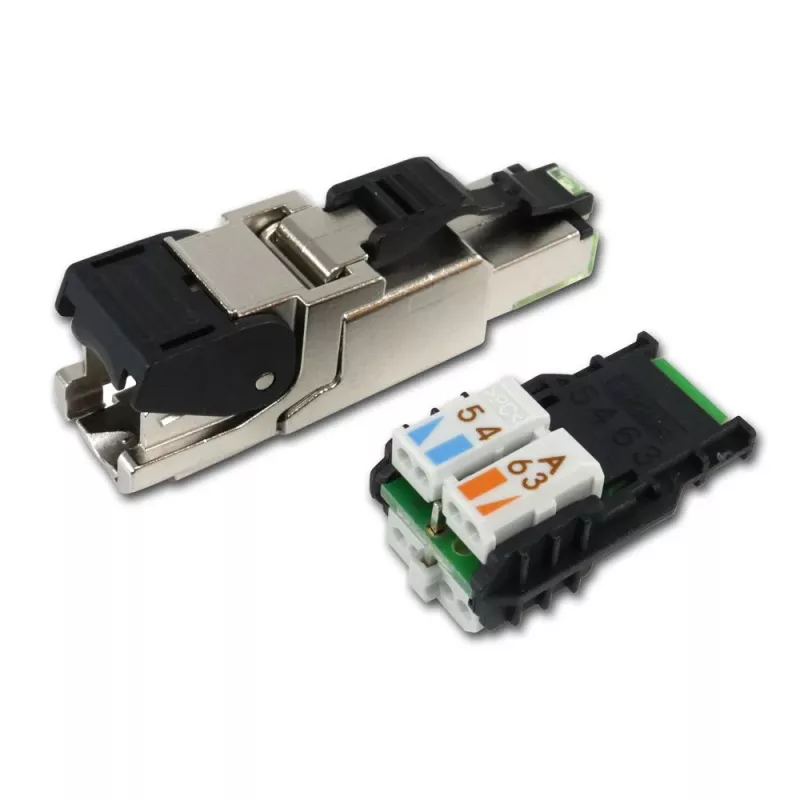

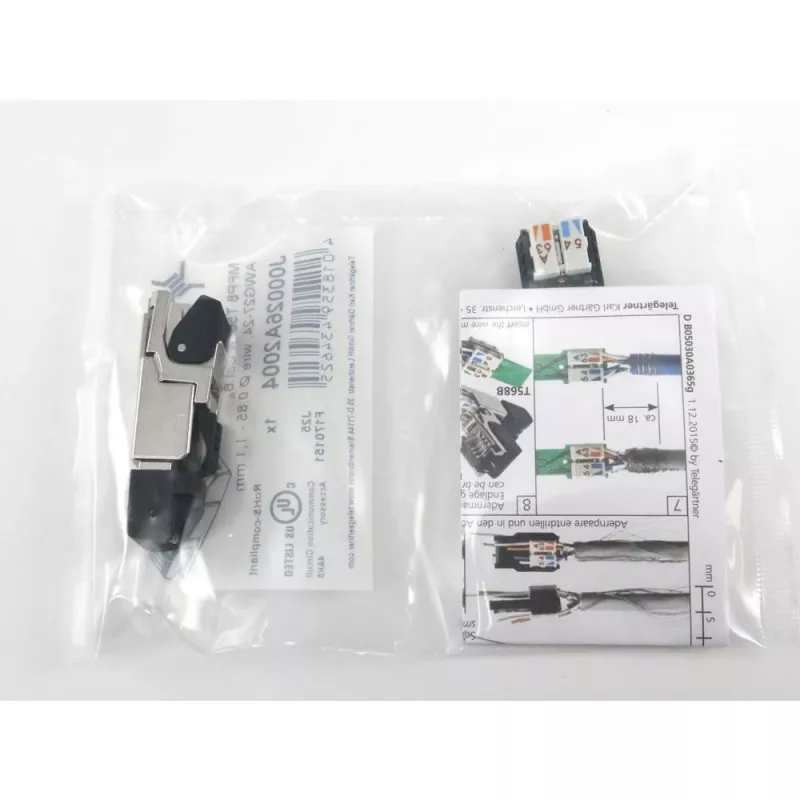

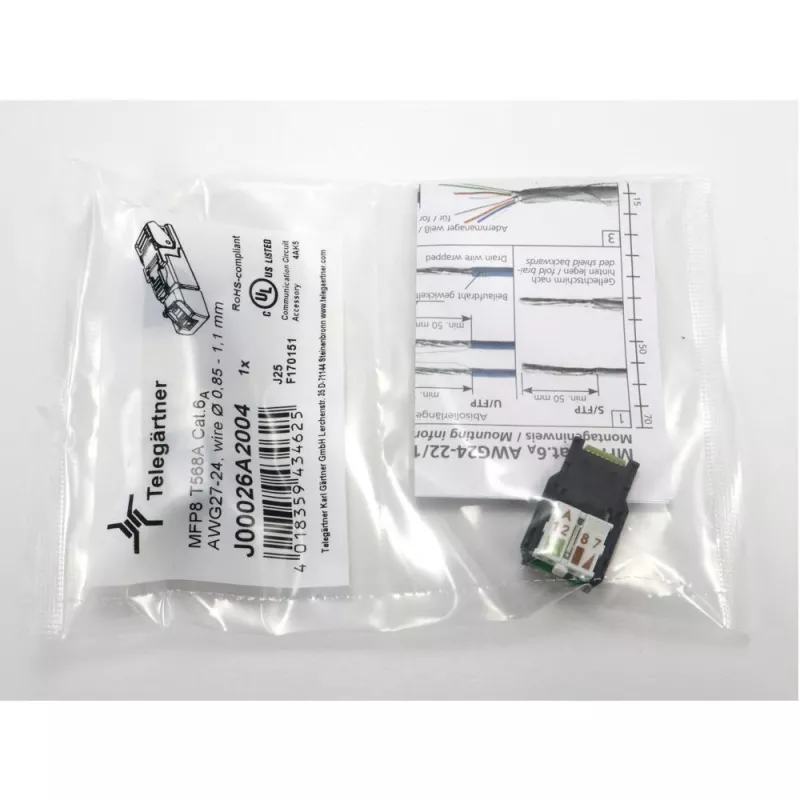

Ficha RJ45 Telegärtner MFP8 Cat.6a (Deep), T568A com tampa antipoeira pré-montada, caixa robusta de zinco fundido - 1 unidade (J00026A2004)

The Telegärtner J00026A2004 is a high-performance RJ45 plug connector from the MFP8 series, designed for Category 6A (ISO/IEC) applications. It features a robust die-cast zinc housing and a pre-assembled dust cap, ensuring reliable protection and durability in demanding environments. This field-terminable, tool-free IDC connector supports T568A wiring (also compatible with T568B) and is suitable for 10 Gigabit Ethernet (10GBASE-T) networks. It is re-terminable up to 4 times, making it a cost-effective solution for professional installations.

Advantages

Tool-free and field-terminable for quick installation; re-terminable up to 4 times; pre-assembled dust cap protects against contamination; robust die-cast zinc housing for mechanical strength; supports PoE, PoE+, and PoE++ (IEEE 802.3at/af/bt); gold-plated contacts (0.8 µm) ensure reliable signal transmission.

Suitable for

• Structured cabling in data centers and enterprise networks
• Industrial Ethernet applications requiring rugged connectors
• 10GBASE-T installations over twisted pair copper cabling
• Power over Ethernet (PoE) deployments for IP cameras, access points, and IoT devices

Key specifications

• Connector Type: RJ45 Plug (8P8C)
• Category: Cat.6A (ISO/IEC)
• Wiring Standard: T568A (also supports T568B)
• Shielding: Shielded (FTP/STP)
• Termination Method: Field-terminable, tool-free IDC
• Housing Material: Die-cast zinc
• Contact Plating: Gold (0.8 µm / 50 µinch)
• Transmission Performance: 10 Gigabit Ethernet (10GBASE-T)
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3at/af/bt)
• Cable Type Compatibility: Solid and stranded wire
• AWG Compatibility: AWG24/1 - AWG22/1 (solid), AWG27/7 - AWG22/7 (stranded)
• Insulated Conductor Diameter: 0.9 mm - 1.6 mm
• Cable Jacket Diameter: 5.0 mm - 9.0 mm
• Mating Cycles: ≥ 750
• Operating Temperature: -40 °C to +70 °C
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Special Features: Re-terminable (up to 4 times), pre-assembled dust cap, compact design

Recommendations

For optimal performance, use with Category 6A or higher shielded cabling. Ensure proper strain relief and cable jacket diameter within 5.0-9.0 mm. This connector is ideal for high-density patching areas where space is limited.
