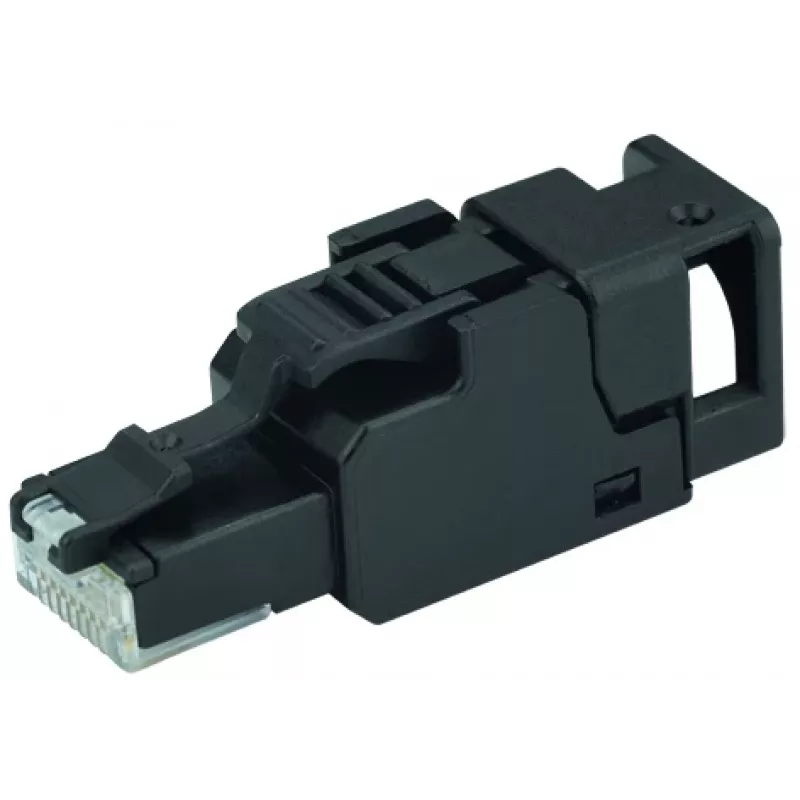

Ficha RJ45 TELEGÄRTNER UFP8 Cat.6A de montagem em campo, T568B, AWG23-22, blindada, IDC sem ferramentas J00026A3113

The UFP8 is a field-termination RJ45 plug that eliminates the need for a crimp tool. Its tool-less IDC termination and zinc die-cast housing set it apart from standard modular plugs, enabling fast, reliable connections in the field.

Highlights

• Tool-less IDC termination for quick, solder-free assembly
• Supports solid wire AWG 23-22 and stranded wire AWG 27-22
• Shielded design with nickel-plated zinc die-cast housing
• Reusable up to 10 times for flexible installations
• Complies with Cat.6A performance standards including PoE++

In daily use

This plug is intended for on-site assembly of Cat.6A patch cables. The T568B wiring standard ensures consistent pin assignments. The robust metal housing provides strain relief and shielding continuity, while the gold-plated contacts maintain signal integrity over repeated insertions.

Full specifications

• Connector Type: RJ45 Plug (8P8C)
• Performance Category: Cat.6A
• Shielding: Shielded (STP/FTP)
• Wiring Standard: T568B
• Termination Method: Tool-less IDC
• Compatible Wire Type: Solid and Stranded
• Compatible Wire Gauge (Solid): AWG 23-22 (0.51 - 0.64 mm)
• Compatible Wire Gauge (Stranded): AWG 27-22 (0.46 - 0.64 mm)
• Compatible Cable Diameter: 5.0 - 9.0 mm
• Housing Material: Zinc Die-Cast, Nickel-Plated
• Contact Plating: Gold over Nickel
• Reusability: Up to 10 re-terminations
• Operating Temperature: -40°C to +70°C
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Standards Compliance: ISO/IEC 11801 Ed.2.2, EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51
• Insertion Cycles: > 750
• Flammability Rating: UL94 V-0 (for plastic components)

Final note

A reliable field-termination plug for Cat.6A installations, combining tool-less convenience with robust shielding and high-performance compliance.
