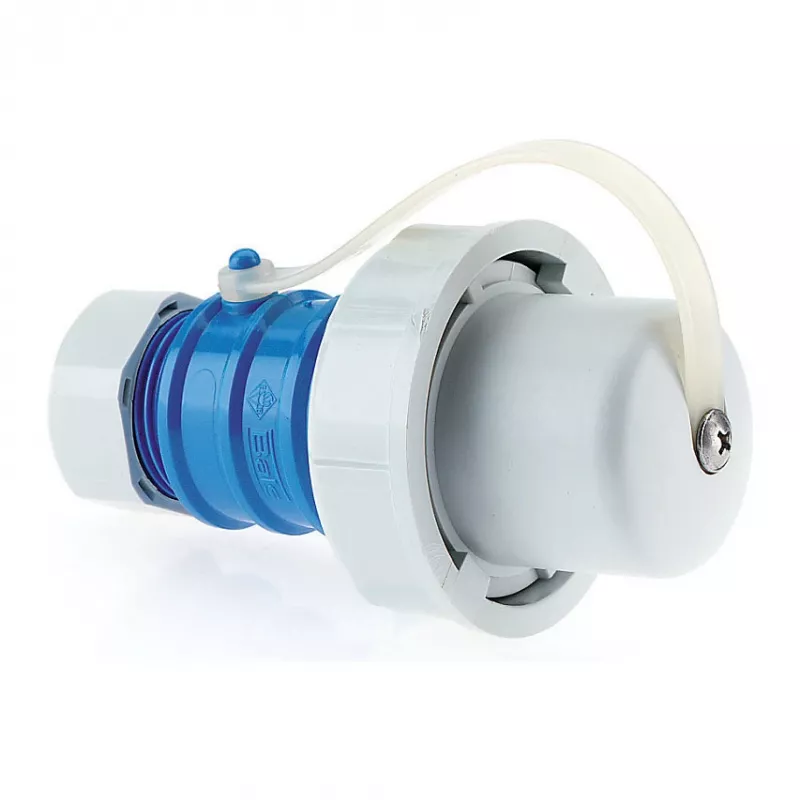

Ficha Schuko BALS 16A 250V 736 Azul IP68 à prova de água

The BALS 736 Schuko plug delivers robust and reliable power connections even in the most challenging conditions. Engineered for complete protection against water and dust, this IP68-rated plug ensures a secure and waterproof installation, making it the go-to choice for outdoor power tools, industrial machinery, and permanent outdoor wiring.

Advantages

Pressure-watertight construction rated IP68 ensures full submersion resistance; durable polyamide housing withstands harsh environments; nickel-plated brass contacts offer corrosion resistance and low contact resistance; screw terminals enable secure and straightforward wiring; integrated cable gland with strain relief provides stress-free connections for cables from 6 mm to 13 mm.

Suitable for

• Outdoor and garden electrical equipment
• Industrial installations where moisture, dust, or splashing is present
• Camping, caravan, and marine applications
• High-pressure cleaning environments

Key specifications

• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Poles: 2P+E
• Connector type: Schuko (CEE 7/7)
• Ingress protection: IP68
• Cable diameter range: 6 – 13 mm
• Housing material: Polyamide (PA)
• Contact material: Nickel-plated brass
• Standards: DIN VDE 0620-1, IEC 60884-1
• Operating temperature: -25°C to +40°C
• Glow wire test: 850°C

Recommendations

Always ensure proper wiring and tighten the cable gland to preserve the IP68 rating. Use with compatible flexible rubber cables such as H07RN-F for optimal performance and safety.
