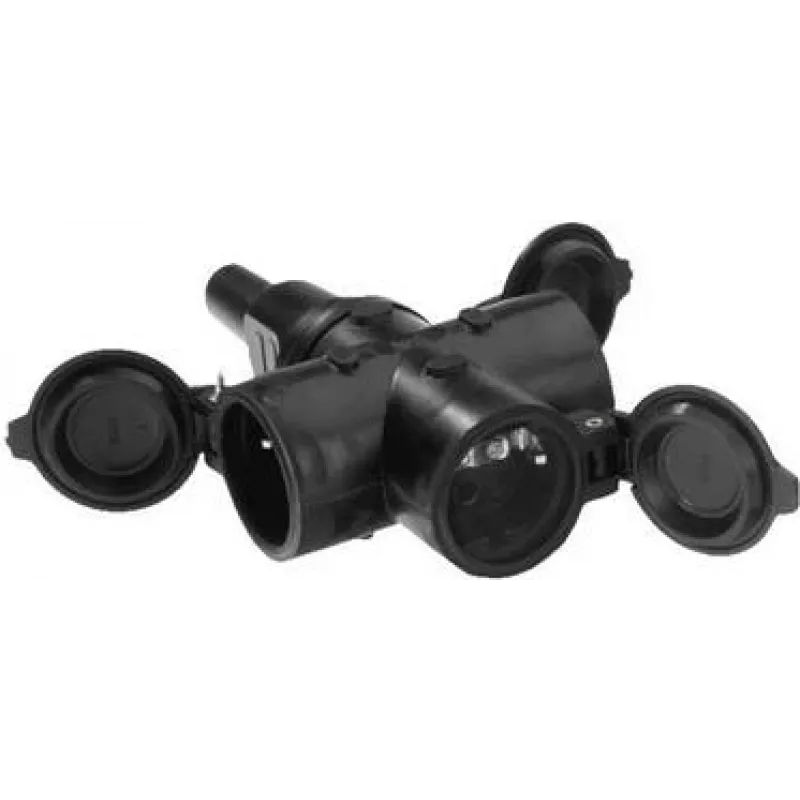

Tomada fêmea Bachmann 913.170, 16 A

Bachmann 913.170 electrical socket coupler 16 A is a robust industrial-grade connector designed for permanent outdoor use and construction sites. It features a hinged lid with a hanger, a standardised snap latch and kink protection, and a solid rubber insert with earthing contact for mounting on cables up to H07RN-F 3G 2.50 mm².

Advantages

The coupler provides reliable earthing via an integrated contact and secure cable clamping using a solid rubber insert. Its hinged lid and hanger protect the socket from dirt and mechanical damage while allowing easy handling on-site. The standard snap latch ensures consistent mating and the kink protection prolongs cable life. It is rated for a wide temperature range from -40 °C to 70 °C for use in varied outdoor conditions.

Suitable for

• Temporary or permanent outdoor power connections
• Construction site electrical distribution
• Industrial installations requiring a sturdy 16 A coupler

Key specifications

• Model: Bachmann 913.170
• Current rating: 16 A
• Cable compatibility: up to H07RN-F 3G 2.50 mm²
• Temperature range: -40 °C to 70 °C
• Features: hinged lid with hanger, solid rubber insert with earthing contact, snap latch, kink protection, side fitting and screw terminal block
• Intended use: outdoor and construction site applications

How to use

Select a suitable H07RN-F 3G 2.50 mm² cable and strip the conductors according to local installation standards. Insert the cable into the coupler so the solid rubber insert seats correctly and make the earthing connection to the integrated contact. Secure the cable with the screw terminal block and close the hinged lid; ensure the snap latch engages. Mount or hang the coupler as required and check connections before energising.

Recommendations

Verify compatibility with local wiring codes and ensure connections are tightened to recommended torque values. Regularly inspect the rubber insert and lid for wear or damage, especially after heavy use on construction sites. Do not exceed the specified current rating and avoid exposure to chemicals or sharp objects that could damage the cable or housing.
