Fichas de rede DSIT SFTP RJ45 CAT6a para condutor multifilar (condutor maciço) - 10 unid.

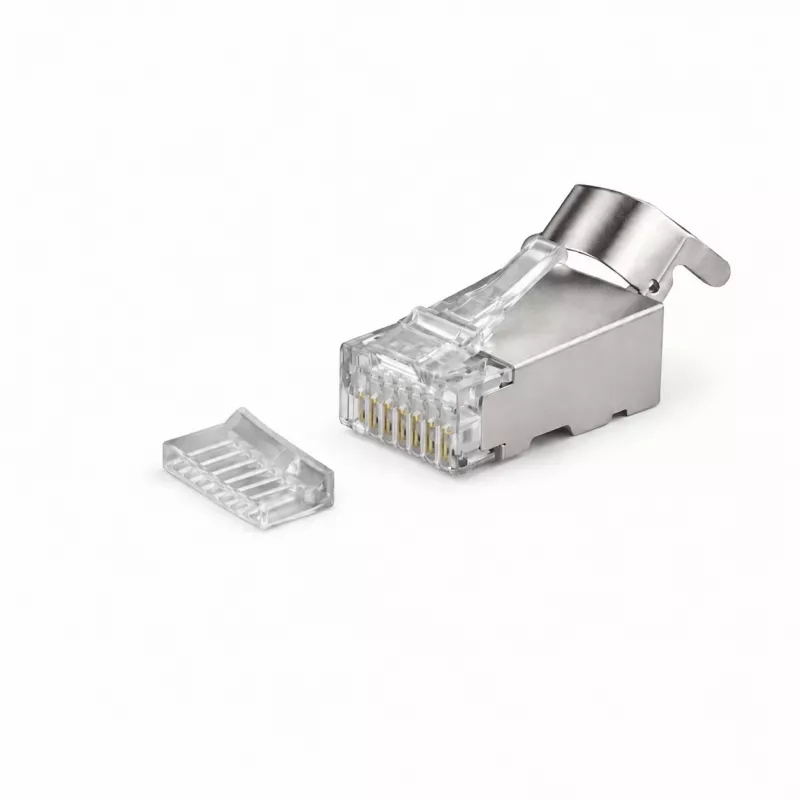

When terminating solid-core Cat6a cabling in high-density patch panels or wall outlets, network installers need a connector that preserves signal integrity up to 500 MHz. The DSIT SFTP RJ45 CAT6a plug delivers exactly that: a shielded, foil-wrapped design with gold-plated contacts, engineered for 10 Gigabit Ethernet performance on solid conductors. Each pack contains 10 crimp-on connectors, ready for T568A or T568B wiring schemes.

Key specifications

• Connector type: RJ45 (8P8C) male plug
• Performance category: CAT6a (Category 6a)
• Shielding: SFTP (Shielded Foiled Twisted Pair)
• Conductor compatibility: Solid core conductors (AWG 23-26)
• Data rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Contact plating: Gold-plated, 50 µm
• Housing material: Polycarbonate (PC), transparent
• Termination: Crimp-on
• Cable jacket diameter: 6.0 - 8.0 mm
• Pin configuration: T568A/T568B
• Durability: >750 mating cycles
• Operating temperature: -10°C to +60°C
• Insulation resistance: >500 MΩ
• Dielectric withstanding voltage: 1000V AC RMS
• Standards: ISO/IEC 11801, TIA/EIA-568-C.2

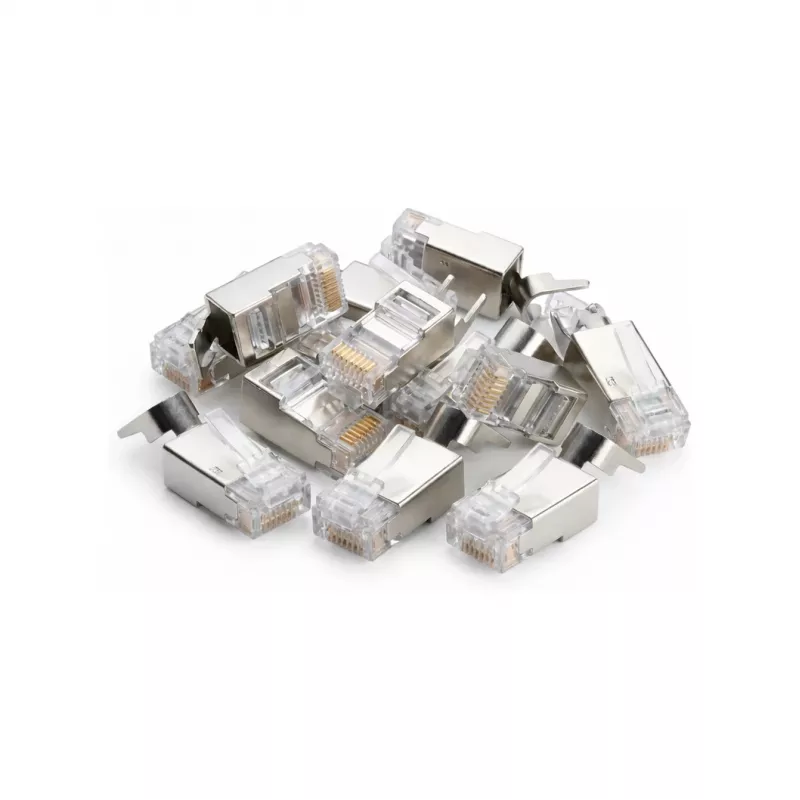

• Pack quantity: 10 pieces

Why choose it

The SFTP shielding combines an overall foil wrap with individual pair shielding, drastically reducing alien crosstalk and EMI in dense cable bundles. Gold-plated contacts resist corrosion and maintain low contact resistance over hundreds of insertions, ensuring reliable 10GbE links even in challenging environments. The transparent polycarbonate housing allows visual inspection of wire placement before crimping, reducing installation errors.

Ideal use cases

• Structured cabling systems in data centers and server rooms
• High-density patch panels and wall outlets
• 10GBASE-T network upgrades requiring Cat6a performance
• Professional installations where signal integrity is critical

Good to know

These connectors are designed specifically for solid core conductors (AWG 23-26) and are not suitable for stranded wire. They comply with ISO/IEC 11801 and TIA/EIA-568-C.2 standards, ensuring compatibility with industry requirements. Each pack includes 10 connectors, providing a cost-effective solution for bulk terminations.
