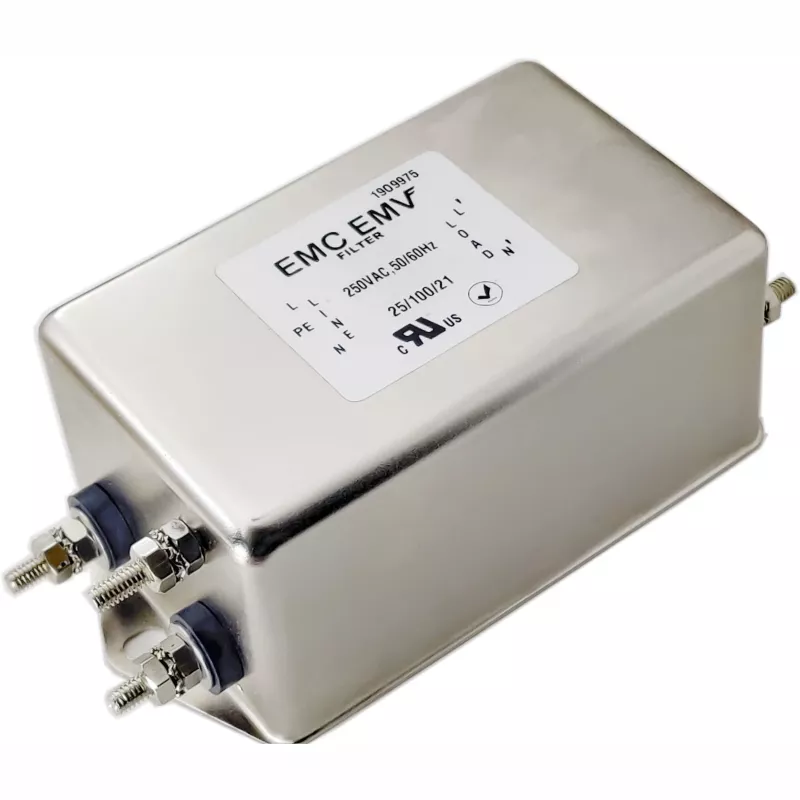

Filtro EMC monofásico Akyga EN2020-20-S, 20 A, 120-250 V AC, 50/60 Hz, conectores de parafuso M4

The Akyga EN2020-20-S is a single-phase EMI filter designed to suppress electromagnetic interference in electrical and electronic equipment. It is a high-performance component that helps minimise the negative impact of interference on equipment operation, making it suitable for professional and industrial applications.

Key features

• Single-phase EMI filter
• Maximum current: 20 A
• Input voltage: 120 - 250 V AC, 50/60 Hz
• Leakage current: 0.43 mA @ 120 V AC 60 Hz, 0.74 mA @ 250 V AC 50 Hz
• 2 poles
• M4 screw terminals
• Metal housing
• Wide operating temperature range: -25 to +100 °C
• CE, RoHS, REACH compliant

Specifications

• Brand: AKYGA
• MPN: EN2020-20-S
• Type: Single-phase EMI filter
• Maximum current: 20 A
• Input voltage: 120 - 250 V AC, 50/60 Hz
• Leakage current: 0.43 mA @ 120 V AC 60 Hz, 0.74 mA @ 250 V AC 50 Hz
• Number of poles: 2
• Terminals: M4 screw terminals
• Material: Metal
• Operating temperature: -25 - 100 °C
• Dimensions (L x W x H): 95 x 52 x 29 mm
• Weight: 0.15 kg
• Compliance certificates: CE, RoHS, REACH
