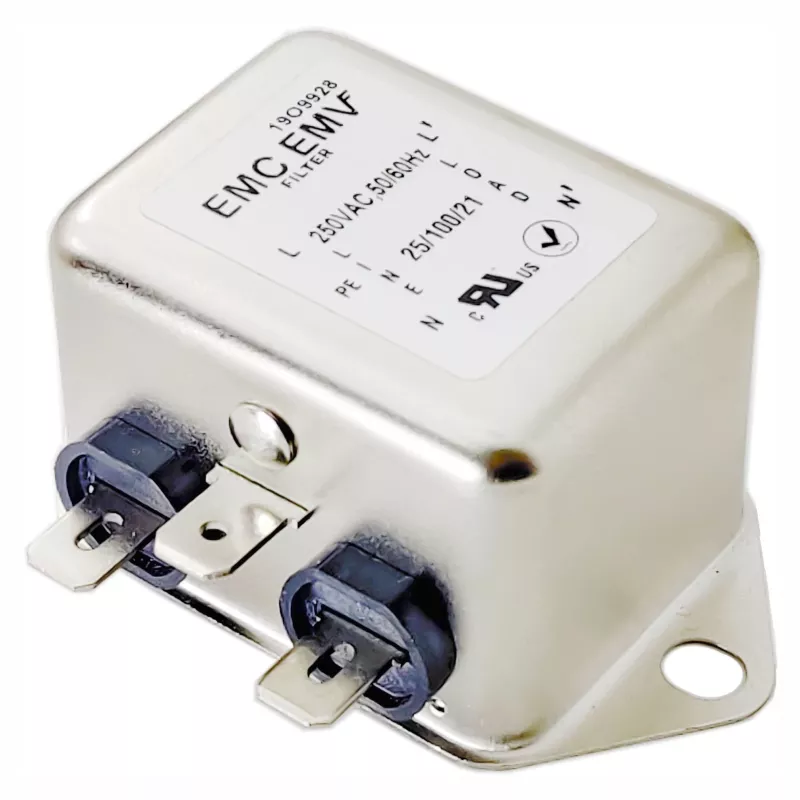

Filtro EMC monofásico Akyga EN2030-12-F, 12 A, 120-250 V AC, 50/60 Hz, ficha plana 6,3 mm

The Akyga EN2030-12-F is a single-phase EMI filter designed for equipment requiring a stable power supply at higher current loads. It supports up to 12 A and is suitable for industrial equipment, automation systems, and audio/video installations. The filter effectively suppresses interference both emitted by the device and arriving from outside, ensuring signal purity and operational reliability.

Key features

• Single-phase EMI filter
• Maximum current: 12 A
• Input voltage: 120 - 250 V AC, 50/60 Hz
• 6.3 mm tab connectors
• 2 poles
• Metal housing
• Leakage current: 0.90 mA @ 120 V AC 60 Hz, 1.57 mA @ 250 V AC 50 Hz
• Operating temperature: -25 - 100 °C
• Compliance certificates: CE, RoHS, REACH

Specifications

• Brand: Akyga
• MPN: EN2030-12-F
• Type: Single-phase EMI filter
• Material: Metal
• Width: 52 mm
• Height: 29 mm
• Depth: 86 mm
