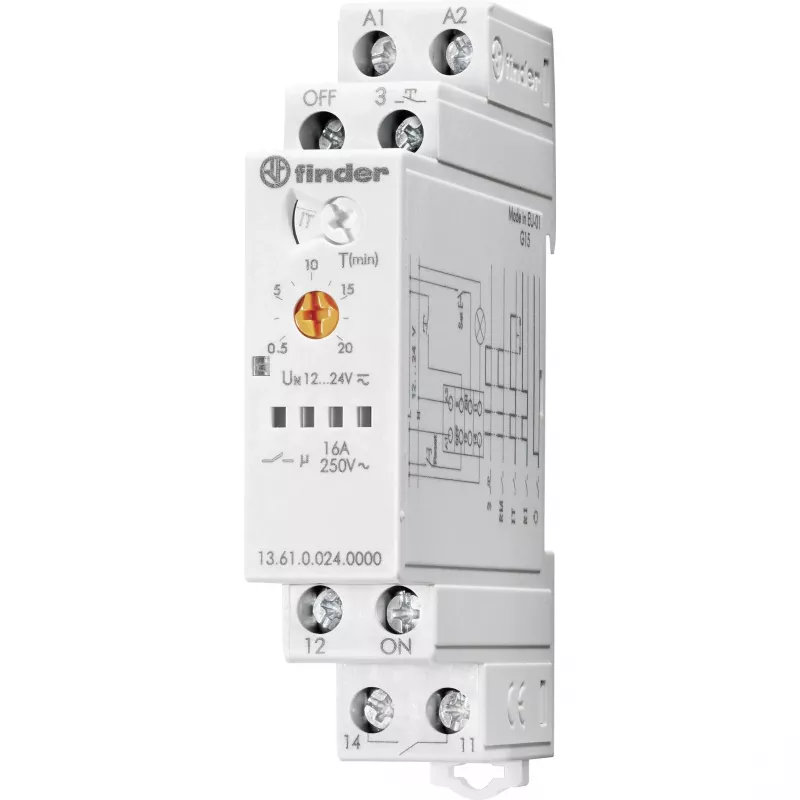

Finder 13.61.0.024.0000 Relé de impulso, 1 comutador, 16 A, bobina 24 V AC/DC, calha DIN

In electrical installations, lighting circuits often need to be controlled from multiple pushbuttons without complex wiring. The Finder 13.61.0.024.0000 impulse relay solves this by latching its contacts with each pulse, so a single pushbutton press toggles the load on or off. This bistable operation eliminates the need for continuous coil power, reducing energy consumption and heat.

Who is it for

Electricians and panel builders who install lighting control in residential, commercial, or industrial buildings. It suits anyone needing a compact DIN rail mounted relay that can be switched from several locations using momentary pushbuttons.

Main features

• 1 changeover contact (SPDT) rated 16 A / 250 V AC
• Coil voltage 24 V AC/DC, bistable latching operation
• Mounts on 35 mm DIN rail (EN 60715), occupies 1 module (17.5 mm width)
• Screw terminals for secure wiring
• Mechanical life 300,000 operations, electrical life 50,000 operations at rated load
• Operating temperature range -40 to +40 °C

Specifications

• Relay type: Impulse relay (latching)
• Contact configuration: 1 CO (SPDT)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Coil voltage: 24 V AC/DC
• Max switching power (AC1): 4000 VA
• Max switching voltage: 400 V AC
• Dielectric strength coil-contacts: 4 kV AC
• Protection degree: IP20 terminals, IP40 front

Tips

Use this relay with illuminated pushbuttons by connecting the indicator lamp in parallel with the coil. For mixed AC/DC supplies, ensure the coil voltage matches the control circuit. The relay is not suitable for DC loads above 30 V without derating.
