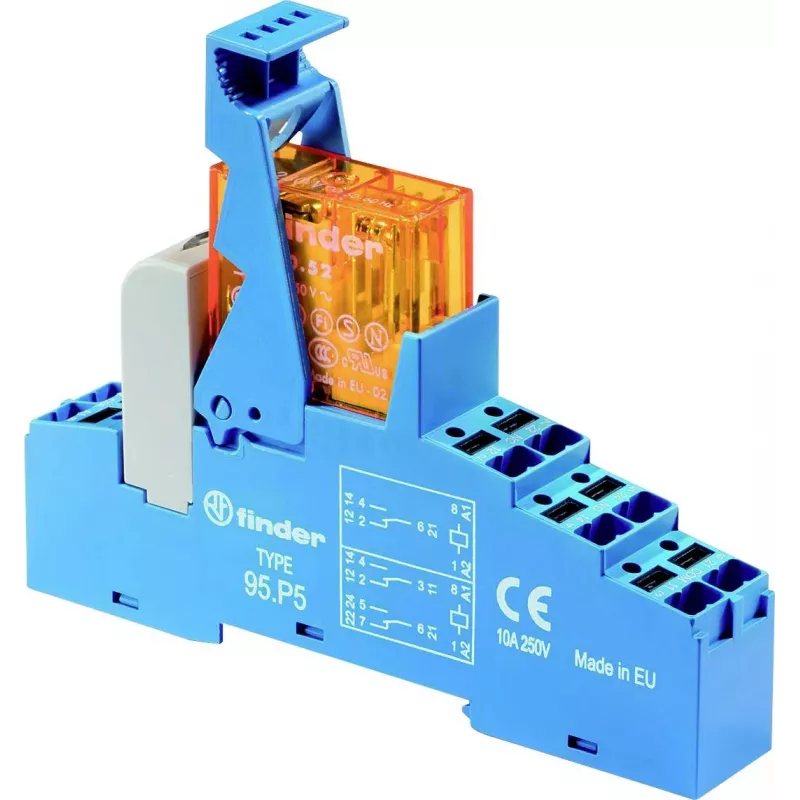

Finder 48.P6.9.024.4050 Módulo de relé de interface, bobina 24 V DC, contacto 16 A SPDT, montagem em calha DIN, indicador LED

With a 6 kV dielectric strength between coil and contacts, the Finder 48.P6.9.024.4050 interface relay module delivers robust isolation for industrial control systems. This 24 V DC relay handles up to 16 A and features a single changeover contact, making it a reliable choice for switching loads in automation panels.

Overview

The Finder 48.P6.9.024.4050 is part of the Series 48.P6, designed for DIN rail mounting with screw terminals. It integrates a freewheeling diode and an LED status indicator, simplifying installation and diagnostics. The contact material is silver nickel (AgNi), offering good conductivity and durability.

What stands out

• High isolation: 6 kV impulse withstand between coil and contacts
• 16 A switching capability with 1 changeover (SPDT) contact
• Integrated freewheeling diode for coil transient suppression
• LED indicator for quick status check
• Flux-proof construction (RT I) for harsh environments

Technical details

• Coil voltage: 24 V DC
• Rated switching current: 16 A
• Contact configuration: 1 changeover (SPDT)
• Rated switching voltage: 250 V AC
• Contact material: AgNi
• Coil power: 0.6 W
• Dielectric strength coil-contact: 6 kV (1.2/50 µs)
• Dielectric strength open contacts: 1000 V AC
• Operating temperature: -40 to +70 °C
• Mounting: DIN rail 35 mm
• Terminals: screw
• Protection degree: RT I (flux proof)
• Mechanical life: 10 x 10^6 operations
• Electrical life: 100 x 10^3 operations at rated load

Our verdict

A compact and reliable interface relay for 24 V DC control circuits, offering high switching capacity and clear status indication. Ideal for panel builders and machine builders needing a dependable SPDT relay with integrated protection.
