Finder 55.12.9.012.0000 relé industrial, bobina 12 V DC, 2 contactos reversíveis, 10 A

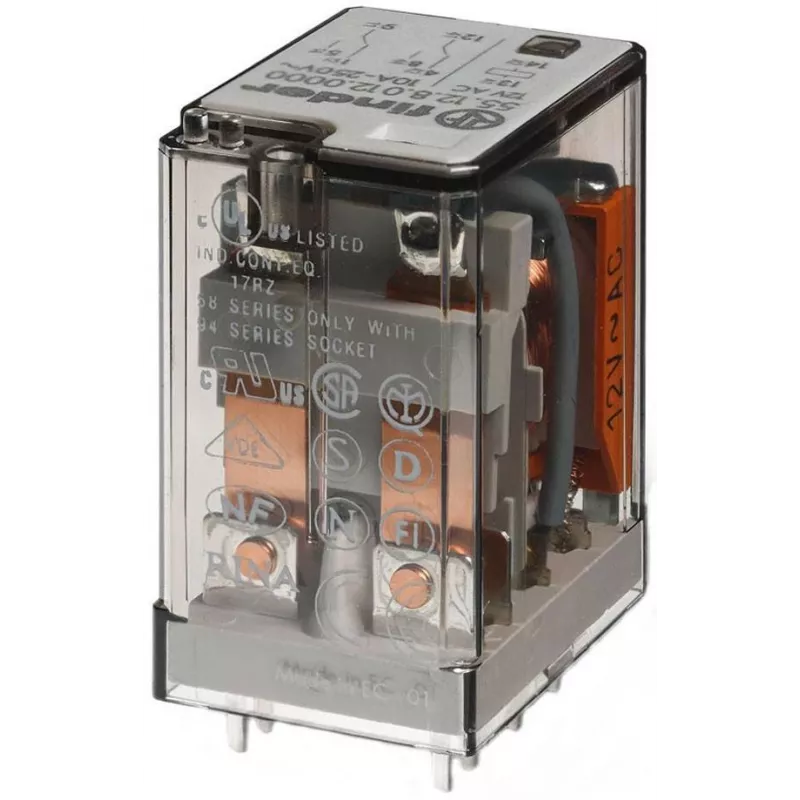

The Finder 55.12.9.012.0000 is a plug-in industrial relay with a 12 V DC coil and two changeover contacts, rated for 10 A at 250 V AC. Its 140 Ω coil consumes just 1 W, making it suitable for control panels where low coil power is required. The relay features AgNi contacts and Faston 2.8 x 0.5 mm terminals, designed for socket mounting.

Highlights

• 2 changeover contacts (DPDT)
• 12 V DC coil, 140 Ω resistance, 1 W power
• 10 A rated current at 250 V AC
• Plug-in mounting with Faston terminals
• Operating temperature: -40 to +70 °C

Full specifications

• Coil voltage: 12 V DC
• Coil resistance: 140 Ω
• Coil power: 1 W
• Contact configuration: 2 changeover (2 CO)
• Rated contact current: 10 A
• Rated contact voltage: 250 V AC
• Contact material: AgNi
• Mounting type: Plug-in
• Terminal type: Faston 2.8 x 0.5 mm
• Dielectric strength (coil-contact): 2500 V AC
• Operating temperature: -40 to +70 °C
• Protection degree: RT I (flux proof)
• Mechanical life: 10 x 10^6 operations
• Electrical life: 100 x 10^3 operations at 10 A / 250 V AC

Final note

This relay is part of the Finder 55 series and is intended for industrial applications requiring reliable switching with a low-power DC coil.
