Finder 7F.03.0.000.2000 Filtro de saída G3 155 x 155 x 22,6 mm

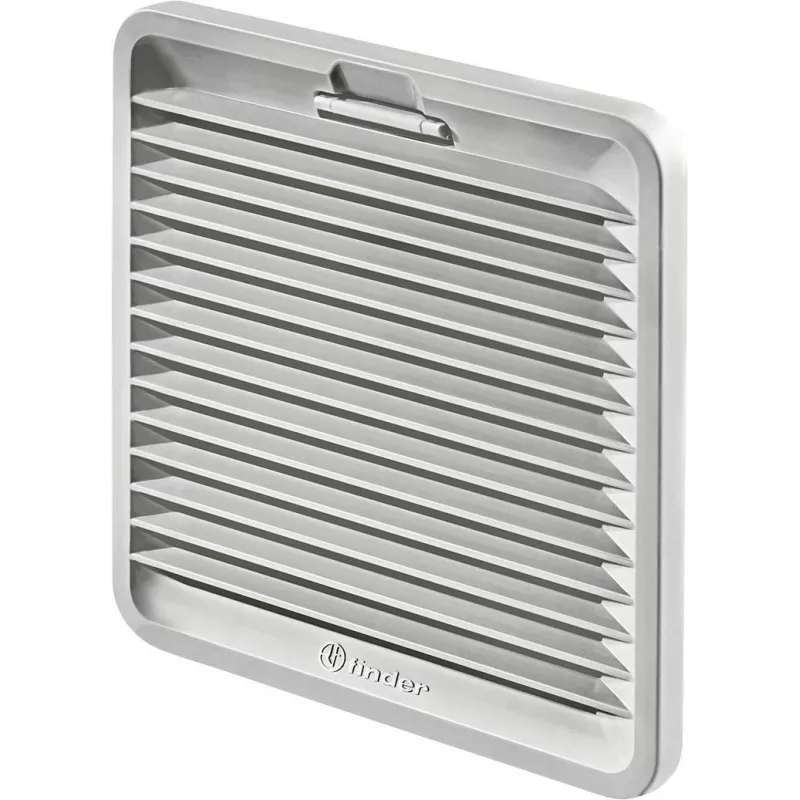

The Finder 7F.03.0.000.2000 is an outlet filter designed to effectively remove airborne particles from exhaust air in electrical enclosures. Its G3 filtration class ensures reliable capture of coarse dust, protecting sensitive equipment and maintaining optimal airflow.

Advantages

This filter features a clip-on mounting system for quick installation without tools. The ABS housing in light grey (RAL 7035) provides durability and a clean appearance. The synthetic fiber filter medium offers low airflow resistance while maintaining high dust-holding capacity.

Suitable for

• Electrical enclosures requiring exhaust air filtration
• Finder fan filter units (7F.01, 7F.02 series)
• Applications needing IP54 protection against dust and splashing water

Key specifications

• Filter class: G3
• Dimensions (W x H x D): 155 x 155 x 22.6 mm
• Cut-out dimensions: 124 x 124 mm
• Housing material: ABS plastic
• Colour: Light grey (RAL 7035)
• Protection rating: IP54
• Operating temperature: -10 to +55 °C
• Flammability rating: UL 94 V-0

Recommendations

Replace the filter medium regularly to maintain airflow and filtration efficiency. Ensure the mounting surface is clean and flat for optimal clip-on retention.
