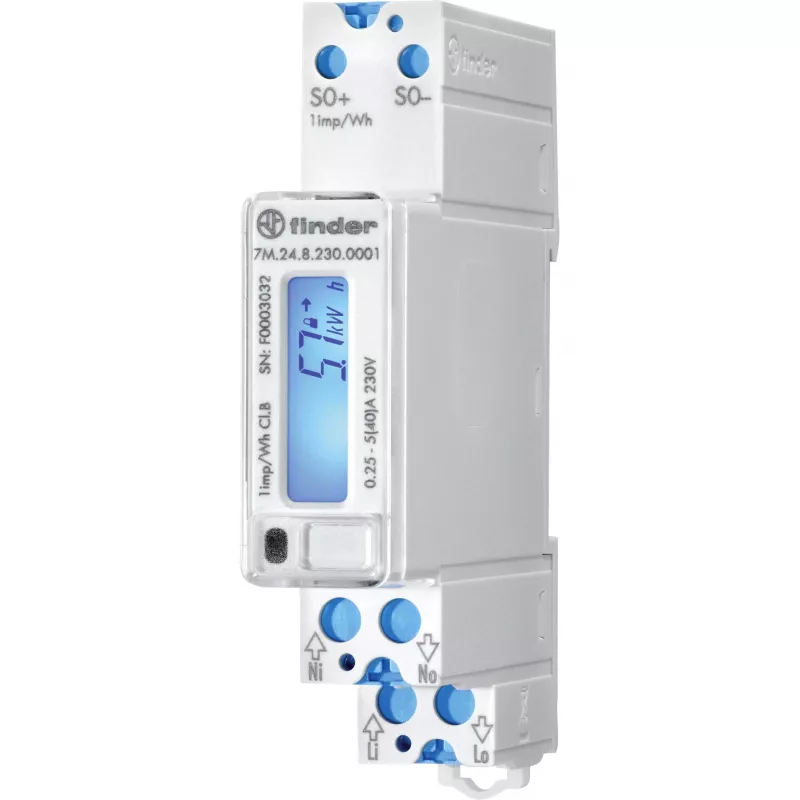

Finder 7M.24.8.230.0001 Contador de energia digital monofásico, 230 V AC, 5(40) A, classe 1, LCD, saída de impulso S0, calha DIN, 1 módulo, não conforme MID

The Finder 7M.24.8.230.0001 is a digital energy meter designed for single-phase 2-wire networks, offering precise active energy measurement with a Class 1 accuracy. Unlike basic meters, it features a backlit LCD display with 6+1 digits and an S0 pulse output for remote monitoring, making it suitable for sub-metering and energy management applications.

Highlights

• Single-phase 2-wire connection for 230 V AC networks
• Rated current 5 A, maximum 40 A, minimum 0.25 A
• Class 1 accuracy for active energy (kWh)
• Backlit LCD display with 6+1 digits (up to 999999.9 kWh)
• S0 pulse output (1000 imp/kWh) for integration with building management systems
• Compact DIN rail mounting, only 1 module wide (17.5 mm)
• Low power consumption: less than 0.4 W / 8 VA
• Operating temperature range: -25°C to +55°C
• Not MID compliant

In daily use

This meter is ideal for monitoring energy consumption in residential, commercial, or industrial sub-metering applications. Its S0 output allows connection to data loggers or PLCs for automated reading. The backlit display ensures readability even in low-light conditions, and the compact DIN rail design saves space in distribution boards.

Full specifications

• Meter type: Digital energy meter
• Phase: Single-phase (2-wire)
• Rated voltage (Un): 230 V AC
• Rated current (In): 5 A
• Maximum current (Imax): 40 A
• Minimum current (Imin): 0.25 A
• Starting current (Ist): 20 mA
• Frequency: 50 Hz
• Accuracy class: Class 1 (active energy)
• MID compliant: No
• Display type: LCD with backlight
• Display digits: 6+1 (999999.9 kWh)
• Pulse output: S0 interface (1000 imp/kWh)
• Mounting type: DIN rail (EN 60715)
• Module width: 1 module (17.5 mm)
• Power consumption: < 0.4 W / 8 VA
• Operating temperature: -25°C to +55°C
• Protection degree (front): IP50
• Protection degree (terminals): IP20
• Measurement type: Active energy (kWh)

Final note

The Finder 7M.24.8.230.0001 combines accuracy, compactness, and connectivity, making it a reliable choice for energy monitoring in modern installations.
