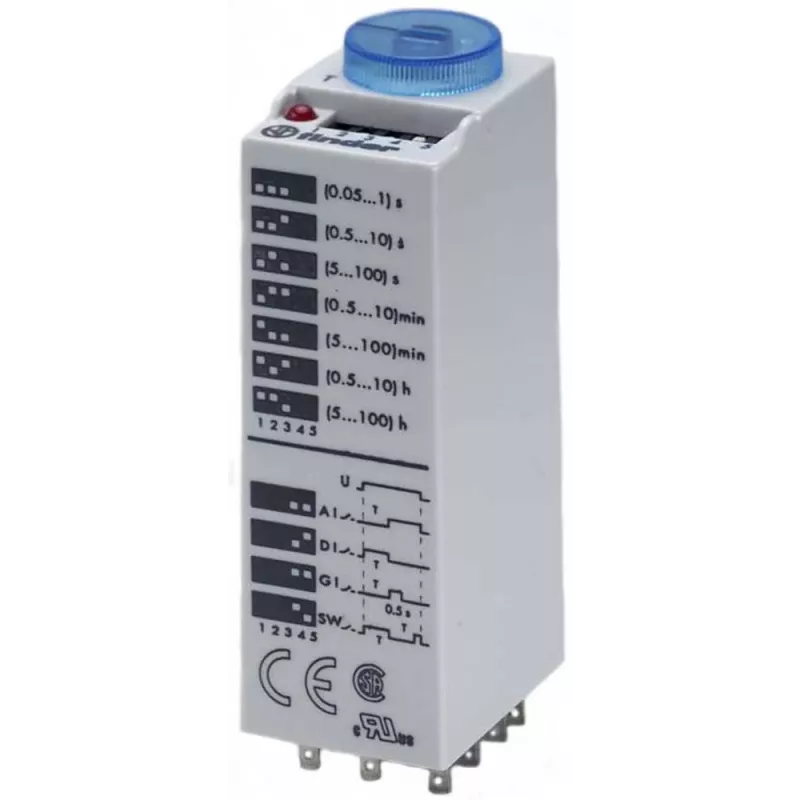

Finder 85.03.0.125.0000 Relé temporizador multifunções, 1 CO 16A, 12-24V AC/DC, 0,05s-100h, calha DIN

The Finder 85.03.0.125.0000 sets itself apart with 18 selectable timing functions in a compact 22.5 mm DIN-rail housing, giving panel builders a single relay that covers delay-on, delay-off, interval, pulse and symmetrical flasher modes without stocking multiple part numbers. The 1 changeover contact is rated for 16 A at 250 V AC, so it can switch contactors, valves and small motors directly, while the wide 12-24 V AC/DC supply accepts both control voltages from one unit.

Highlights

• 18 multi-function and mono-function timing modes, selected by rotary switches on the front face
• Wide time range from 0.05 seconds to 100 hours, divided into seven decade steps
• 1 changeover (SPDT) output with silver-nickel contacts rated 16 A / 250 V AC
• Dual supply voltage 12-24 V AC/DC for flexible panel integration
• LED indication for supply and output status

In daily use

Set the function and time range with the two rotary selectors, wire the supply and load to the screw terminals, and the relay is ready. The LED shows when the output contact is energised, simplifying commissioning and fault-finding. The 22.5 mm housing snaps onto a standard 35 mm DIN rail and occupies only one module width in the enclosure.

Full specifications

• Relay type: Multi-function time relay
• Number of functions: 18
• Output configuration: 1 changeover (SPDT)
• Contact material: AgNi (silver nickel)
• Rated contact current: 16 A
• Rated contact voltage: 250 V AC
• Supply voltage: 12-24 V AC/DC
• Time range: 0.05 s to 100 h
• Mounting: 35 mm DIN rail
• Operating temperature: -20 to +70 °C
• Protection rating: IP20
• Terminal type: Screw terminals
• Power consumption: 2.5 VA (AC) / 1.5 W (DC)
• Indicators: LED for supply and output status
• Adjustment method: Rotary switches
• Dielectric strength coil/contact: 2 kV AC
• Mechanical life: 10 x 10⁶ operations
• Electrical life at rated load: 100 x 10³ operations
• Housing width: 22.5 mm

Final note

A single multi-function timer that covers most industrial timing tasks, reducing inventory and simplifying panel design.
