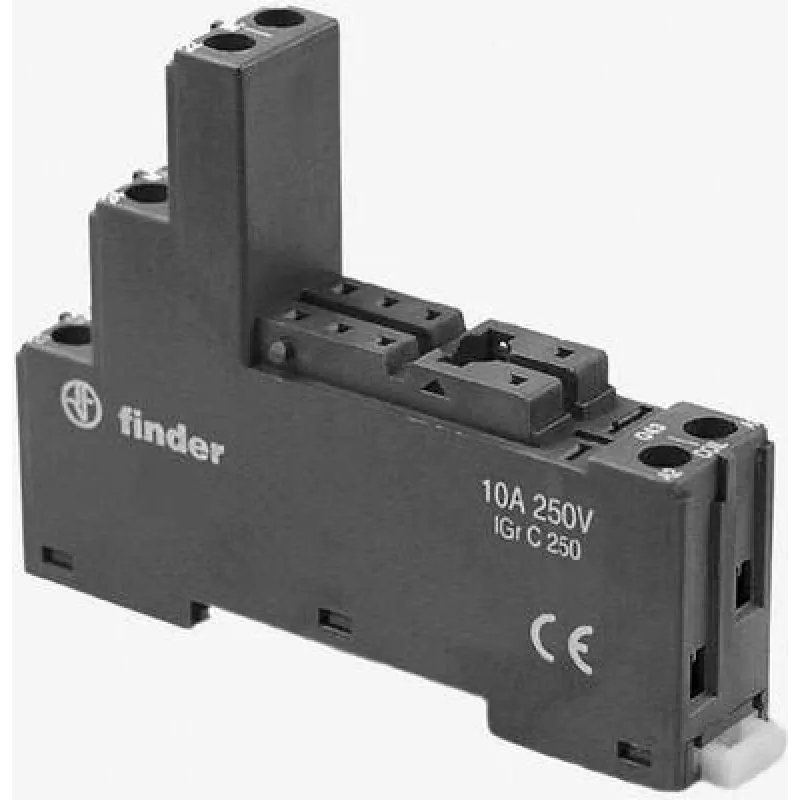

Finder 95.050 base com terminais de parafuso para relés das séries 40/44/51/52/61, montagem em calha DIN/painel, 8 pinos, 10 A, 250 V AC, preto

In industrial control panels and building automation systems, technicians often need a reliable connection base for plug-in relays. The Finder 95.050 socket provides a secure mounting and wiring interface for Finder 40.51, 40.52, 40.61, 44.52, 44.62, 51.51, 51.52, 52.51, 52.52, and 61.52 series relays. Its screw terminals accept solid wires up to 2.5 mm² and stranded wires up to 1.5 mm², with a stripping length of 8 mm and a recommended tightening torque of 0.5 Nm. The socket supports both DIN rail and panel mounting, making it versatile for various enclosure layouts.

Key specifications

• Product type: Relay socket
• Number of pins: 8
• Terminal type: Screw terminals
• Mounting type: DIN rail / panel mount
• Rated current: 10 A
• Rated voltage: 250 V AC
• Dielectric strength (coil-contacts): 6 kV (1.2/50 µs)
• Protection category: IP20
• Ambient temperature range: -40 to +70 °C
• Housing material: PA (polyamide)
• Approvals: CE, cURus
• Compatible accessories: Finder 99.02, 99.50 modules and jumper links

Why choose it

This socket is engineered for durability and safety, with a high dielectric strength that protects against voltage surges. The PA housing withstands harsh industrial environments, and the wide temperature range ensures reliable operation in extreme conditions. The screw terminals provide a secure, vibration-resistant connection, reducing maintenance needs. Its compatibility with a wide range of Finder relays makes it a flexible choice for various applications.

Ideal use cases

• Industrial control panels for machine automation
• Building automation systems for lighting and HVAC control
• Power distribution and monitoring equipment
• Railway signaling and infrastructure
• Renewable energy systems such as solar inverters

Good to know

The socket is designed for use with Finder's 99.02 and 99.50 modules, allowing easy expansion and jumper link integration. Always ensure proper torque on screw terminals to maintain connection integrity. For DIN rail mounting, use a standard 35 mm rail. The IP20 rating means it is intended for installation inside enclosures, not exposed to moisture or dust.
