Finder Mini-contator industrial 5,5kW 24V AC bobina 4NO 12A (6K.04.8.024.4312)

Rated for 5.5 kW at 400 V AC-3, this 4-pole mini contactor delivers 12 A operational current in a compact DIN-rail mountable design.

Overview

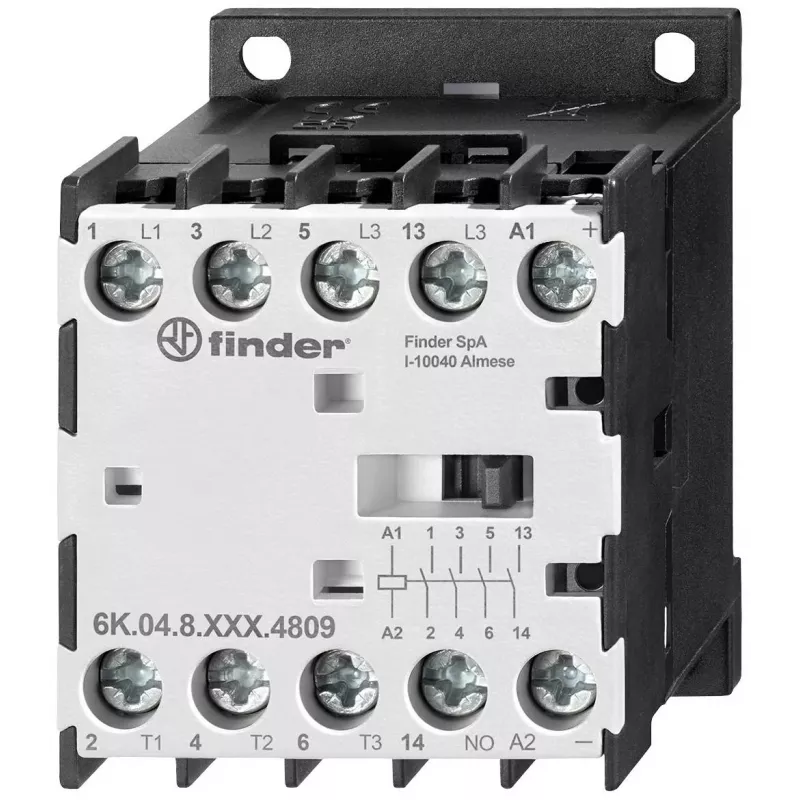

The Finder 6K.04.8.024.4312 is a 4-pole mini industrial contactor with 4 normally open contacts, designed for switching motors up to 5.5 kW (AC-3, 400 V). Its 24 V AC coil ensures reliable operation in control circuits. The contactor features a rated insulation voltage of 690 V and impulse withstand voltage of 6 kV, making it suitable for demanding industrial environments.

What stands out

• High mechanical durability: 10 million operations
• Electrical life up to 1 million operations at AC-3
• Wide operating temperature range from -25°C to +60°C
• IP20 protection for panel mounting

Technical details

• Number of poles: 4
• Main contact configuration: 4 NO
• Rated operational current (AC-3, 400 V): 12 A
• Coil voltage: 24 V AC
• Mounting: DIN rail or screw
• Maximum switching frequency: 3000 cycles/hour

Our verdict

A robust and compact contactor for motor control applications, offering high endurance and reliable switching in a space-saving design.
