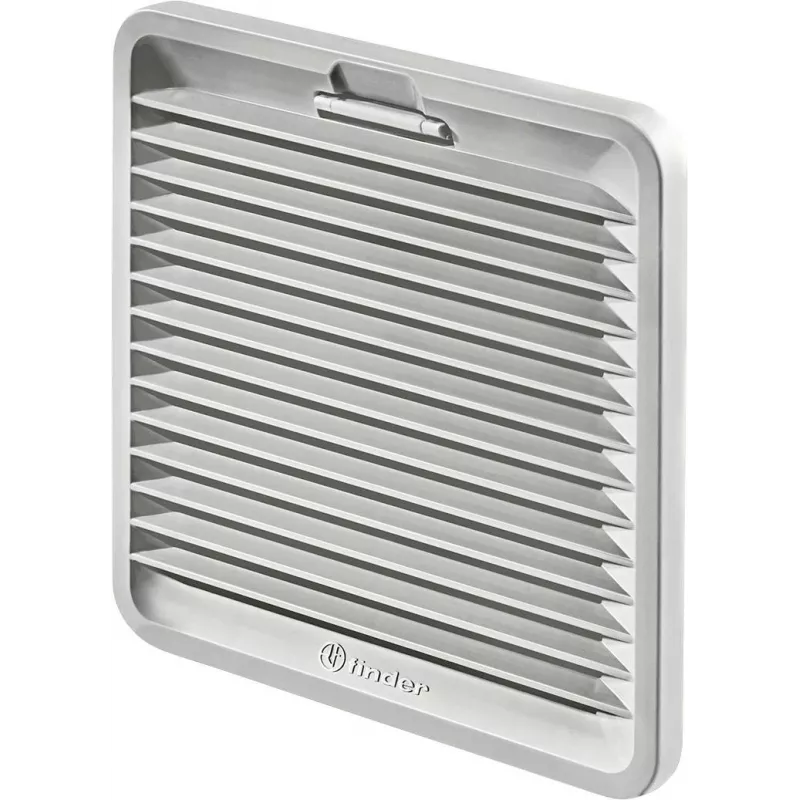

Finder série 7F filtro de saída, tipo 3, G3, 209 x 209 x 22,5 mm, cinzento 7F0300003000

Dust and airborne particles can clog ventilation openings, causing overheating and premature failure of electrical enclosures. The Finder 7F outlet filter provides a reliable barrier that keeps contaminants out while allowing air to exit, protecting sensitive equipment and extending its service life.

Who is it for

Panel builders, electrical engineers, and maintenance technicians who need to protect enclosures in industrial or commercial environments. This filter is suitable for use in control cabinets, HVAC systems, and other enclosures where clean airflow is essential.

Main features

• Type 3 outlet filter with G3 filtration class for effective particle retention.
• Compact dimensions of 209 x 209 x 22.5 mm fit standard cut-outs of 176 x 176 mm.
• Snap-in mounting allows quick and tool-free installation.
• Frame made of ABS plastic in grey (RAL 7035) for durability and a professional look.
• Synthetic fiber filter media provides reliable filtration performance.
• Operating temperature range from -10 to +55 °C for versatile use.

Specifications

• Product Type: Outlet Filter
• Series: 7F Series
• Filter Type: Type 3
• Filter Class: G3
• External Dimensions (W x H x D): 209 x 209 x 22.5 mm
• Mounting Cut-out Dimensions (W x H): 176 x 176 mm
• Material (Frame): ABS
• Material (Filter Media): Synthetic Fiber
• Color: Grey (RAL 7035)
• Protection Degree: IP54
• Operating Temperature Range: -10 to +55 °C
• Mounting Type: Snap-in
• Airflow Direction: Outlet
• Flammability Rating: UL 94 V-0
• Approvals: CE
• Quantity per Pack: 1 Piece

Tips

Regularly inspect and replace the filter media to maintain optimal airflow and protection. Ensure the mounting cut-out is precisely 176 x 176 mm for a secure fit. For environments with high dust loads, consider more frequent maintenance intervals.
