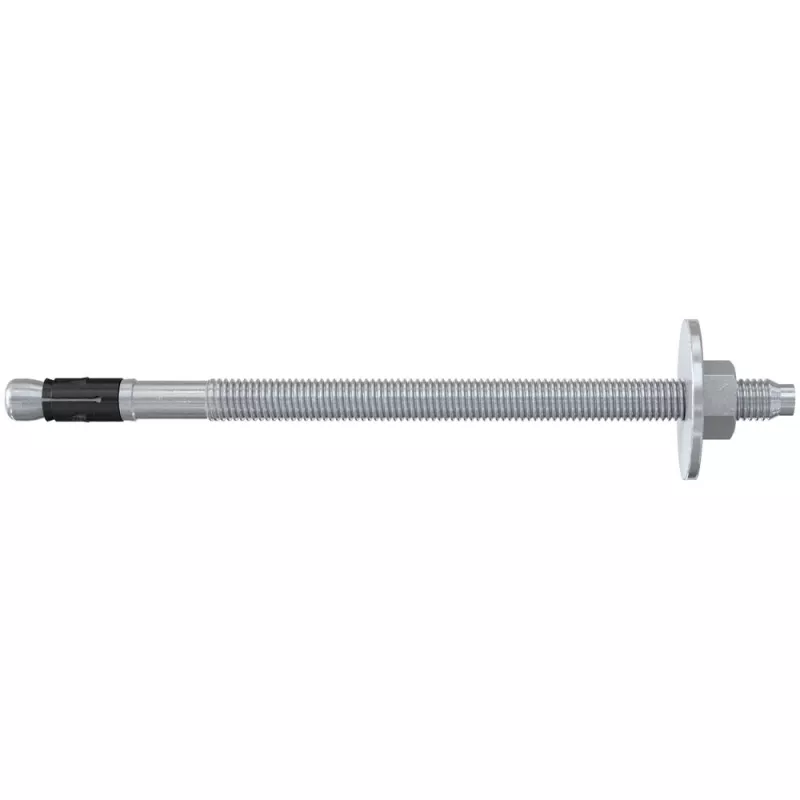

Fischer 564646 FAZ II Plus 10/10 GS Ancoragem de parafuso M10x95 aço eletrogalvanizado, pack de 50

The Fischer FAZ II Plus 10/10 GS is a heavy-duty bolt anchor engineered for secure through-fixing in cracked and non-cracked concrete. Its electro-galvanized steel body and M10 thread deliver reliable load capacity for structural applications, while the 95 mm length and 10 mm usable fixture thickness suit a wide range of anchoring tasks.

Highlights

• Approved for cracked and non-cracked concrete (C20/25 to C50/60) per ETA-20/0037
• Electro-galvanized steel (GS) for standard corrosion protection
• Through-fixing installation with hex nut head and 17 mm wrench size
• Fire resistance rating R 120 for added safety
• Pack of 50 anchors for efficient project coverage

In daily use

Designed for heavy-duty fastening, this anchor excels in structural steel connections, façade brackets, and machinery mounting. The M10 thread diameter and 10 mm drill hole ensure a precise fit, while the minimum embedment depth of 75 mm provides strong pull-out resistance. The electro-galvanized finish suits indoor and dry outdoor environments.

Full specifications

• Anchor type: Bolt anchor
• Material: Electro-galvanized steel (GS)
• Thread diameter: M10
• Drill hole diameter: 10 mm
• Anchor length: 95 mm
• Maximum fixture thickness: 10 mm
• Minimum drill hole depth: 85 mm
• Minimum embedment depth: 75 mm
• Wrench size: 17 mm
• Installation type: Through-fixing
• Approved for: Cracked and non-cracked concrete (C20/25 to C50/60)
• ETA approval: ETA-20/0037
• Fire resistance rating: R 120
• Head type: Hex nut
• Application: Heavy-duty fastening in concrete
• Corrosion protection: Standard (electro-galvanized)
• Pack quantity: 50 pieces

Final note

With its ETA approval and fire resistance, the FAZ II Plus 10/10 GS delivers dependable performance for demanding concrete anchoring tasks.
