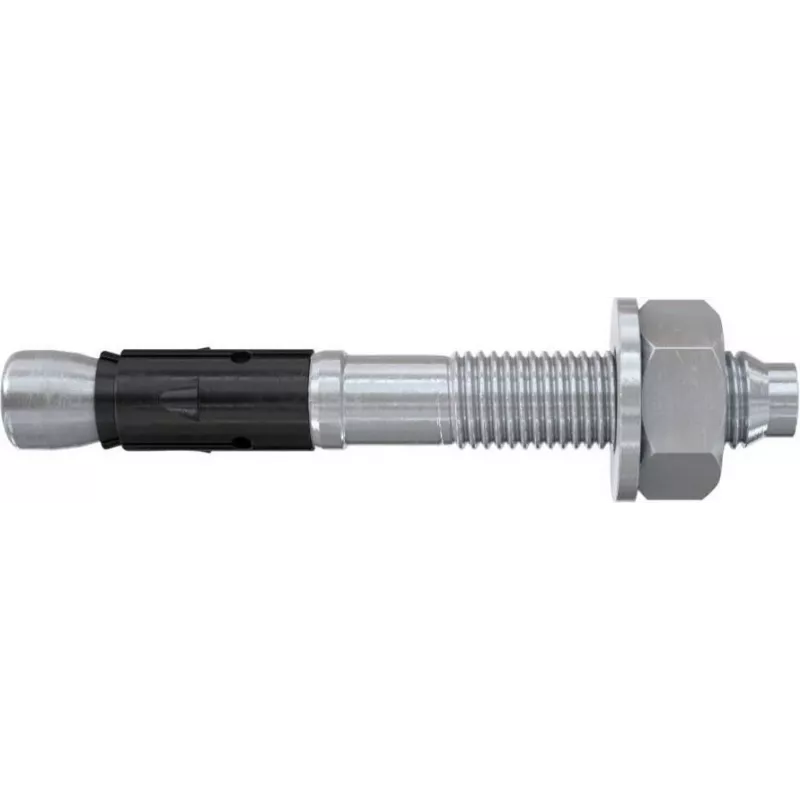

Fischer FAZ II Plus 10/10 K Ancoragem de parafuso M10, aço eletrogalvanizado, pack de 100 564672

With an effective anchorage depth of 40 mm and ETA Option 1 approval for cracked and non-cracked concrete, the Fischer FAZ II Plus 10/10 K bolt anchor delivers top-tier load capacity in a compact M10 profile. This 100-piece pack of electro-galvanized steel anchors is engineered for structural fastening where reliability is non-negotiable.

Overview

The FAZ II Plus series represents Fischer's advanced generation of bolt anchors, combining high performance with straightforward installation. Each anchor is manufactured from electro-galvanized steel, offering dependable corrosion protection for interior and dry environment applications. The M10 thread and 10 mm drill hole diameter make it compatible with standard tooling, while the 95 mm anchor length suits a wide range of base material thicknesses.

What stands out

• Approved for cracked and non-cracked concrete C20/25 to C50/60 under ETA Option 1, ensuring maximum design flexibility.
• Fire resistance rated R 30 to R 120, providing safety in fire-critical applications.
• Through-fixing installation with a 17 mm wrench size allows quick and secure setting.
• Optimized geometry delivers high load values with minimal edge and spacing distances (50 mm).
• Bulk pack of 100 anchors reduces per-unit cost for large projects.

Technical details

• Anchor type: Bolt anchor (expansion anchor)
• Series: FAZ II Plus
• Nominal diameter: M10
• Drill hole diameter: 10 mm
• Anchor length: 95 mm
• Effective anchorage depth: 40 mm
• Max. usable length (clamping thickness): 10 mm
• Thread length: 50 mm
• Minimum drill hole depth: 95 mm
• Minimum base material thickness: 100 mm
• Minimum edge distance: 50 mm
• Minimum spacing: 50 mm
• Material: Electro-galvanized steel
• Wrench size: 17 mm
• Pack quantity: 100 pieces

Our verdict

The FAZ II Plus 10/10 K is a workhorse anchor for professional concrete fastening. Its ETA approval and fire resistance make it suitable for demanding structural tasks, while the bulk packaging offers excellent value for contractors. If you need a reliable, code-compliant bolt anchor, this is a top choice.
