Fischer Thermax 10/120 haste roscada de aço galvanizado com nylon 10 mm

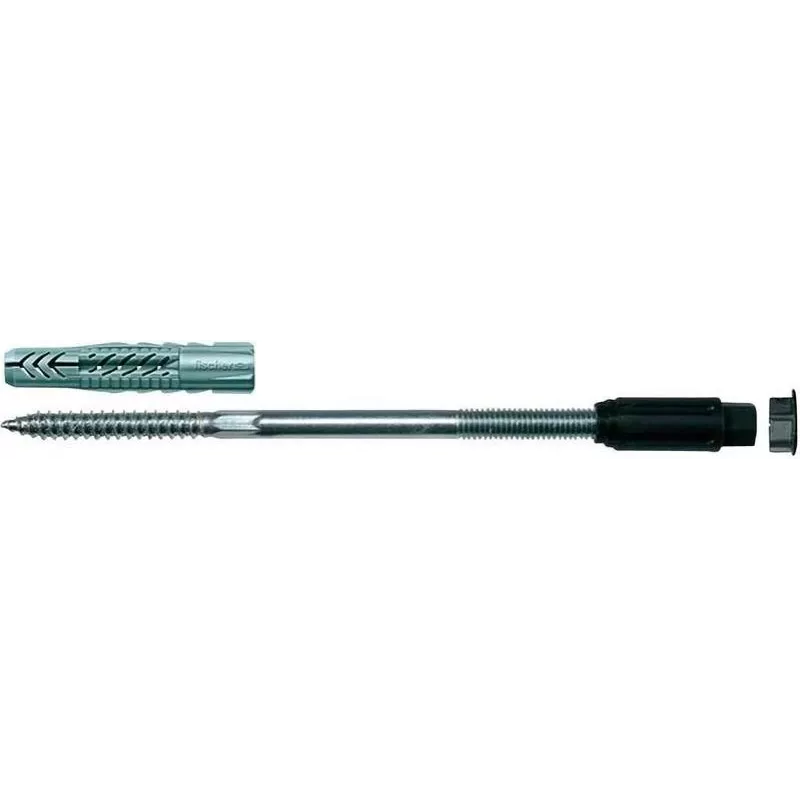

FISCHER Thermax 10/120 steel galvanized threaded rod with nylon 10 mm is a combined anchor element designed for reliable fixing in insulated and thermally sensitive installations. The product pairs a corrosion-resistant galvanized steel threaded rod with a 10 mm nylon sleeve to allow secure load transfer while maintaining thermal separation between the fixture and the base material. It is intended for use where a stable threaded connection and compatibility with insulation systems are required.

Advantages

The combination of a galvanized steel rod and a nylon sleeve ensures mechanical strength from the metal component while reducing thermal bridging through the polymer sleeve. Galvanization provides basic corrosion resistance suitable for many indoor and sheltered outdoor applications. The integrated system simplifies installation by combining the threaded connection and sleeve in a single component designed for a 10 mm anchor hole, delivering consistent positioning and repeatable performance.

Suitable for

• Fixing of insulation boards and facade anchors where thermal separation is required
• Securing fixtures to masonry and concrete with a 10 mm hole
• Applications requiring a threaded connection for brackets, rails or supports
• Indoor and sheltered outdoor installations with moderate environmental exposure

Key specifications

• Nominal rod diameter: compatible with 10 mm anchor holes
• Rod material: galvanized steel for corrosion resistance
• Sleeve material: nylon polymer to provide thermal separation
• Overall length: 120 mm
• Suitable for use with threaded fixtures and nuts

How to use

Drill a 10 mm hole in the base material to the required depth, clean the hole of dust and debris, then insert the nylon sleeve with the threaded rod so the sleeve sits flush with the surface or at the required embedment depth. Align the fixture and engage the threaded rod through the fixture into the sleeve, tightening to the necessary torque for the application. Ensure that the sleeve is fully expanded or positioned according to the substrate type to achieve proper load transfer.

Recommendations

Check the substrate condition and select drilling depth to match the 120 mm length. For long-term outdoor exposure or aggressive environments consider additional corrosion protection or alternative stainless steel components. Follow local building codes and torque specifications for threaded connections and verify load requirements before use.
