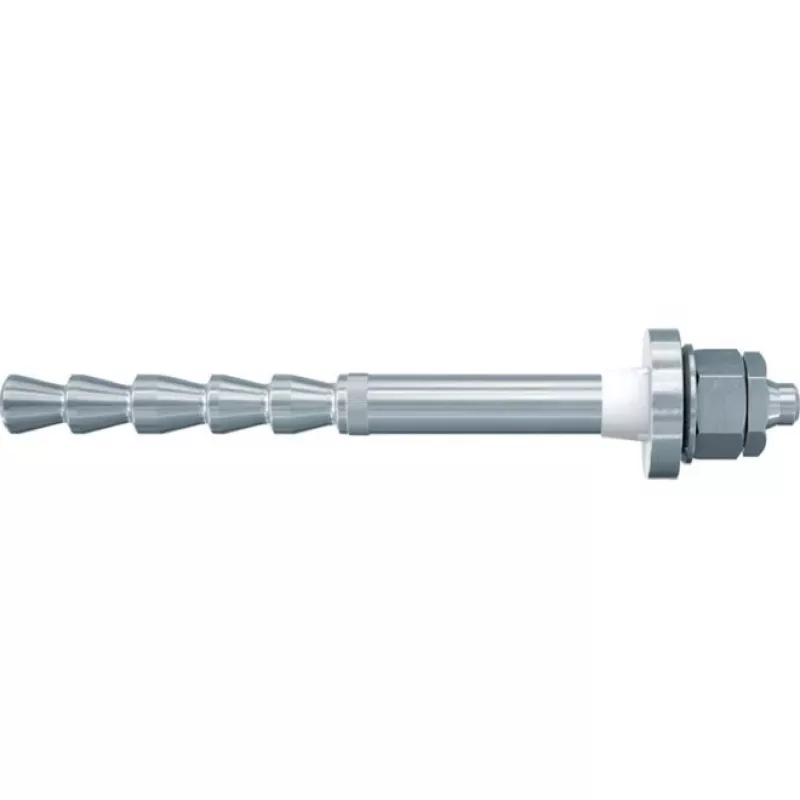

Fischer Highbond Dynamic FHB-A dyn 16x125/50 bucha de ancoragem (10 unid.) 92036

The Fischer Highbond Dynamic FHB-A dyn 16x125/50 is a high-performance chemical anchor system engineered for demanding dynamic loads in cracked and uncracked concrete. Its hybrid resin formulation delivers exceptional bond strength and rapid curing, making it ideal for structural fastening where safety and reliability are paramount. Each pack contains 10 anchor sleeves with a diameter of 16 mm and an embedment depth of 125 mm, offering a robust solution for heavy-duty applications.

Advantages

This anchor system provides superior load-bearing capacity even under seismic and dynamic conditions. The styrene-free vinyl ester resin ensures low odour and reduced health risks during installation. The anchor sleeve's geometry optimizes stress distribution, minimizing edge distances and spacing requirements. Suitable for use in dry or water-saturated concrete, it offers flexibility across various site conditions. The system is approved for use with standard threaded rods or reinforcing bars, simplifying specification and procurement.

Suitable for

• Structural steel connections
• Heavy machinery anchoring
• Facade and curtain wall fixings
• Safety barriers and guardrails
• Seismic retrofitting projects

Key specifications

• Anchor diameter: 16 mm
• Embedment depth: 125 mm
• Pack quantity: 10 pieces
• Resin type: Hybrid vinyl ester, styrene-free
• Approval: ETA for cracked and uncracked concrete
• Fire resistance: R120

Recommendations

For optimal performance, ensure the drill hole is cleaned according to Fischer's instructions using a brush and blow-out pump. Store the resin capsules in a cool, dry place and use within the specified shelf life. Always verify the concrete condition and select the appropriate installation torque as per the technical datasheet.
