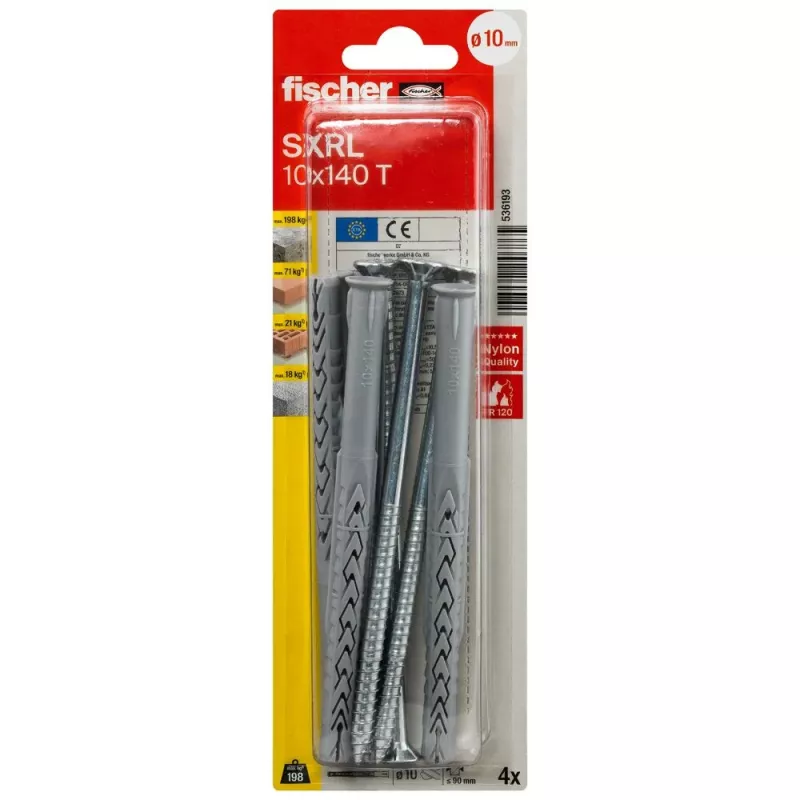

Fischer SXRL 10 x 140 T K NV Bucha de haste longa com parafuso de cabeça escareada, 1 conjunto (536193)

When standard wall plugs are too short for thick insulation or deep fixture gaps, the Fischer SXRL long-shaft anchor provides the extra reach needed for secure through-fixing. This 140 mm nylon plug with a countersunk Torx screw is engineered for reliable anchoring in a wide range of building materials.

Who is it for

Professional installers and demanding DIYers who need a high-performance fixing for windows, doors, battens, and metal brackets in concrete, solid brick, perforated brick, aerated concrete, sand-lime brick, and lightweight concrete blocks.

Main features

• Long shaft design for maximum fixture thickness up to 70 mm
• High-quality nylon plug with electro-galvanized steel screw
• Countersunk head with Torx TX30 drive for secure installation
• Through-fixing installation method
• Fire resistance class R 120
• European Technical Assessment ETA-15/0063

Specifications

• Anchor diameter: 10 mm
• Anchor length: 140 mm
• Screw diameter: 6 mm
• Screw length: 145 mm
• Drill hole diameter: 10 mm
• Minimum drill hole depth: 150 mm
• Minimum anchorage depth: 70 mm
• Maximum fixture thickness: 70 mm
• Quantity per pack: 50 pieces

Tips

For best results, use a hammer drill with a 10 mm masonry bit and blow out the drill hole before inserting the anchor. The plug must be fully seated in the hole, and the screw should penetrate at least the minimum anchorage depth.
