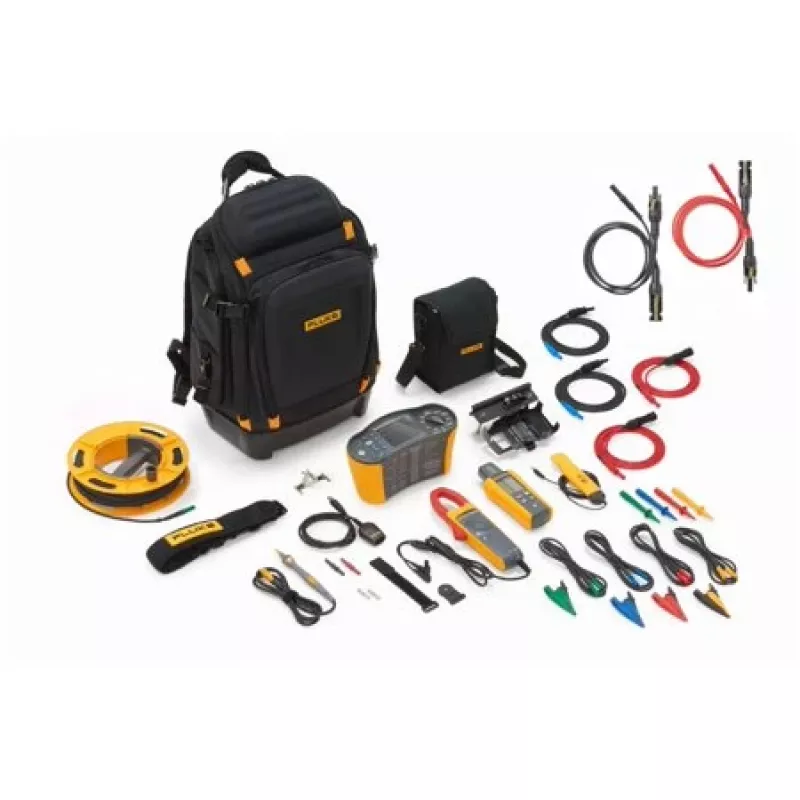

FLUKE FLK-SMFT-1000/PRO Analisador fotovoltaico multifunções, Performance-Kit 5416417

Solar installers and maintenance teams need a reliable way to verify PV system performance and safety. The FLUKE FLK-SMFT-1000/PRO Multifunction PV Analyzer, Performance Kit delivers comprehensive testing in one rugged tool, eliminating the need for multiple instruments on the roof.

Who is it for

This analyzer is built for solar professionals who perform commissioning, troubleshooting, and periodic inspections on residential and commercial PV systems. It is ideal for electricians, solar technicians, and O&M crews who need accurate I-V curve tracing and insulation testing without carrying extra gear.

Main features

• I-V curve tracing with 1000 V DC and 20 A DC measurement range
• Insulation resistance testing at 50 V, 100 V, 250 V, 500 V, and 1000 V, up to 20 GΩ
• Open circuit voltage (Voc), short circuit current (Isc), and maximum power (Pmax) measurement
• Continuity, polarity, and diode testing
• Irradiance and temperature measurement via included sensors (SMFT-1000-IRR and SMFT-1000-TEMP)
• Color LCD display for clear readings in sunlight
• Internal memory for up to 9999 measurements
• USB and Wi-Fi connectivity with Fluke Connect
• Rechargeable Li-Ion battery with over 6 hours of typical runtime

Specifications

• Max PV array voltage: 1000 V DC
• Max PV array current: 20 A DC
• Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
• Insulation resistance range: up to 20 GΩ
• Safety rating: CAT III 1000 V, CAT IV 600 V
• Display: Color LCD
• Data storage: internal memory for up to 9999 measurements
• Connectivity: USB, Wi-Fi (Fluke Connect)
• Power source: rechargeable Li-Ion battery
• Battery life: >6 hours (typical)
• Included sensors: SMFT-1000-IRR irradiance sensor, SMFT-1000-TEMP temperature probe
• Software compatibility: Fluke TruTest™ Software
• Operating temperature: -10 °C to 50 °C
• Ingress protection: IP40

Tips

Use the I-V curve tracing function to quickly identify underperforming strings caused by shading, soiling, or module mismatch. The included irradiance and temperature sensors allow you to normalize measurements to standard test conditions for accurate performance ratio calculations.
