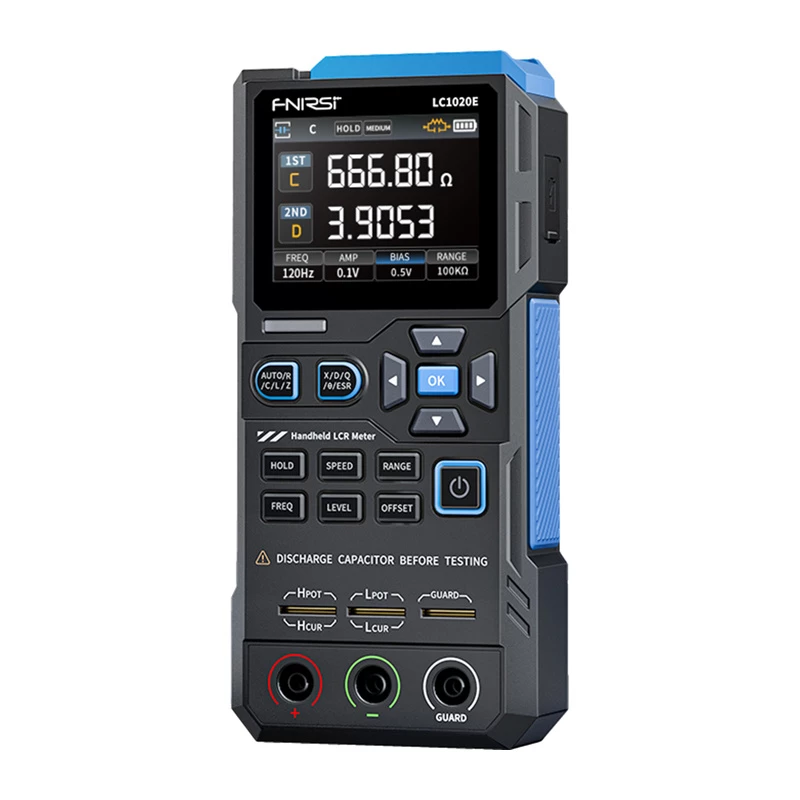

FNIRSI LC1020E Medidor LCR portátil de alta precisão

The FNIRSI LC1020E is a high-precision handheld LCR meter designed for accurate measurement of inductance (L), capacitance (C), and resistance (R). With auto-ranging test frequencies up to 500kHz and a clear 128x64 dot matrix LCD display, this meter is ideal for electronics engineers, technicians, and hobbyists who require reliable component testing in the field or lab.

Advantages

Offers exceptional accuracy with ±(1%+1 digit) for L and C, and ±(0.5%+1 digit) for R. Features one-key zero calibration for precise measurements. Built-in rechargeable lithium battery with USB Type-C charging ensures convenience and portability. Automatic shutdown conserves battery life.

Suitable for

• Electronics repair and troubleshooting
• Component sorting and verification
• Educational labs and training
• Quality control in manufacturing

Key specifications

• Measurement Parameters: L, C, R
• Inductance Range: 0.001µH to 100H
• Capacitance Range: 0.01pF to 100mF
• Resistance Range: 0.01Ω to 20MΩ
• Test Frequencies: 500kHz, 50kHz, 5kHz, 500Hz (auto-ranging)
• Display: 128x64 dot matrix LCD with backlight
• Power: USB Type-C 5V, built-in rechargeable battery
• Test Terminals: Banana jack inputs with Kelvin clips and test leads
• Operating Temperature: 0°C to 40°C

Recommendations

For best results, perform zero calibration before each use. Suitable for low-voltage component testing; not rated for high-voltage measurements. Includes USB-C cable, Kelvin clips, and test leads.
