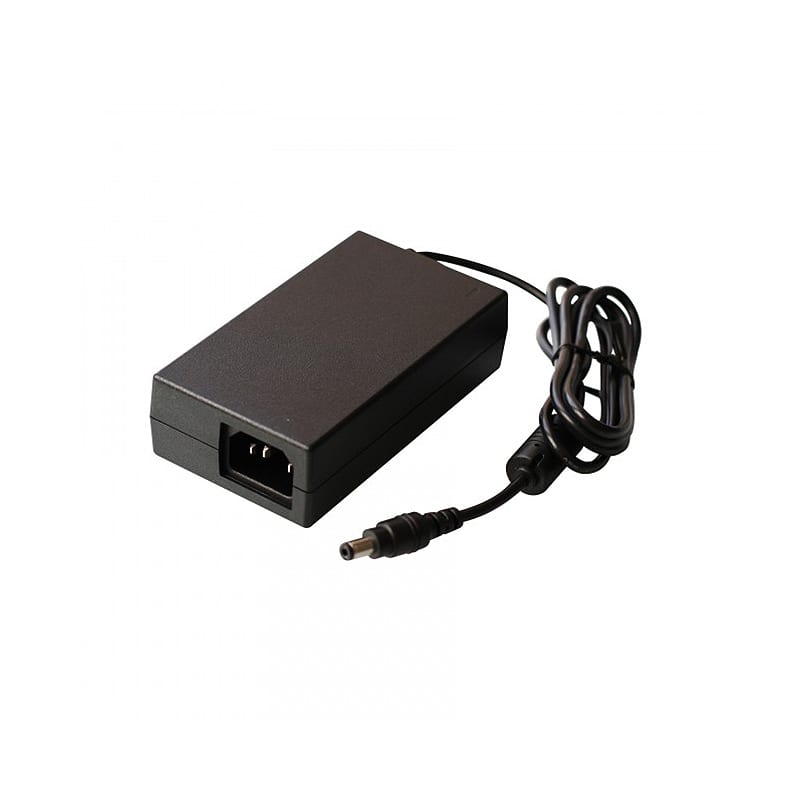

Fonte de alimentação adaptadora FSP 60W AC-DC 12V 5A

The FSP 60W AC to DC 12V 5A Adapter is a 60W AC to DC power supply intended for use in IPC Systems, Embedded Systems, Printers, POS Systems, etc that have middle wattage demands. It operates at 90 to 264 VAC input voltage and meets CISPR32 EN55032 CLASS B, EN55024 and FCC PART 15B Class B emission limits, and is designed for ITE application.

Key features

• Meet IEC 62368-1 & IEC 60950-1
• Meet Energy Efficiency DOE Level VI
• Meet Code of Conduct Version 5 Tier 2
• High Reliability
• EMC Standard: EN55032/ EN55024 Class B
• Over Current Protection
• Over Temperature Protection
• Over Voltage Protection

Specifications

• Brand: FSP
• MPN: FSP060-DHAN3
• Input voltage: 90-264 VAC
• Input frequency: 47-63 Hz
• Input current: 100Vac, 240Vac / full load ≤ 1.0A
• Touch current: 264Vac / 50Hz ≤ 0.25mA
• Output Voltage: 12V
• Output Current: 5A
• What's in the box: FSP 60W AC to DC 12V 5A Adapter - Black x1
