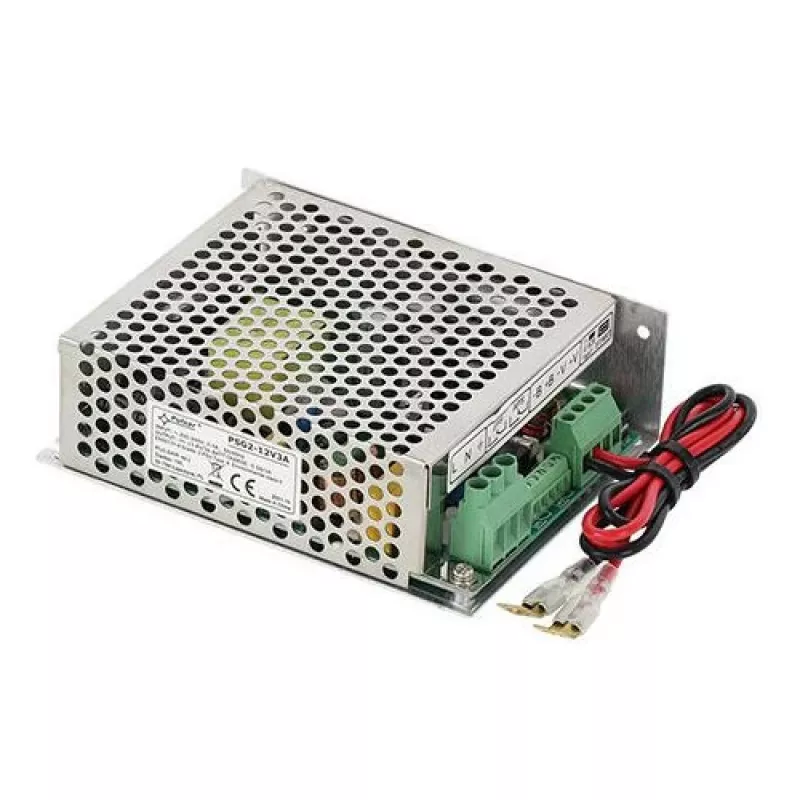

PULSAR fonte de alimentação comutada com backup para montagem embutida, grau 2, V PSG2-12V3A

The PULSAR PSG2-12V3A is a buffered switching power supply designed for built-in installation, meeting Grade 2 requirements. It provides a 200–240 V input and a 11–13.8 V output in buffer mode or 10–13.8 V in battery mode.

Key features

• Buffered switching power supply for built-in use
• Grade 2 compliant
• Type A (EPS – External Power Source, environmental class II)
• Battery circuit protection: SCP and reverse polarity
• Fuse FBAT (failure requires fuse replacement)
• Overload protection OLP 105%–150% of power supply, automatic return
• Overvoltage protection OVP >19 V (requires disconnecting supply voltage for about 1 min.)
• Battery deep discharge protection UVP

Specifications

• Brand: Pulsar
• MPN: PSG2-12V3A
• Power supply type: A (EPS – External Power Source, environmental class II)
• Input voltage: 200–240 V
• Output voltage: 11–13.8 V (buffer operation), 10–13.8 V (battery operation)
• Current consumption for own needs during battery operation: 30–50 mA
