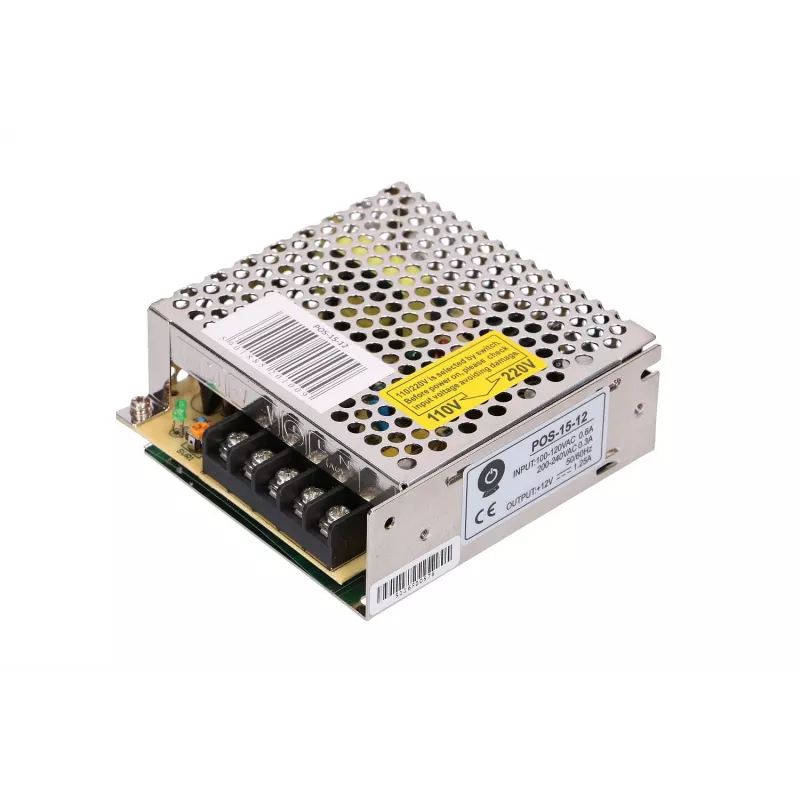

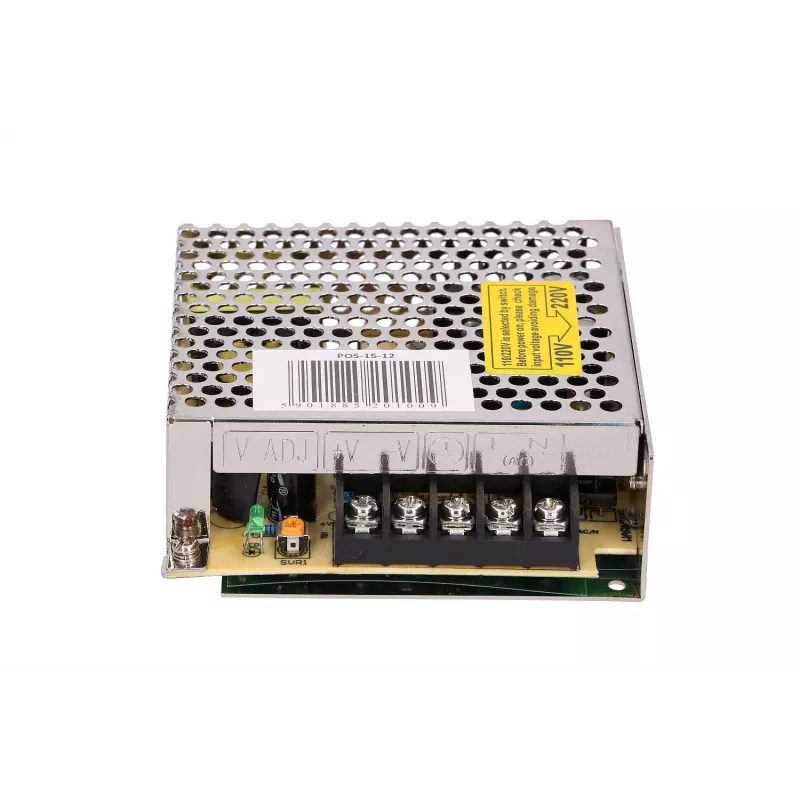

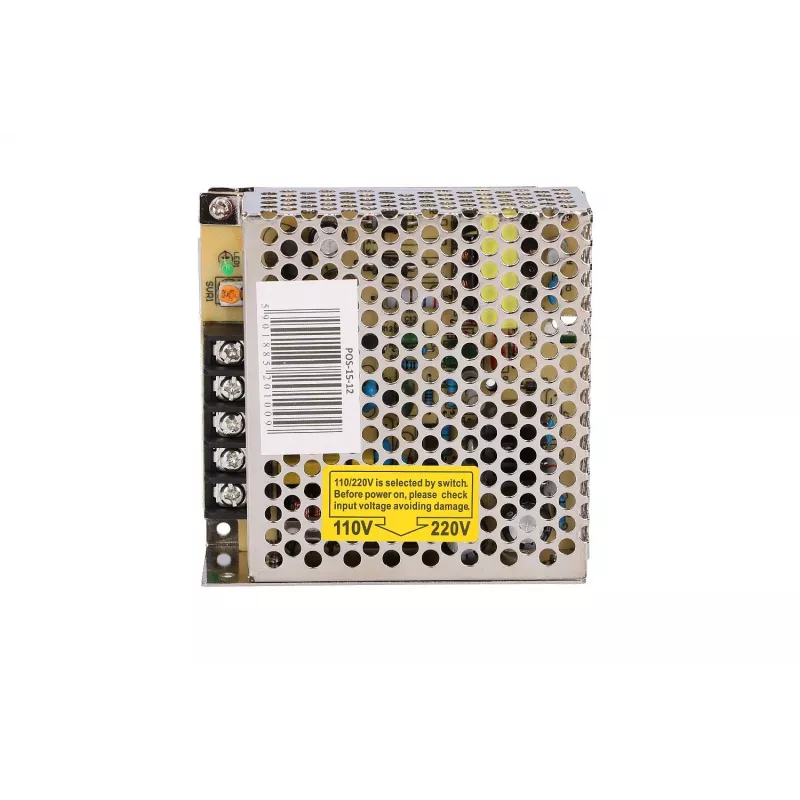

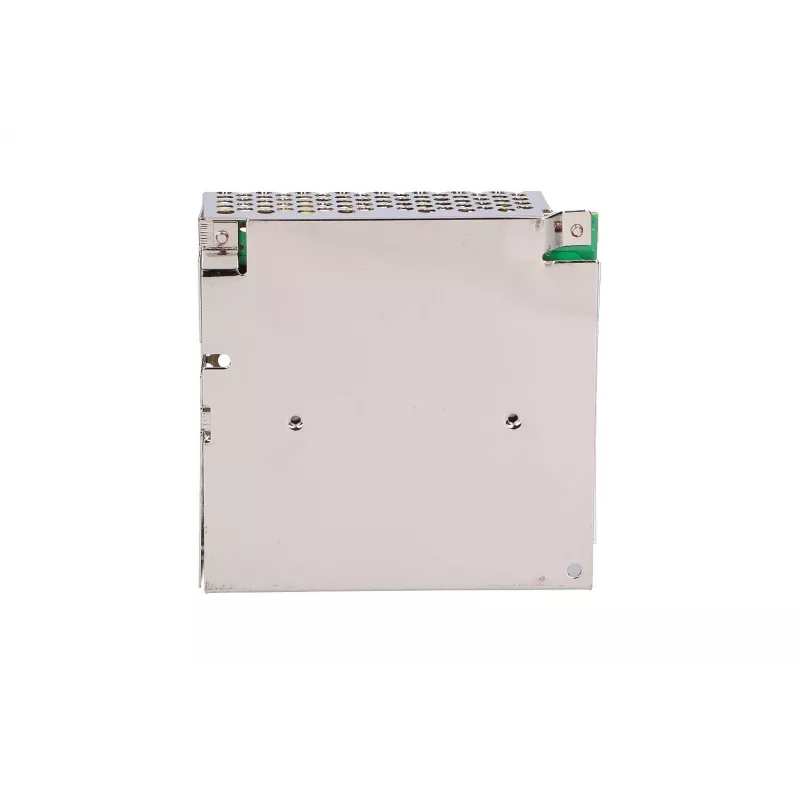

Fonte de alimentação comutada modular MPL POS-15-12, 12 V 1,25 A

The MPL POS-15-12 is a modular switching power supply that provides a stabilized 12 V DC output with a maximum current of 1.25 A. Packaged as a compact module for integration, this supply is intended for low-power electronic systems, control panels and embedded assemblies. It uses a switching-regulator topology to deliver higher conversion efficiency than linear alternatives and includes built-in protection against short circuits and overload conditions as implemented by the manufacturer.

Advantages

The modular form factor allows straightforward installation into existing enclosures and assemblies without occupying significant space. The switching design improves power efficiency and reduces heat generation compared with linear supplies of similar ratings. Integrated protection features enhance reliability in applications where transient loads or accidental short circuits may occur. The stabilized 12 V output ensures consistent voltage for sensors, small controllers and LED loads.

Suitable for

• Powering sensors and small automation modules
• Supplying microcontroller boards and compact controllers
• Driving low-power LED strips and indicator lighting
• Integration into control panels and embedded assemblies

Key specifications

• Output voltage: 12 V DC (stabilized)
• Maximum output current: 1.25 A
• Topology: switching regulator
• Protection: short-circuit and overload protection (manufacturer implementation)
• Form factor: compact modular module for integration
• Typical applications: low-power electronics, control panels, embedded systems

How to use

Mount the module in a suitable location inside the target device or enclosure ensuring adequate ventilation for heat dissipation. Connect the input supply according to the device's input rating and polarity, and wire the stabilized 12 V DC output to the load, observing correct polarity. Verify that the connected load does not exceed the maximum rated current of 1.25 A. If the module includes mounting holes or connector points, secure it mechanically to prevent movement and to maintain reliable electrical connections.

Recommendations

Use this modular switching power supply with loads that remain within the rated 12 V / 1.25 A envelope. Allow for margin when selecting the supply for systems with startup currents or transient peaks. Ensure the module is installed with adequate airflow and away from heat sources. If the application requires continuous operation near the current limit, consider thermal management measures and periodic inspection of connections.
