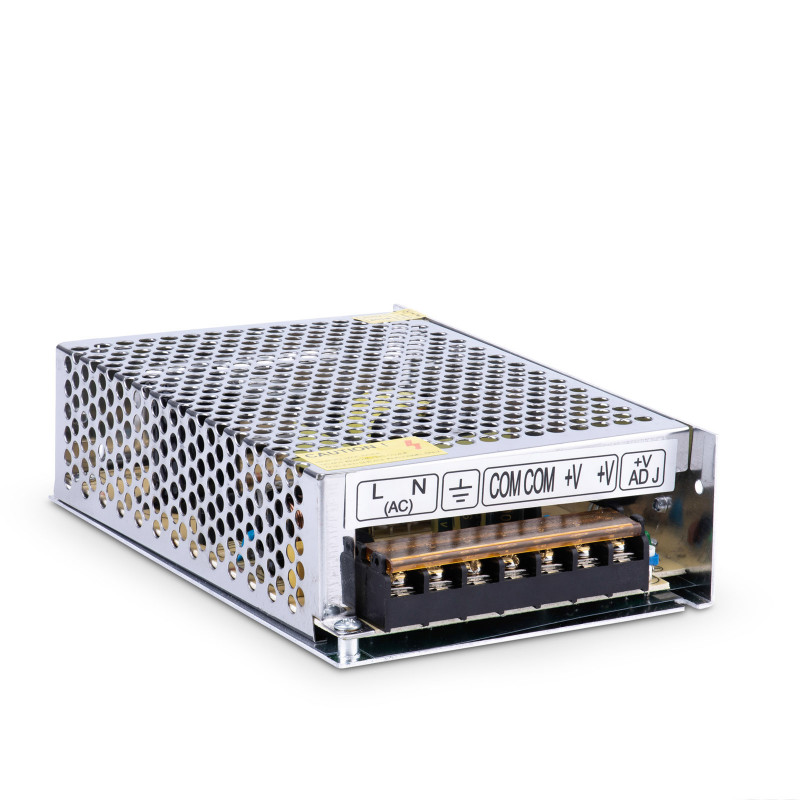

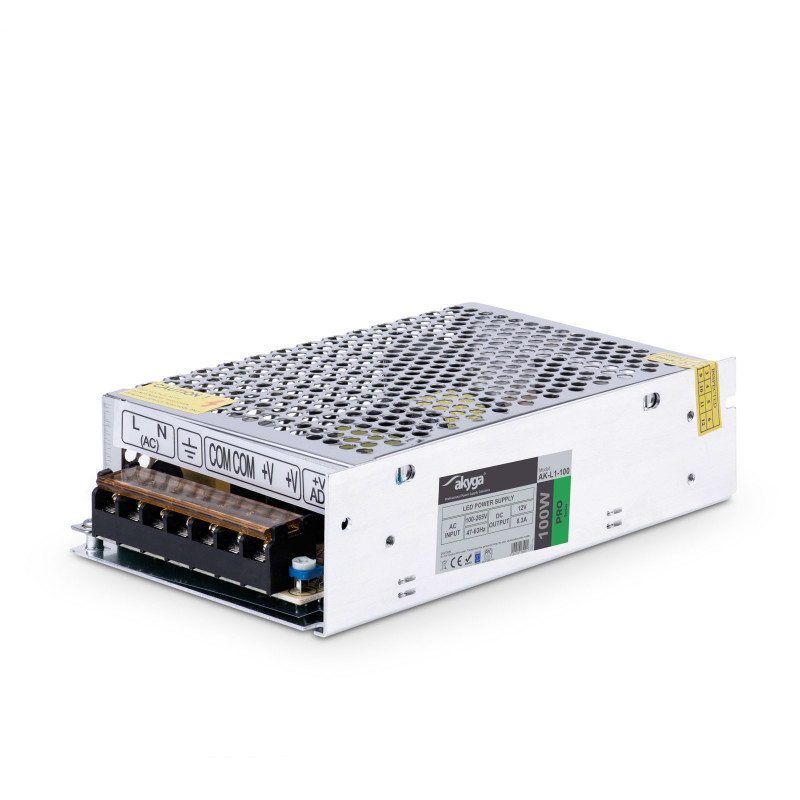

Fonte de alimentação comutável LED Akyga AK-L1-100 12 V, 8,3 A, 100 W, IP20

The Akyga AK-L1-100 is a 100W LED power supply designed for industrial automation systems, machine control and LED lighting. It delivers 12V DC at 8.3A and can power LED strips, LED bulbs, LED panels, RGB LED drivers and other electronic equipment requiring 11-15V DC, with voltage regulated by a potentiometer.

Key features

• 100W power supply for industrial automation, machine control and LED lighting
• Output voltage 12V DC, adjustable via potentiometer (11-15V DC)
• Current capacity 8.3A
• Can power two different circuits simultaneously
• Protections: OVP, OCP, OPP, OTP, SCP
• Screw power supply connector
• IP20 rating

Specifications

• Brand: Akyga
• MPN: AK-L1-100
• Product type: LED power supply
• Series: Pro
• Supply voltage: 100-265 V
• Output voltage: 12V DC (11-15V DC regulated)
• Current: 8.3A
• Power: 100W
• Mechanical switch: None
• IP rating: IP20
• Protections: OVP, OCP, OPP, OTP, SCP
• Power supply connector: Screw
• Operating temperature: 5 - 50 °C
• Product size (L x W x H): 160x98x42 mm
• Net weight: 338 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720135001
