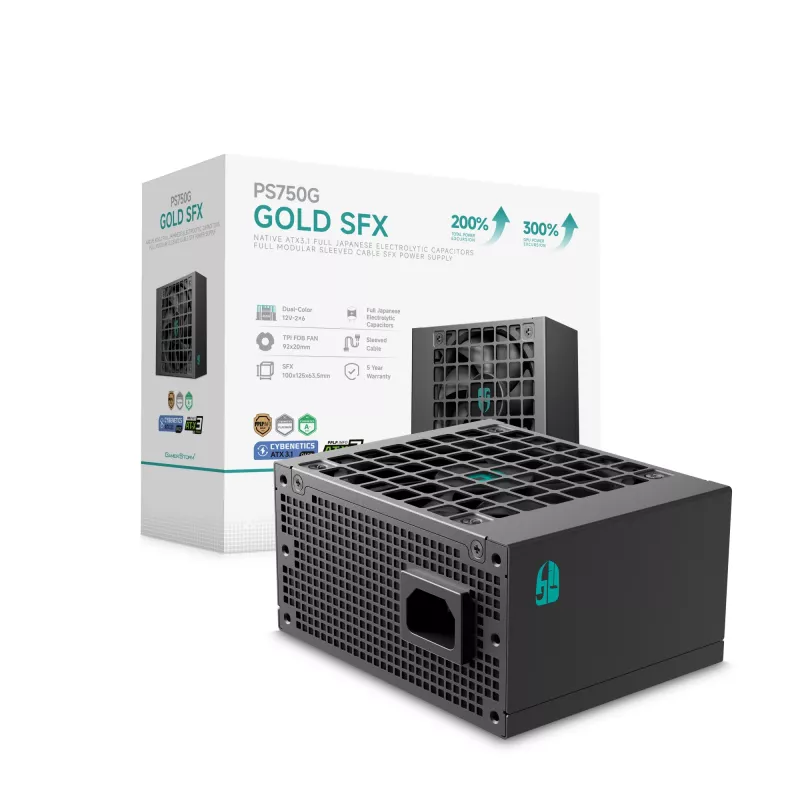

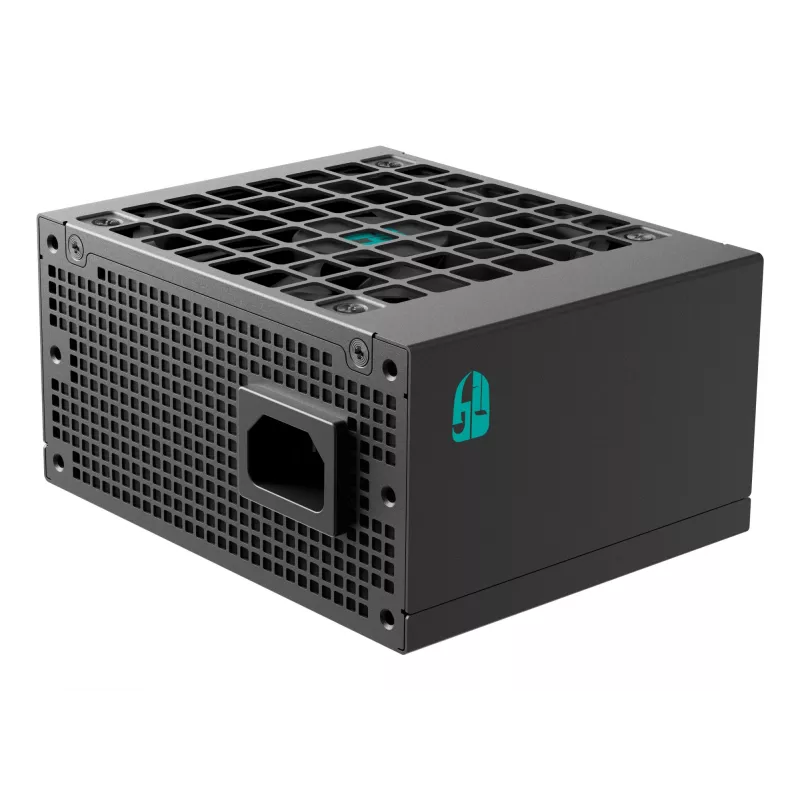

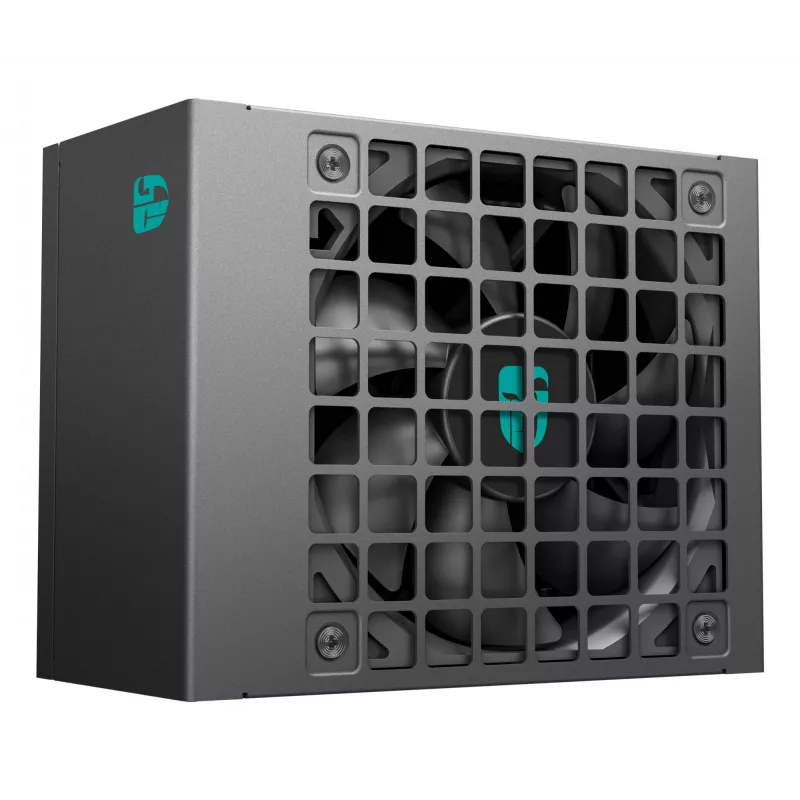

DeepCool Gamer Storm PS750G 750 W SFX ATX 3.1 fonte de alimentação, 80 PLUS Gold, preto

The DeepCool Gamer Storm PS750G is a 750 W SFX power supply with 80 PLUS Gold efficiency and ATX 3.1 support. It features a fully modular cable design, a 92 mm FDB fan, and active PFC.

Key features

• 750 W total power
• 80 PLUS Gold efficiency
• SFX form factor
• ATX 3.1
• Fully modular cabling

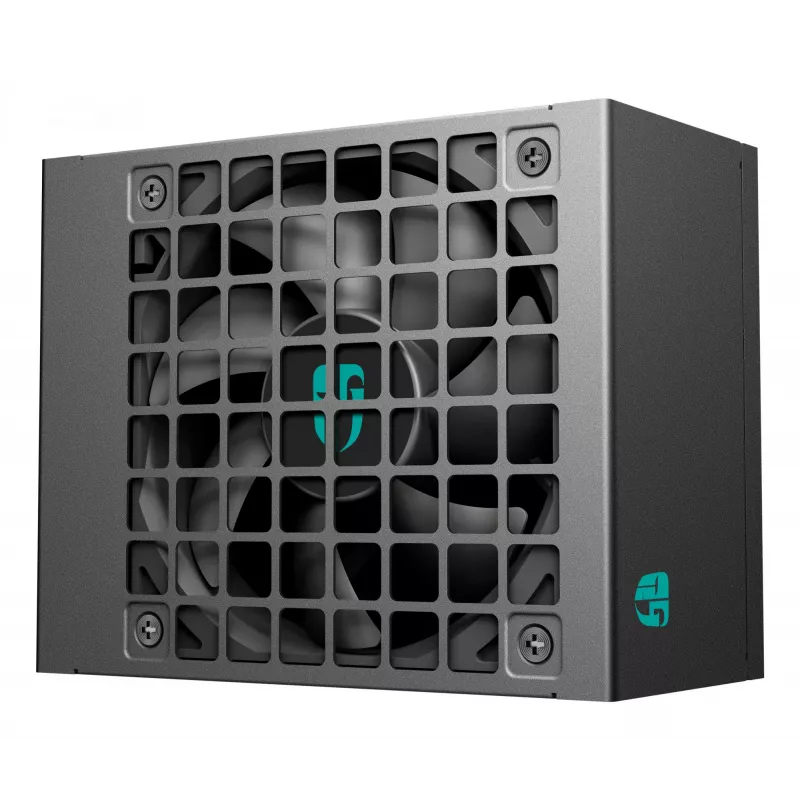

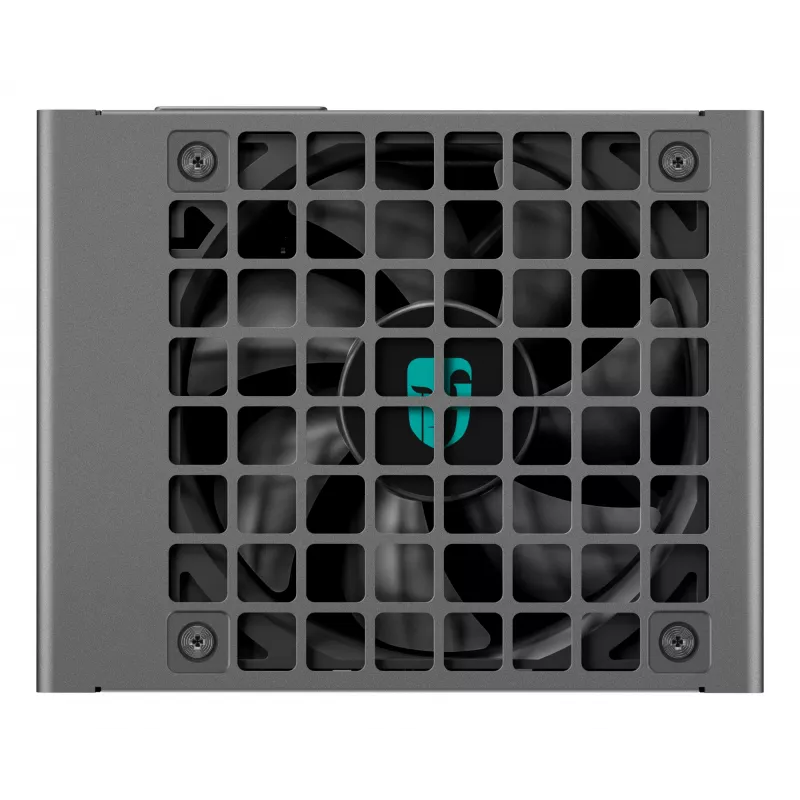

• 92 mm FDB fan
• Active PFC
• Single +12V rail with 62.5 A
• Protections: OLP, OVP, SCP, OTP, OCP, UVP, SIP, no load operation
• MTBF: 100,000 hours
• Certifications: CCC, CE, TÜV mark, EAC, RCM, RoHS, KC, ICES; Cybenetics Platinum/PPLP Gold

Specifications

• Brand: DeepCool
• MPN: R-PS750G-FE0B-JGEU
• Product colour: Black
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Input current: 10 - 5 A
• Combined power +3.3V: 100 W
• Combined power +12V: 750 W
• Combined power +5V: 100 W
• Combined power -12V: 3.6 W
• Combined power +5Vsb: 15 W
• Max output current +3.3V: 20 A
• Max output current +12V: 62.5 A
• Max output current +5V: 20 A
• Max output current -12V: 0.3 A
• Max output current +5Vsb: 3 A
• Hold-up time: 16 ms
• Efficiency: 90%
• Motherboard connector: 20+4 pin ATX
• Motherboard cable length: 35 cm
• SATA connectors: 3
• SATA cable length: 300,120 mm
• Molex 4-pin connectors: 1
• Peripheral (Molex) cable length: 120 mm
• PCIe 6+2-pin connectors: 3
• PCIe 16-pin connectors: 1
• PCIe cable length: 45 cm
• CPU connector: 4+4 pin
• CPU cable length: 50 cm

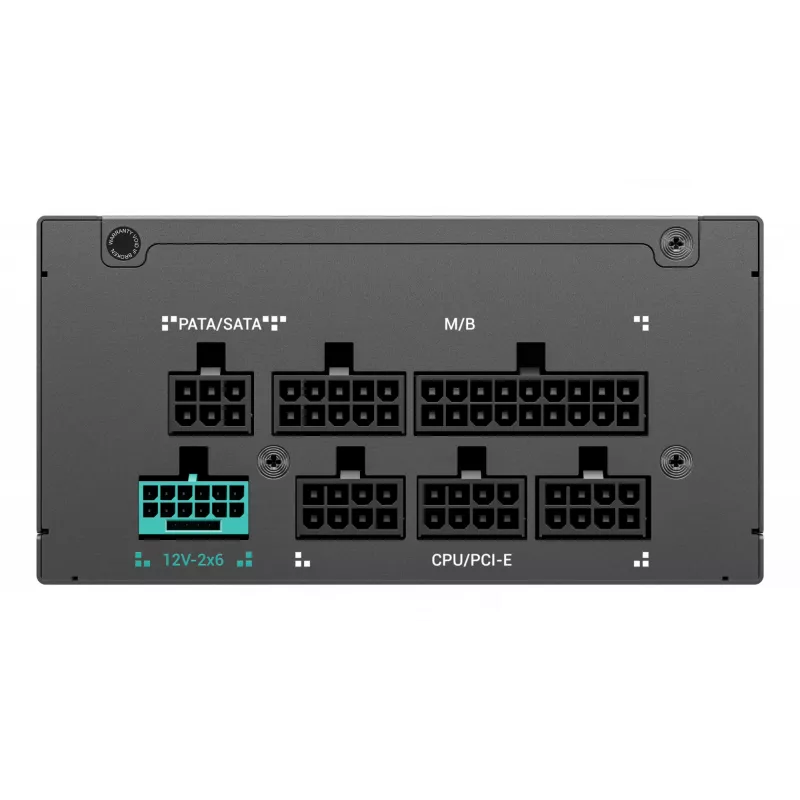

• Cable type: Fully modular
• Purpose: PC
• PSU form factor: SFX
• Bearing type: FDB
• Cooling: Active
• Fan diameter: 9.2 cm
• Number of fans: 1
• Operating temperature: 0 - 40 °C

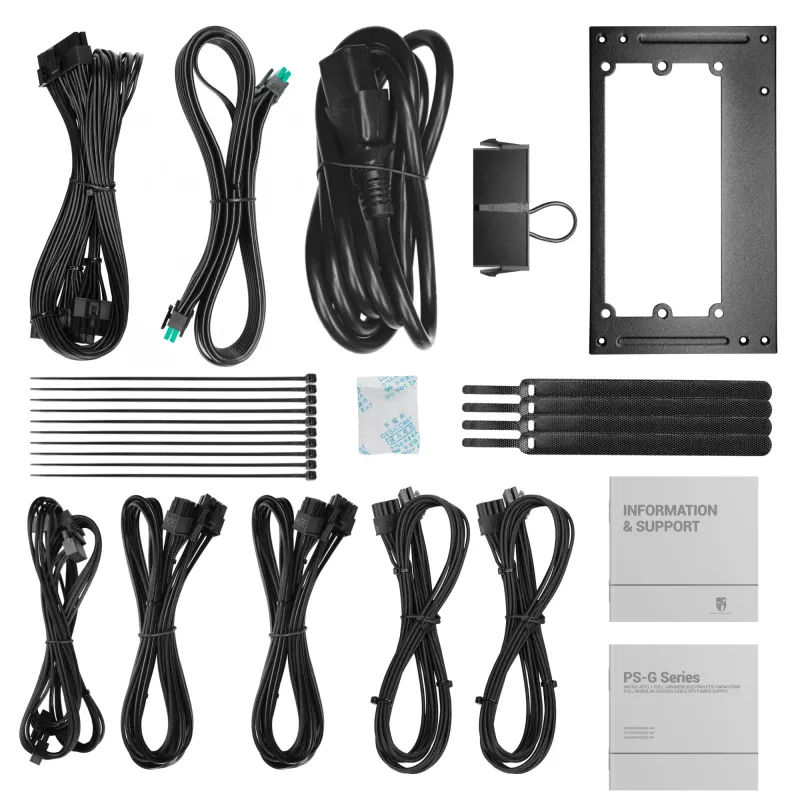

• Included cables: CPU, PCIe, Peripheral (Molex), SATA, AC
• Cable ties included
• Manual included
• Packaging type: Box
• Width: 125 mm
• Depth: 100 mm
• Height: 63.5 mm
