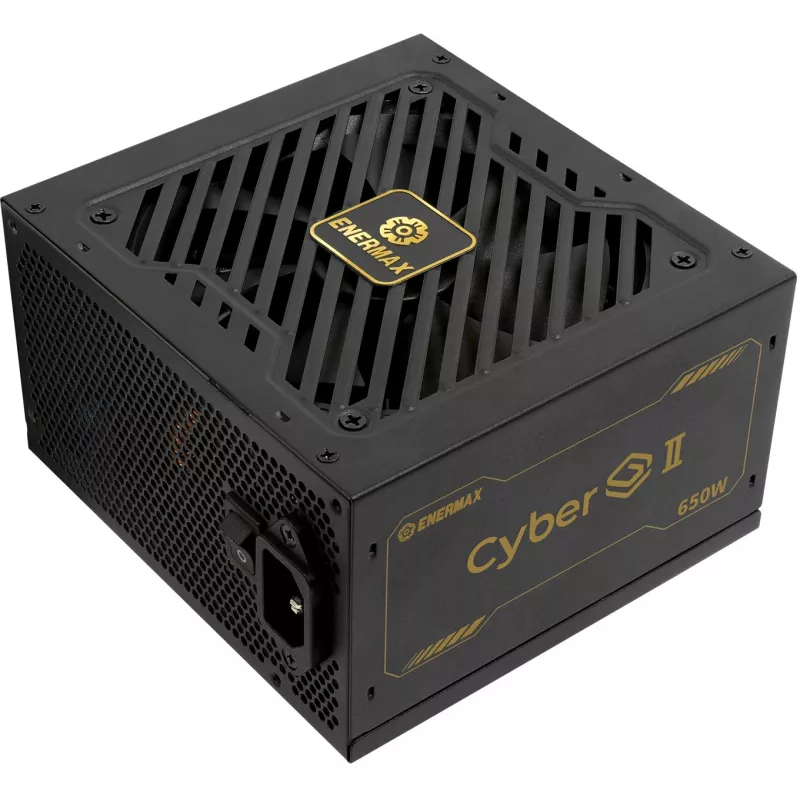

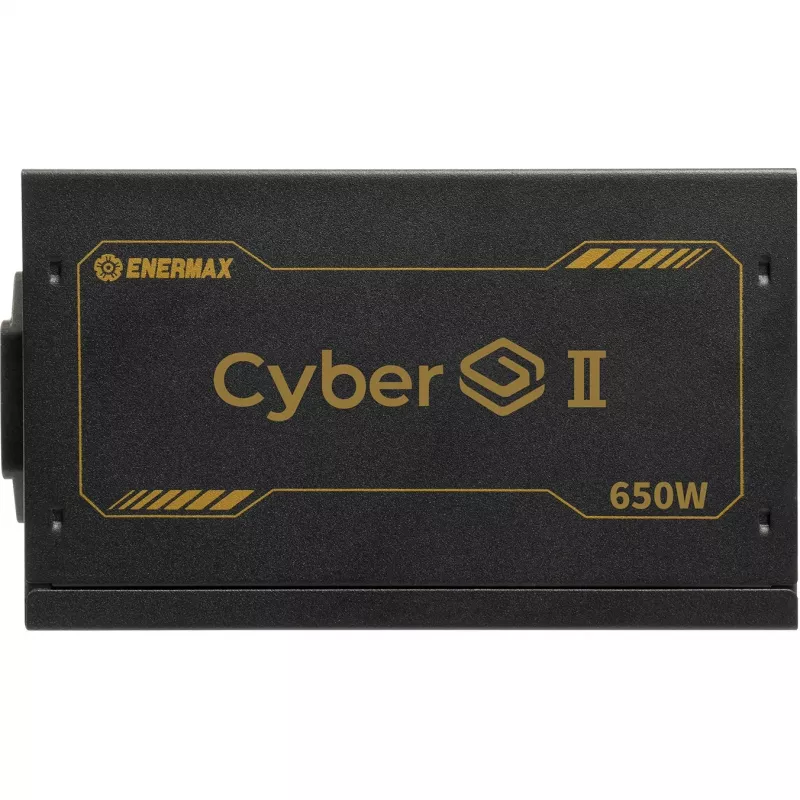

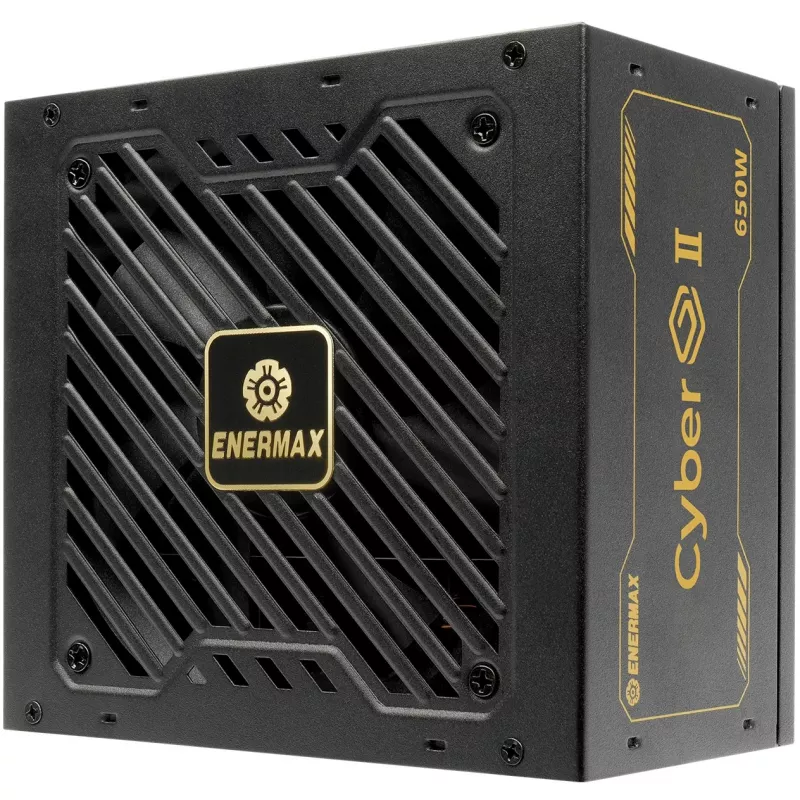

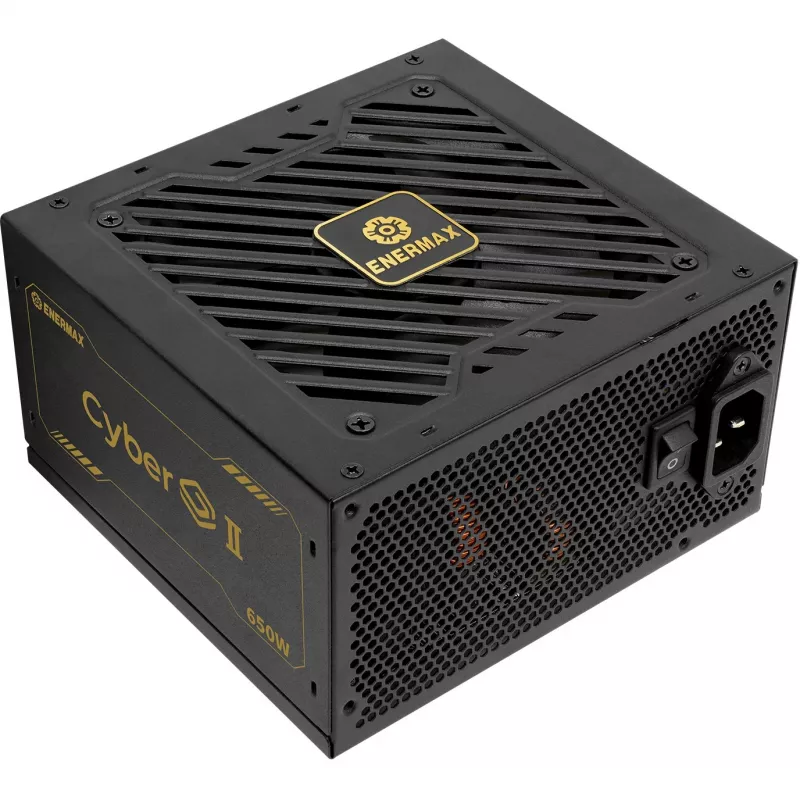

Fonte de alimentação Enermax ERV650G-AHG-NAC 650 W

The Enermax ERV650G-AHG-NAC is a 650 W power supply unit designed for desktop PCs. It is 80 PLUS Gold certified, offers an ATX 3.1–compatible design with a 20+4 pin motherboard connector, and uses non-modular black flat cables for straightforward installation. The unit includes a 120 mm cooling fan and is built with industrial-grade Japanese capacitors for stable operation. Its compact dimensions make it suitable for standard PC cases.

Advantages

Efficiency up to 93% under typical load reduces power loss and heat. Compliance with ATX 3.1 provides support for power excursions required by modern GPUs. All Japanese capacitors ensure reliable voltage stability and longevity. The PSU is tested for continuous operation at temperatures up to 40°C and altitudes up to 5,000 m. Non-modular flat cables facilitate tidy routing and easy installation.

Suitable for

• Gaming desktops with mid to high power graphics cards
• Workstations requiring stable 12 V rail performance
• Systems in environments with elevated altitude or temperature
• PC builds where simple cable routing is preferred

Key specifications

• Total power output: 650 W
• Efficiency certification: 80 PLUS Gold (up to ~93% typical)
• Motherboard connector: 20+4 pin ATX

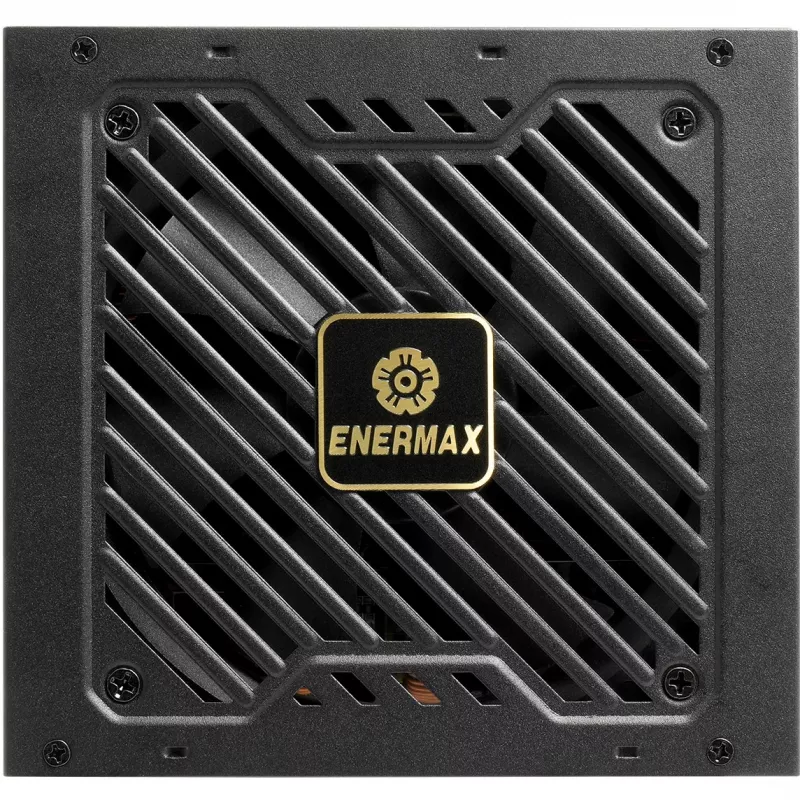

• Cooling: 120 mm fan

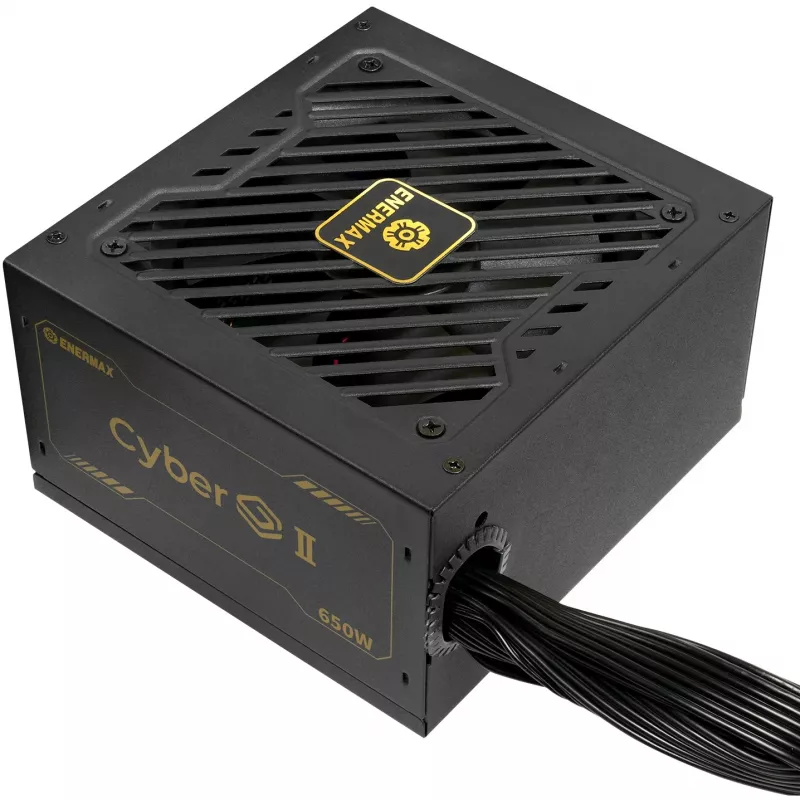

• Cable type: non-modular black flat cables
• Operating temperature: continuous operation up to 40°C
• Altitude rating: continuous operation up to 5,000 m
• Construction: industrial-grade Japanese capacitors
• Colour: Black
• Dimensions (W×D×H): 150 × 140 × 86 mm

How to use

Install the power supply into a compatible ATX case following the motherboard and case manufacturer guidelines. Connect the 20+4 pin ATX cable to the motherboard main power socket and attach the required peripheral and GPU power connectors. Ensure adequate airflow around the 120 mm fan and route the non-modular flat cables to avoid blocking ventilation. Verify AC input matches the local mains voltage range (100–240 V) before powering on the system.

Recommendations

Use the Enermax ERV650G-AHG-NAC in systems whose total component power draw stays within the 650 W rating, and allow at least a 20% margin for peak loads. Keep the PSU mounted with unobstructed airflow, avoid placing it near heat sources, and perform periodic dust cleaning of the fan and vents to maintain cooling efficiency.
