Fonte de alimentação GEMBIRD Fornax Power 750W ATX 80 PLUS Gold modular ventoinha 12 cm EPS 4+4pin PCIe 6+2pin conectores SATA

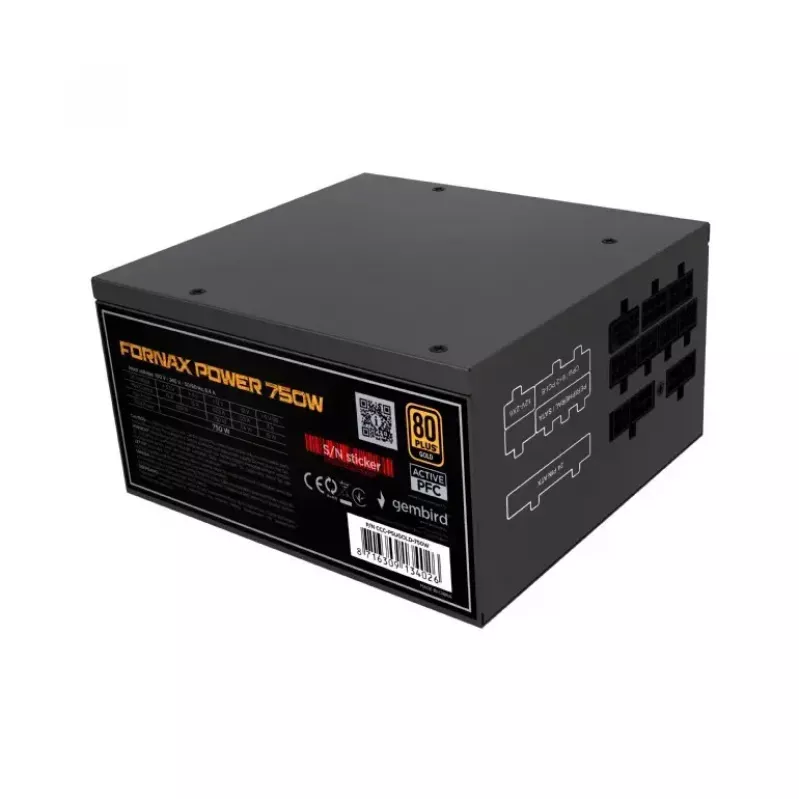

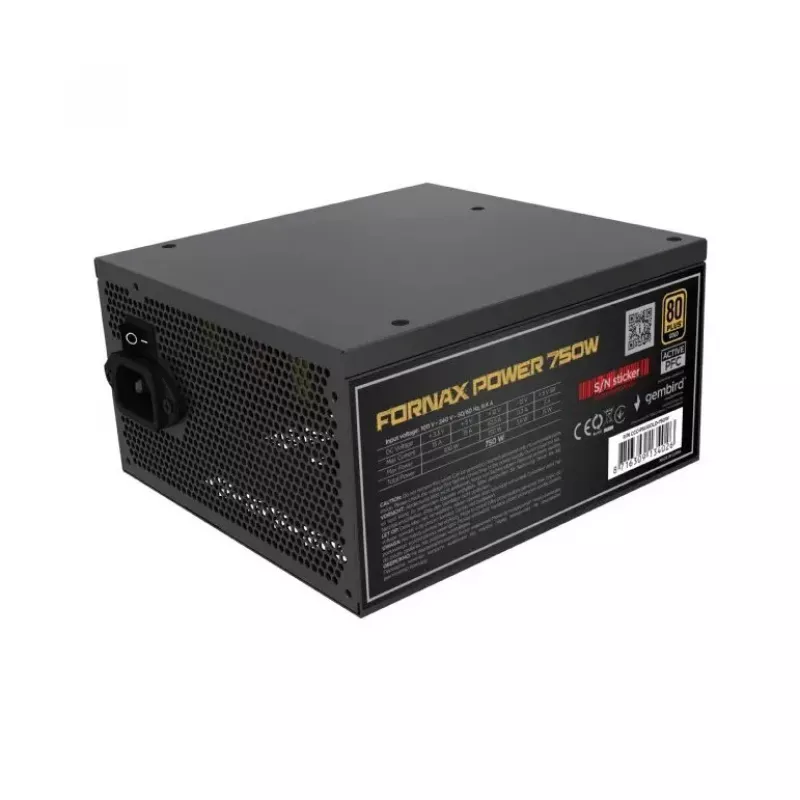

GEMBIRD Fornax Power 750W is an ATX power supply with 80 PLUS Gold efficiency that delivers up to 750 W of continuous power for desktop PCs. The unit features modular cabling to reduce cable clutter and a compact enclosure measuring 150 × 86 × 160 mm with a weight of 1.72 kg. Active cooling is provided by a 12 cm fan, and the supply includes active PFC and over-power protection for stable operation.

Advantages

The power supply offers high efficiency certified by 80 PLUS Gold, a modular cabling system for easier cable management, and active PFC for improved power stability. It includes multiple connector types required by modern PCs and a 120 mm fan for effective active cooling while remaining compact and lightweight.

Suitable for

• Desktop PCs requiring up to 750 W continuous power
• Custom builds where modular cabling and tidy cable management are desired
• Systems needing EPS and PCIe connectors for CPUs and graphics cards

Key specifications

• Total power: 750 W
• Efficiency certification: 80 PLUS Gold
• Form factor: ATX

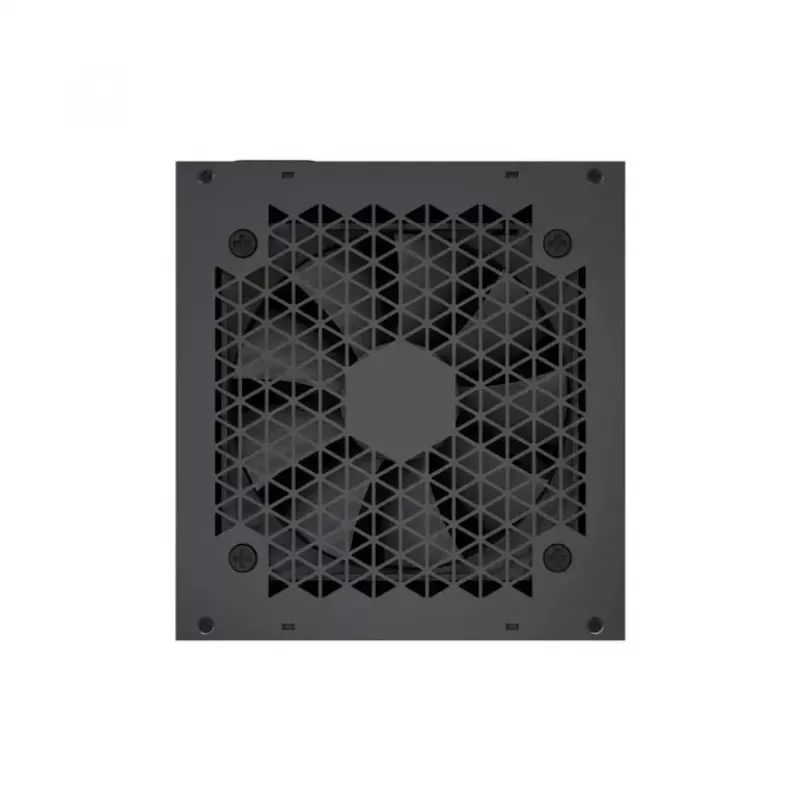

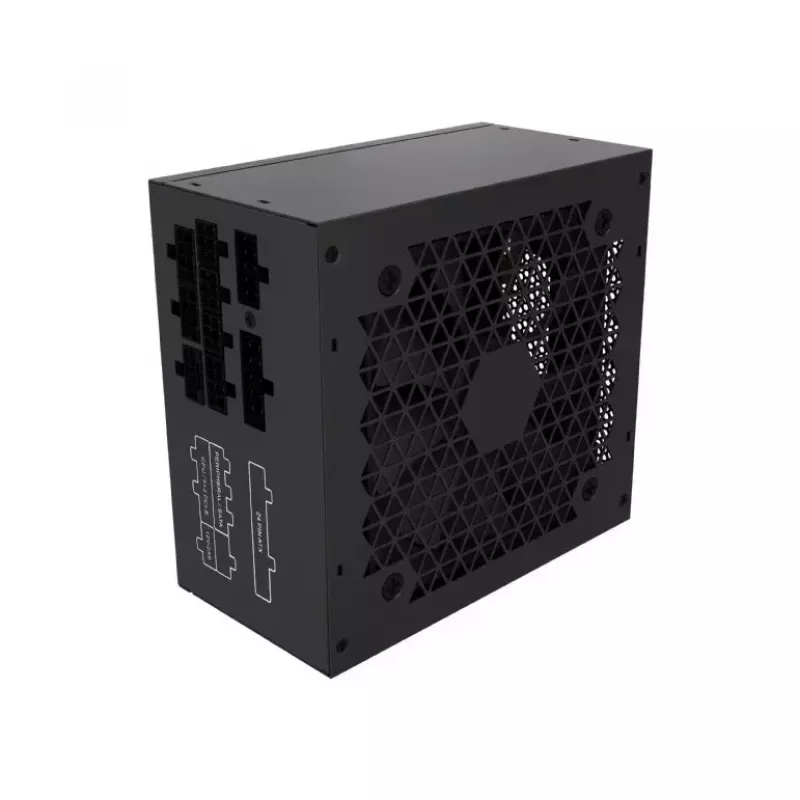

• Cooling: Active, 120 mm fan

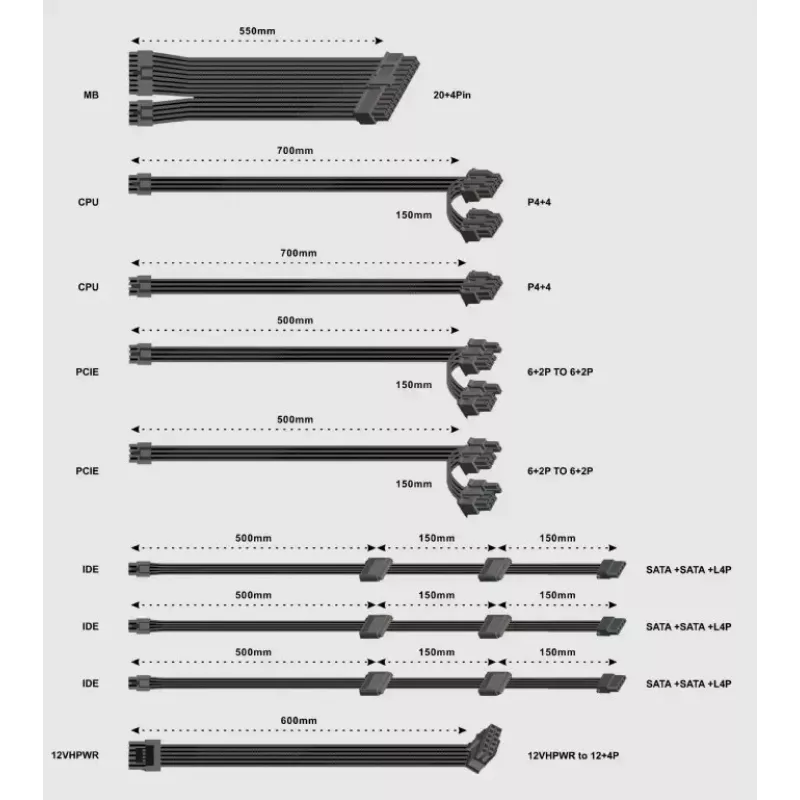

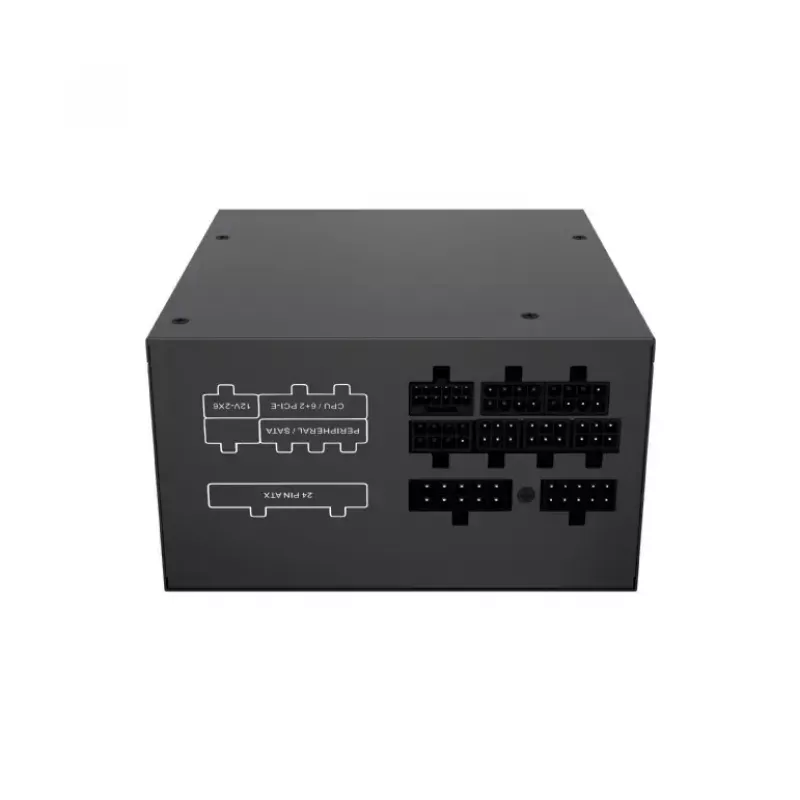

• Cabling: Modular
• Motherboard connector: 24-pin ATX
• EPS connectors: 2 × 4+4 pin
• PCIe connectors: 2 × 6+2 pin
• SATA power connectors: 3
• Protection: Over-power protection
• Power factor correction: Active PFC
• Dimensions (W × H × D): 150 × 86 × 160 mm
• Weight: 1.72 kg
• Compliance: RoHS

How to use

Install the GEMBIRD Fornax Power 750W into a compatible ATX case by securing the unit in the PSU bay and connecting the 24-pin ATX cable to the motherboard. Attach the EPS 4+4 pin connectors to the CPU power input and connect PCIe 6+2 pin cables to graphics cards as required. Use the modular SATA and peripheral cables to power drives and other components. Ensure all connections are firmly seated and route cables to maintain airflow; verify voltages and system stability after first power-up.

Recommendations

Use this power supply in systems whose combined component power draw does not exceed the unit's continuous 750 W rating. Maintain adequate case airflow and periodically check and reseat modular connections. Comply with RoHS handling and disposal guidelines.
