Fonte de alimentação GEQUDIO GNX-42 12V 3,5A para dispositivos eletrónicos, modelo WA9542

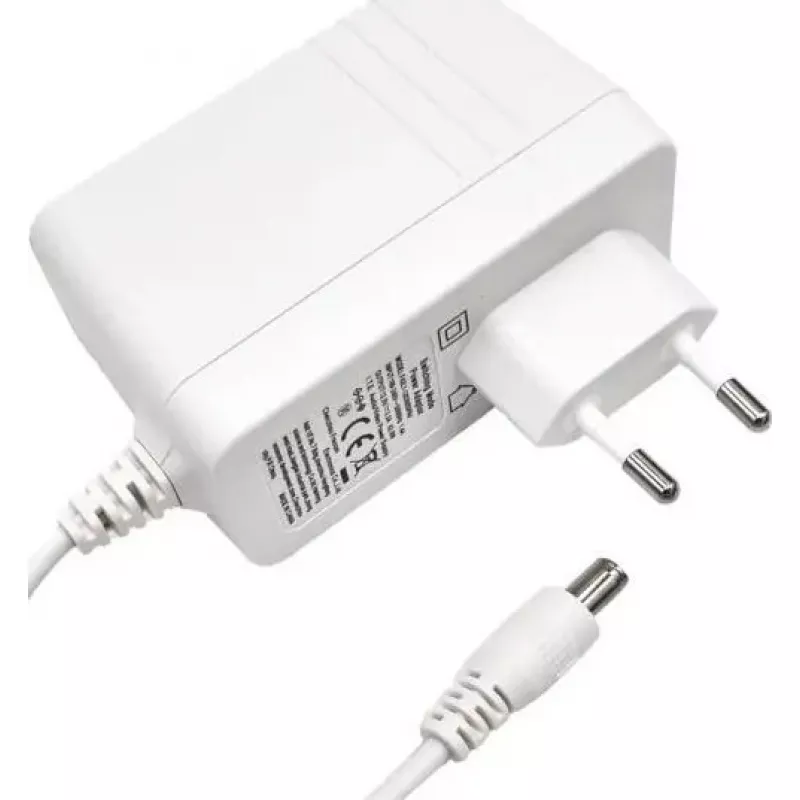

GEQUDIO GNX-42 is a compact 12V DC power supply rated for 3.5A (42W) output, designed to feed low-voltage electronic devices that require a steady and protected power source. The unit provides regulated DC power with built-in overload protection and a form factor suitable for both domestic and professional installations. It is intended for inline use with devices such as network equipment, surveillance cameras, and LED lighting systems where stable 12V supply is required.

Advantages

The power supply offers a regulated 12V output with a maximum current of 3.5A, delivering up to 42 watts of continuous power while including overload protection to reduce risk of damage to connected equipment. Its compact design allows easy placement in constrained spaces or distribution boxes. The device is engineered for stable voltage delivery under typical operating loads and is compatible with a wide range of 12V electronics commonly found in home and small commercial setups.

Suitable for

• Routers, switches and other network devices that require a 12V DC input.
• CCTV cameras and other video surveillance hardware operating at 12V.
• Low-voltage LED strips and lighting modules rated for 12V operation.
• Small audio or control modules and sensors that accept 12V DC supply.

Key specifications

• Output voltage: 12 volts DC (regulated)
• Maximum output current: 3.5 amperes
• Maximum output power: 42 watts
• Protection features: overload protection
• Form factor: compact enclosure suitable for surface or enclosure mounting
• Typical use: continuous operation for low-voltage electronics

How to use

Connect the power supply input to an appropriate AC mains source following local electrical standards, ensuring the input voltage and wiring meet safety requirements. Attach the DC output leads to the device’s 12V input, observing correct polarity. Power the supply on and verify the connected device receives stable 12V. During installation, allow sufficient ventilation around the unit and secure it to prevent movement or strain on the cables. If multiple devices need power, verify combined current draw does not exceed the 3.5A limit.

Recommendations

Use the power supply in dry, well-ventilated locations and within the specified ambient temperature range. Confirm device current requirements before connecting; leave at least 20% margin between device load and the 3.5A rating to allow for startup currents and to reduce thermal stress. For permanently installed systems, route cables according to local codes and consider using a dedicated fuse or breaker upstream of the unit for additional protection.
