Fonte de alimentação HISMART 24V 8,5A 200W

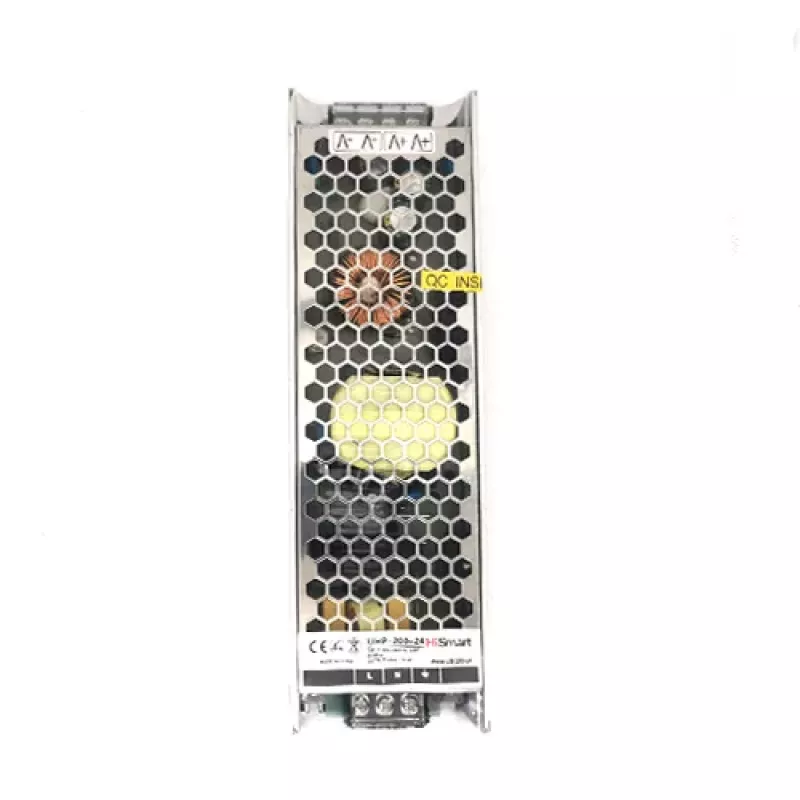

The HISMART UHP-200-24 is a high-performance industrial power supply delivering 24V DC at 8.5A with 200W output. Designed for reliable operation in demanding environments, it features convection cooling, multiple protection mechanisms, and a compact metal case. Ideal for powering LED strips, CCTV systems, automation equipment, and other 24V devices.

Advantages

High efficiency (>85%) reduces energy waste and heat generation. Convection cooling ensures silent operation without fans. Built-in protections (overload, over voltage, short circuit, over temperature) safeguard connected equipment. Adjustable output voltage (±10%) via trim pot provides flexibility.

Suitable for

• Industrial automation and control systems
• LED lighting installations
• Security and CCTV systems
• Telecommunication equipment
• Any 24V DC powered devices up to 200W

Key specifications

• Output Voltage: 24V DC (adjustable ±10%)
• Output Current: 8.5A
• Output Power: 200W
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Efficiency: >85%
• Protection: Overload, Over Voltage, Short Circuit, Over Temperature
• Cooling: Convection (fanless)
• Ripple & Noise: <150mVp-p
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +85°C
• Humidity: 20-90% RH non-condensing
• Safety Compliance: CE, RoHS
• Enclosure: Metal case
• Connection: Screw terminals
• Inrush Current: <60A at 230V AC cold start
• Hold Up Time: >20ms at full load 230V AC

Recommendations

Ensure proper ventilation for convection cooling. Use appropriate gauge wiring for screw terminals. Verify that total connected load does not exceed 200W. Suitable for indoor use only.
