Fonte de alimentação HISMART 48V 4,1A, IP67

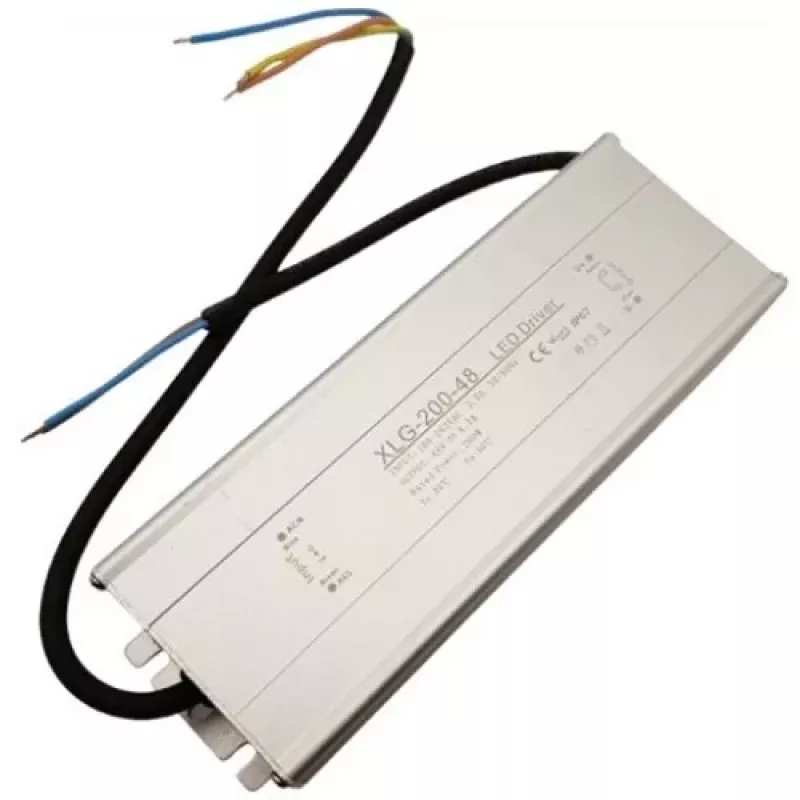

The HISMART XLG-200-48 is a high-performance industrial power supply delivering a stable 48V DC output at 4.1A (196.8W). Designed for demanding environments, it features an IP67 ingress protection rating, making it dust-tight and protected against temporary immersion in water. The unit operates with a wide input voltage range of 90-264 VAC and offers comprehensive protections including overload, overvoltage, short circuit, and overtemperature. Its aluminum alloy housing and free air convection cooling ensure reliable performance in temperatures from -20°C to +50°C.

Advantages

This power supply combines high efficiency (>85%) with rugged construction. The IP67 rating allows installation in harsh outdoor or industrial settings without additional enclosures. The wire lead connections simplify integration into various systems, while the compact design saves space. With CE and RoHS certifications, it meets international safety and environmental standards.

Suitable for

• Industrial automation and control systems
• LED lighting installations
• Security and surveillance equipment
• Telecommunications and networking devices
• Outdoor electronic applications requiring waterproofing

Key specifications

• Input Voltage: 90-264 VAC
• Input Frequency: 47-63 Hz
• Output Voltage: 48 VDC
• Output Current: 4.1 A
• Output Power: 196.8 W
• Ingress Protection: IP67
• Efficiency: >85%
• Protections: Overload, Overvoltage, Short Circuit, Overtemperature
• Cooling: Free Air Convection
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -40°C to +85°C
• Housing Material: Aluminum Alloy
• Input Connection: Wire Leads
• Output Connection: Wire Leads
• Ripple & Noise: <150mVp-p
• Certifications: CE, RoHS
• Isolation Voltage: 3000 VAC (Input to Output)

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. The unit is designed for free air convection; do not block airflow. Suitable for use in dry or wet locations due to IP67 rating. Always follow local electrical codes during installation.
