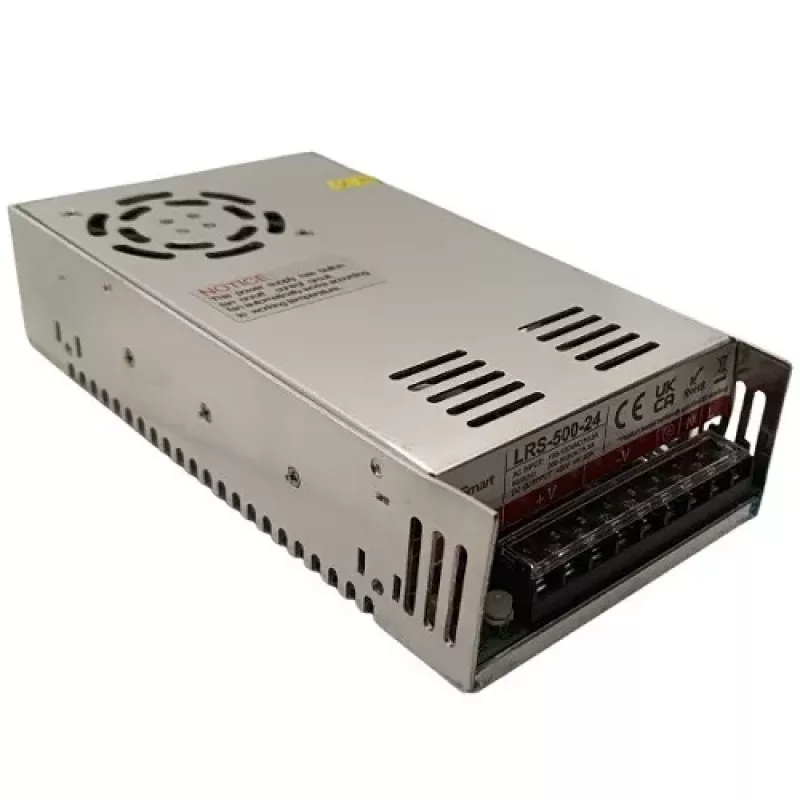

Fonte de alimentação HISMART LRS-500-24 24V 20A 500W

The HISMART LRS-500-24 is a high-performance single output enclosed power supply delivering 24V DC at 20A with 500W output power. Designed for industrial and commercial applications, it offers reliable, stable power with comprehensive protection features. The metal case and built-in fan ensure efficient cooling and long service life.

Advantages

High efficiency >85% reduces energy waste and heat generation. Wide input voltage range (100-240V AC) makes it suitable for global use. Built-in protections (overload, over voltage, short circuit, over temperature) safeguard connected equipment. Compact metal enclosure allows easy installation in control cabinets or on DIN rails.

Suitable for

• Industrial automation systems
• LED lighting installations
• Security and CCTV systems
• Communication equipment
• General 24V DC power applications

Key specifications

• Input: AC 100-240V, 50/60Hz
• Output: DC 24V, 20A, 500W
• Voltage adjustment range: ±10% via potentiometer
• Ripple & noise: <150mVp-p
• Efficiency: >85%
• Protection: Overload, Over Voltage, Short Circuit, Over Temperature
• Cooling: Forced air cooling (built-in fan)
• Operating temperature: -10°C to +50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. Use appropriately rated wiring and circuit protection. Suitable for continuous operation under rated conditions.
