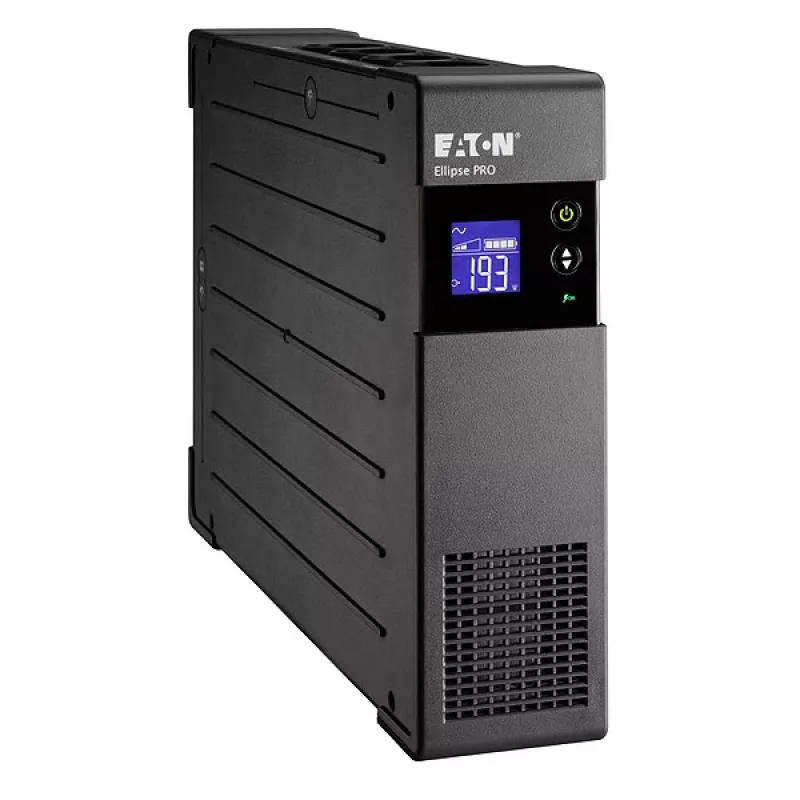

Fonte de alimentação ininterrupta Eaton Ellipse PRO 1200 FR 1,2 kVA / 750 W Line-Interactive, 8x tomadas Type E, LCD, Rack 2U/Torre

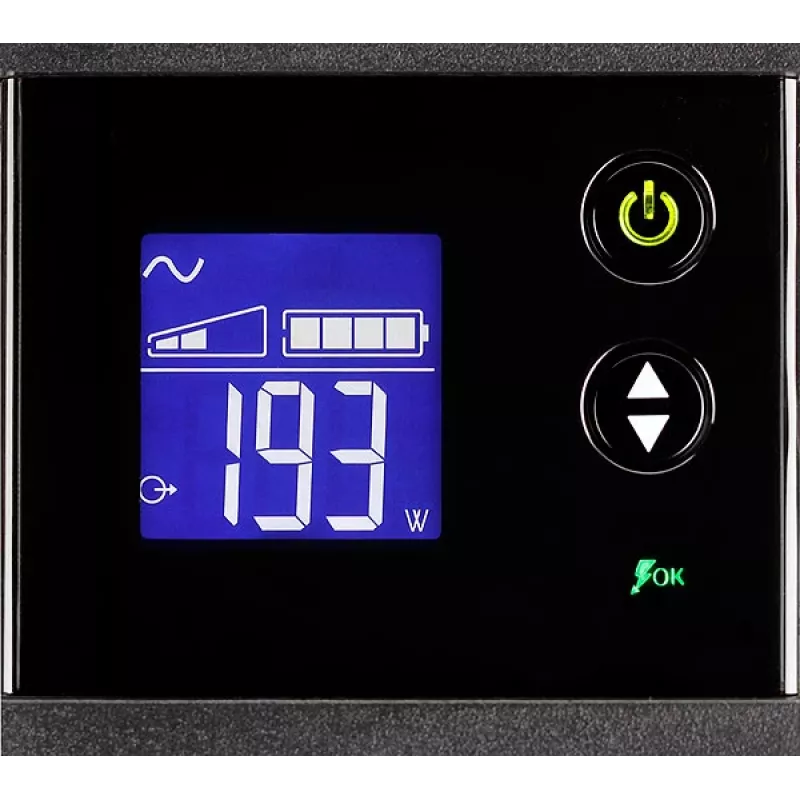

The Eaton Ellipse PRO 1200 FR is a line-interactive UPS designed to protect workstations and sensitive electronics running demanding applications. This tower-form unit provides 1.2 kVA (750 W) output power, eight Type E AC outlets and a C14 power input, with a sealed lead‑acid battery that delivers a typical runtime of about 9 minutes at half load. The UPS includes an LCD for real-time status and measurements, EcoControl outlets for reduced energy use and Advanced Surge Reduction compliant with IEC 61643-1.

Advantages

The UPS offers Automatic Voltage Regulation (AVR) with both buck and boost to deliver clean output without transferring to battery for most voltage variations. EcoControl power outlets reduce standby energy consumption by up to 20% compared with previous-generation models. Integrated surge protection meets IEC 61643-1 requirements. A USB port and Eaton UPS Companion software enable safe automated shutdown, energy usage metering and basic configuration. The extra-flat tower design simplifies installation in office environments.

Suitable for

• Protecting desktop PCs and workstations running business or creative applications
• Powering peripherals such as monitors, NAS drives and network devices
• Small office or home office environments requiring short backup time and surge protection

Key specifications

• Model: Eaton Ellipse PRO 1200 FR (ELP1200FR)
• Output capacity: 1.2 kVA / 750 W

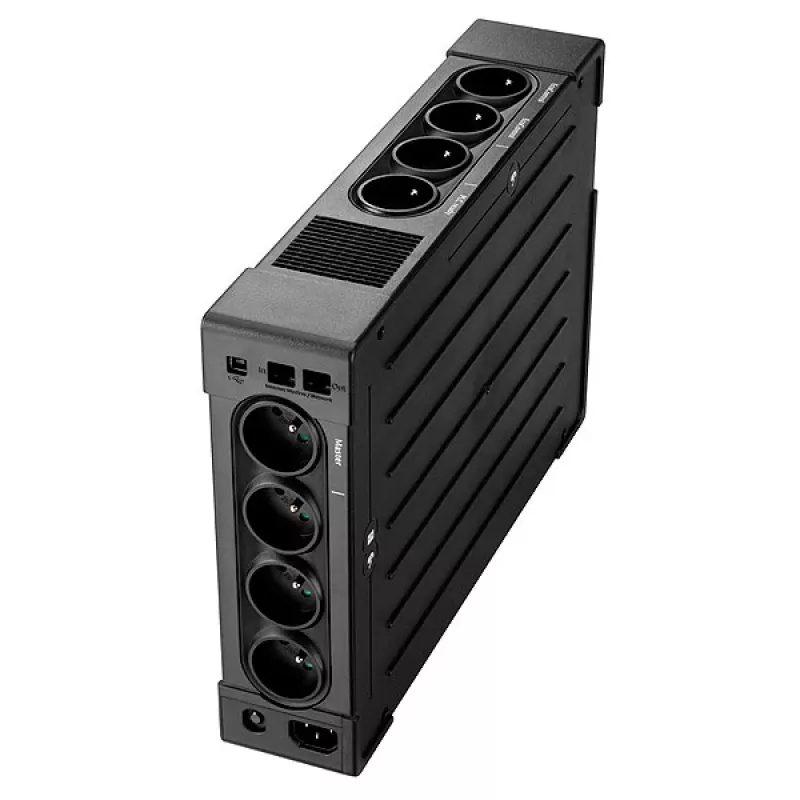

• AC outlets: 8 × Type E
• Input connector: C14
• Battery: sealed lead-acid; typical runtime ~9 minutes at 50% load
• Ports: 1 × USB 2.0
• Compliance: IEC/EN 62040-1, IEC/EN 62040-2, surge protection to IEC 61643-1
• Weight: 9.9 kg
• Color: Black

How to use

Place the UPS on a stable, ventilated surface and connect the UPS input to mains power using the supplied cable. Plug your PC and peripherals into the UPS outlets, using EcoControl outlets for devices you wish to switch off automatically to save energy. Install the Eaton UPS Companion software on the connected computer via the USB port to enable safe shutdown, monitor battery status and configure basic settings. Test the system after installation to confirm load transfer and shutdown behavior.

Recommendations

For reliable operation, perform regular battery self-tests and replace the sealed lead‑acid battery according to Eaton’s maintenance schedule or when runtime degrades. Keep the unit in a temperature-controlled environment and avoid blocking ventilation openings. Use the EcoControl outlets to reduce standby power for non-critical devices.
