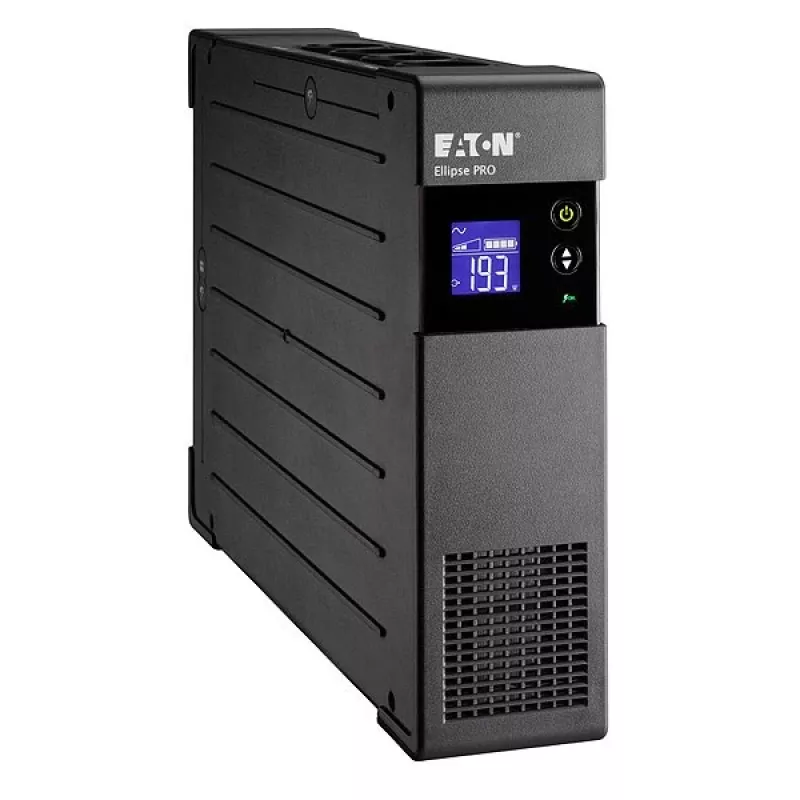

Fonte de alimentação ininterrupta EATON Ellipse PRO 1600 FR, Line-Interactive 1,6 kVA / 1000 W, torre, 8 tomadas tipo E, LCD

The Eaton Ellipse PRO 1600 FR is a line-interactive uninterruptible power supply (UPS) designed to protect workstations and connected equipment running demanding applications. It offers an LCD display for real-time status and measurements, EcoControl power outlets for reduced energy use, Advanced Surge Reduction compliant with IEC 61643-1, and eight AC outlets to power a PC and peripherals. The unit uses sealed lead acid battery technology, provides 1.6 kVA (1000 W) output capacity and a typical runtime of about 9 minutes at half load, with a compact extra-flat design suitable for office installation.

Advantages

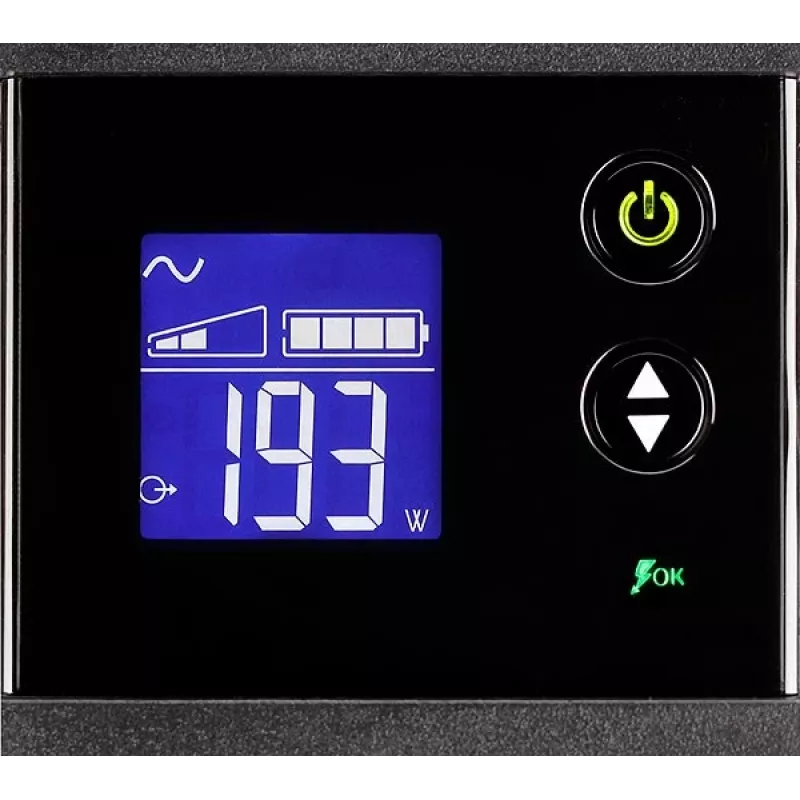

The Ellipse PRO delivers clean output with Automatic Voltage Regulation (AVR) including buck and boost to stabilise voltage without using battery power. EcoControl outlets enable energy savings of up to 20% versus previous generation UPS models. Built-in high-performance surge protection meets IEC 61643-1 requirements. An LCD display gives clear, real-time information and a USB port combined with Eaton UPS Companion software allows safe automatic shutdown, energy usage metering and simple UPS configuration.

Suitable for

• Desktop workstations and office PCs
• Peripherals such as monitors, printers and external drives
• Small network equipment and protected data/telephone lines
• Environments requiring AVR and surge protection

Key specifications

• Output power capacity: 1.6 kVA (1000 W)

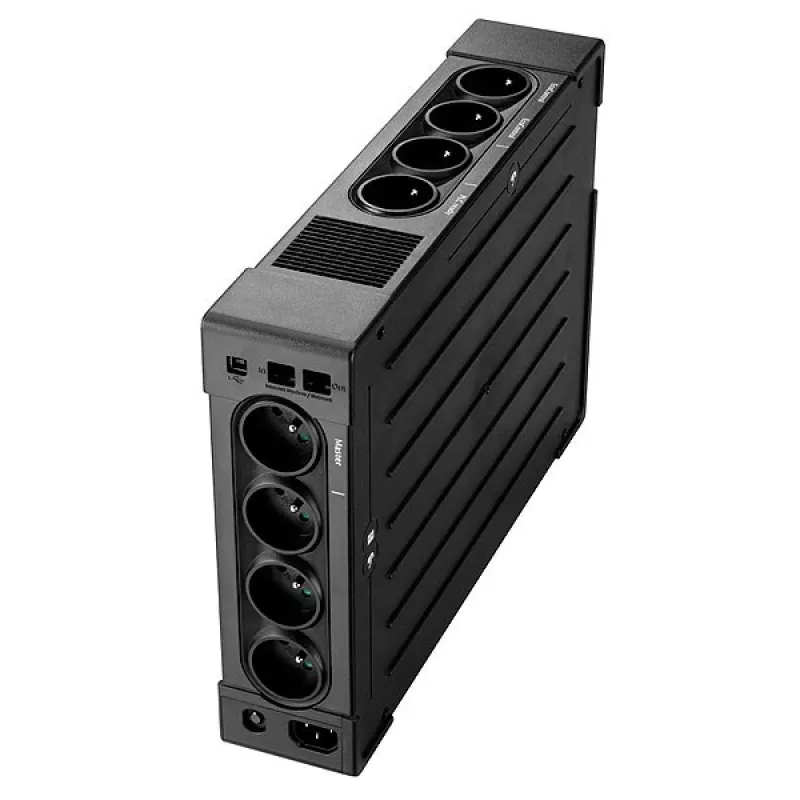

• AC outlets quantity: 8 AC outlets
• Battery type: sealed lead acid
• Typical backup time: ~9 minutes at half load
• USB ports: 1 × USB 2.0
• Form factor: tower (2U rack-capable), extra-flat design
• Weight: 11.3 kg
• Colour: black

How to use

Install the UPS on a stable, level surface or mount it in a rack according to the product manual. Connect critical devices to the battery‑backed AC outlets and noncritical equipment to any load‑shedding or EcoControl outlets as required. Connect the UPS to a host computer via the USB port and install Eaton UPS Companion software to enable automatic, safe shutdown and to configure energy metering and other settings. Regularly check the LCD for status, load and battery measurements.

Recommendations

Place the UPS in a well-ventilated area away from heat sources, perform periodic battery tests per the manufacturer’s instructions, and replace batteries at the end of their service life. For protection of data lines, use the dedicated Ethernet/telephone protection inputs if available and ensure firmware/software is kept up to date.
