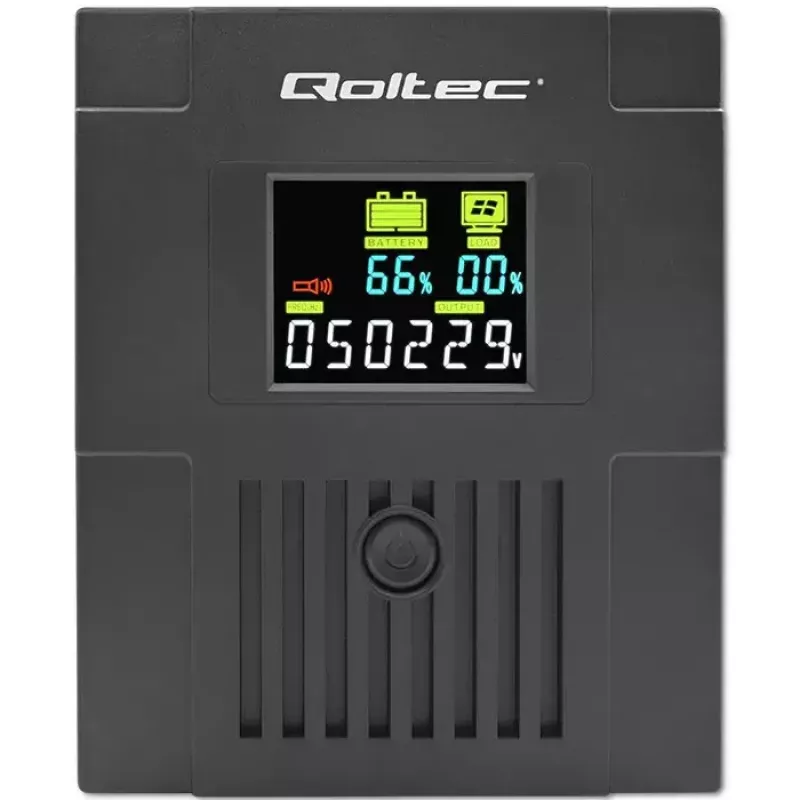

Fonte de alimentação ininterrupta QOLTEC 53770, UPS Line-Interactive 1,5 kVA (900 W), 2 saídas C13, AVR, LCD, USB Type-B

The Qoltec Line Interactive UPS 1.5 kVA (model 53770) provides stable power to connected equipment during voltage fluctuations and power outages. With 900 W output, two AC outlets, USB Type-B communication and an LCD display, it is designed for users who need controlled and continuous operation of computers and other data processing devices. The unit uses a modified sine output and includes a maintenance-free battery (9 Ah, 12 V) that recharges to 90% in up to 6 hours.

Advantages

This Line Interactive UPS features Automatic Voltage Regulation (AVR) that corrects under- and over-voltage to near-nominal levels, reducing battery use and protecting connected devices. The modified sine output is suitable for computers and similar equipment and contributes to a simpler design and lower failure rates. Additional benefits include cold-start capability, overload/discharge/overcharge protection, surge protection over LAN via an RJ45 port, an audible alarm, and two built-in batteries for reliable backup power. The front LCD provides real-time status and parameter information for easy monitoring.

Suitable for

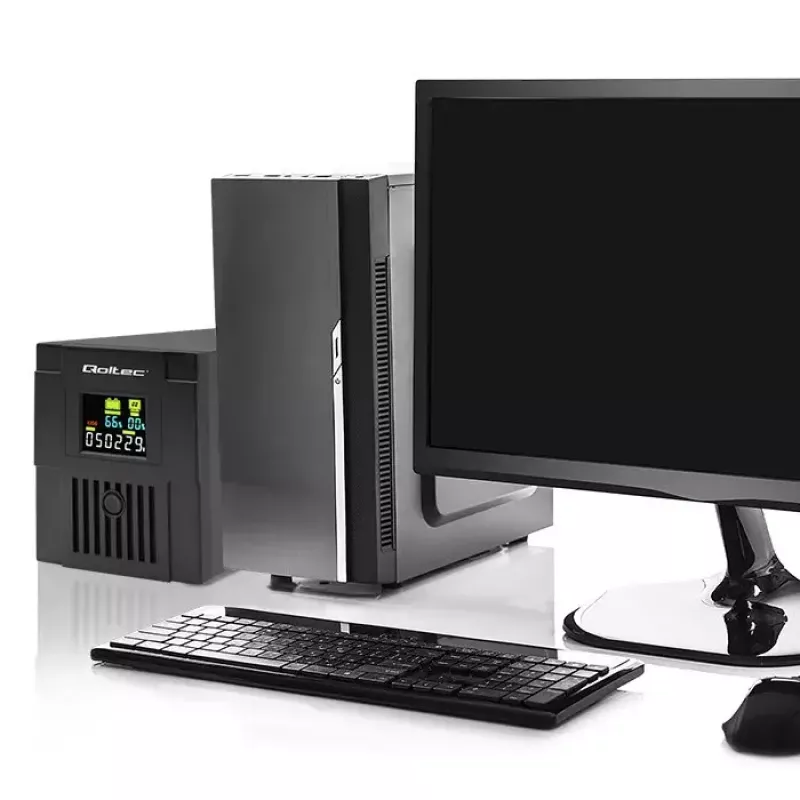

• Desktop computers and workstations
• Home office equipment and small office setups
• Network devices requiring surge protection via LAN
• Situations needing short-term battery backup for saving work or orderly shutdown

Key specifications

• Model: Qoltec 53770
• Output power capacity: 1.5 kVA
• Output power: 900 W
• AC outlets: 2
• Battery: maintenance-free, 9 Ah, 12 V (2 built-in batteries)
• Recharge time: up to 6 hours to 90%
• Output waveform: modified sine
• Communication: USB Type-B
• Protection: AVR, overload/discharge/overcharge protection, RJ45 surge protection
• Display: LCD
• Weight: 11.1 kg
• Colour: Black

How to use

Connect your computer or other compatible equipment to the two AC outlets and plug the UPS into mains power to charge the internal battery. Use the USB Type-B connection and the supplied power management software to monitor status and configure shutdown or alarm settings. In the event of mains voltage abnormalities, the AVR will automatically correct minor deviations; if mains power fails, the UPS will switch to battery power and supply modified sine output until mains return or the battery is depleted. Use the cold-start function to power the unit from battery when mains are absent.

Recommendations

Place the UPS in a dry, well-ventilated location away from direct heat sources. Regularly save important work and perform orderly shutdowns when battery runtime is low. Replace the battery according to the manufacturer’s guidance and avoid connecting devices that require a pure sine wave if precise waveform is critical.
