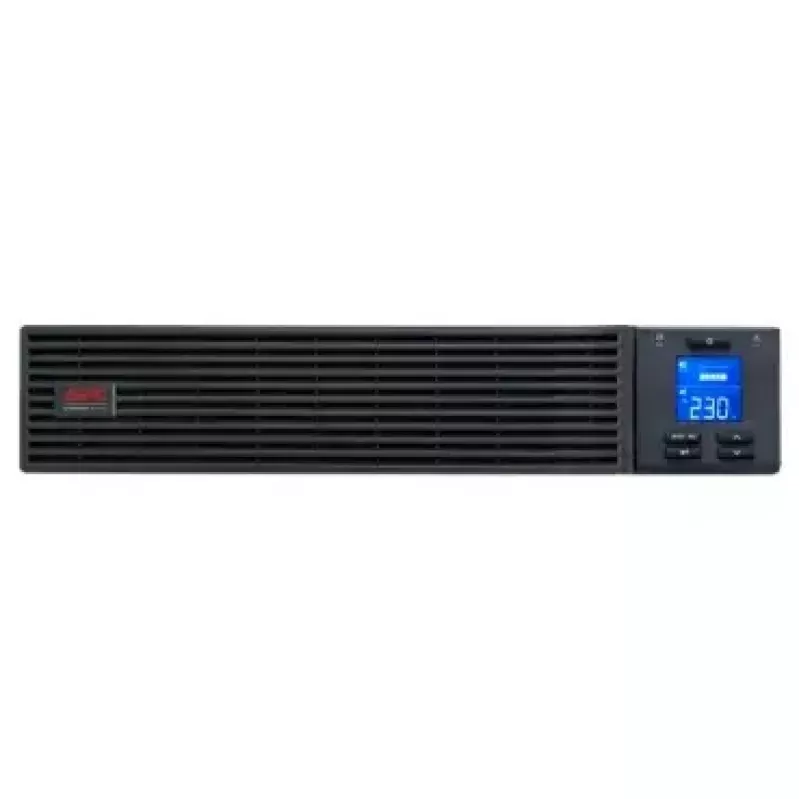

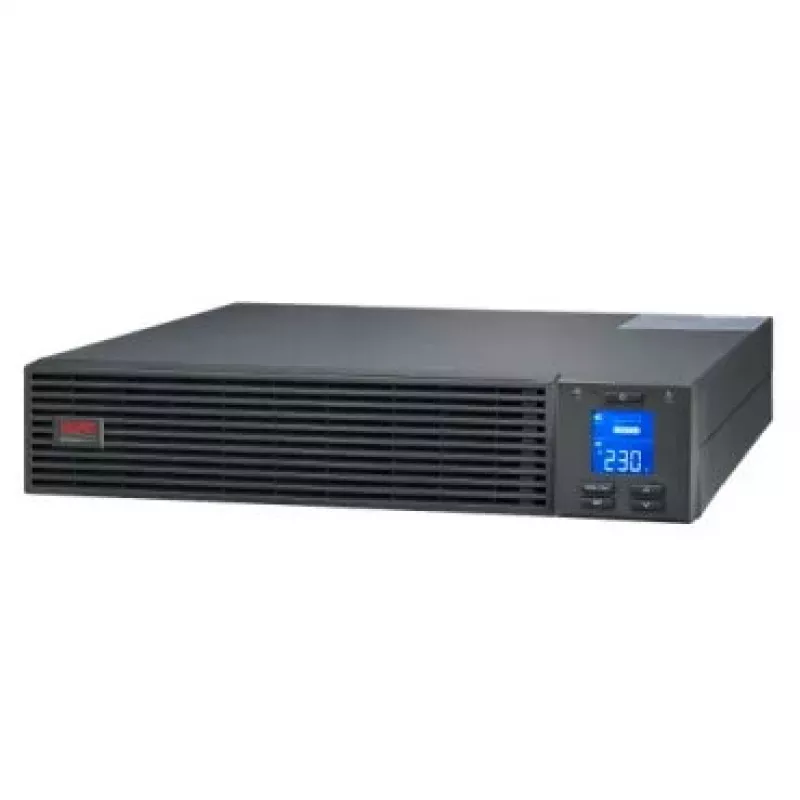

Fonte de alimentação ininterrupta (UPS) APC SRV2KRIRK-E 2 kVA 1800 W

The APC SRV2KRIRK-E 2 kVA 1800 W uninterruptible power supply (UPS) provides reliable backup power and conditioned electricity for rack-mounted equipment. Designed with a sine waveform output and sealed lead acid battery technology at 48 V, this 2U rack unit offers 1800 W continuous output and a 4-hour recharge time. Its compact dimensions (438 mm wide, 462 mm deep, 86 mm high) and black finish allow integration into server cabinets and network racks where space is limited.

Advantages

The UPS delivers clean sine wave power suitable for sensitive electronics and ensures uninterrupted operation during power disturbances. Sealed lead acid batteries provide dependable energy storage with straightforward maintenance and predictable performance. The 2U rack form factor and compact footprint simplify installation in standard racks, while the 1800 W output supports a range of IT and networking loads. The unit’s balanced combination of power capacity and compact dimensions makes it practical for data closets and small server rooms.

Suitable for

• Rack-mounted servers and network switches in small to medium-sized IT environments
• Edge computing, storage devices and telecommunications equipment
• Workstations and critical peripherals that require clean sine wave power
• Environments where a 2U form factor and space-efficient power backup are needed

Key specifications

• Output power: 1800 W
• Output power capacity: 2 kVA
• Output waveform: sine wave
• Battery technology: sealed lead acid (VRLA)
• Battery voltage: 48 V
• Recharge time: approximately 4 hours
• Form factor: 2U rack-mount
• Dimensions (W×D×H): 438 × 462 × 86 mm
• Colour: black
• Weight: 18.8 kg

How to use

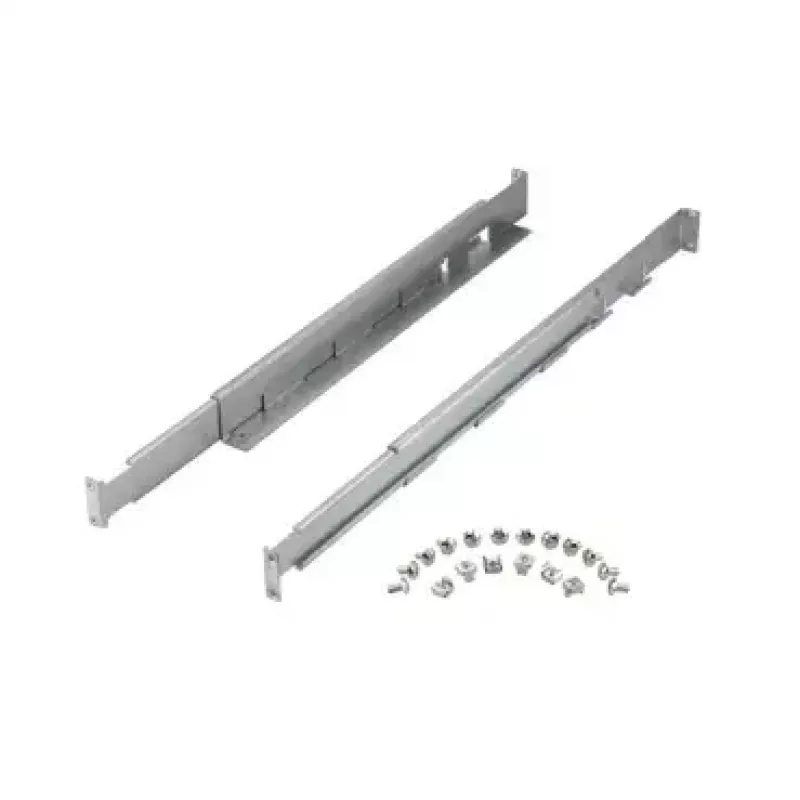

Install the UPS into a compatible 19-inch rack using the included rack-mount hardware, ensuring adequate ventilation and clearance around the unit. Connect the protected equipment to the UPS output sockets and plug the UPS input to the AC supply via the appropriate inlet. Verify battery connection and allow the UPS to charge for a full cycle (up to the specified recharge time) before relying on battery-only operation. Monitor status indicators or management software as applicable to confirm normal operation and battery health.

Recommendations

Place the UPS in a controlled environment free from excessive dust, moisture and temperatures outside the manufacturer’s recommended range. Periodically check battery condition and replace batteries according to usage and end-of-life indications. For installations with critical uptime requirements, consider regular testing, load assessments and use of monitoring tools to ensure reliable backup performance.
