Fonte de alimentação ininterrupta (UPS) Vertiv Liebert GXT5, dupla conversão (online), 3 kVA, 3000 W, 7 saídas AC

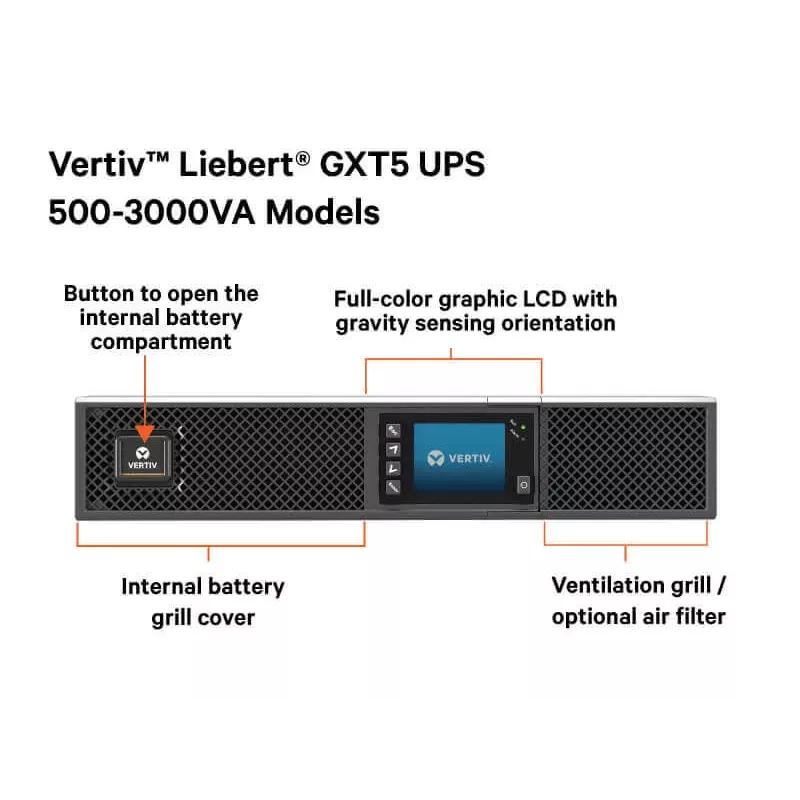

The Vertiv Liebert GXT5 UPS 3000VA/3000W is a 2U online double-conversion uninterruptible power supply designed to protect critical IT infrastructure in rack or tower environments. It provides continuous, regulated AC power and supports user-configurable nominal voltages (200/208/220/230/240V). The unit includes seven AC outlets (C13 and C19 types), sealed lead-acid hot-swappable batteries and an LCD display for monitoring. ENERGY STAR 2.0 certification, scalable runtime with optional external battery cabinets, and a two-year factory warranty are included.

Advantages

The double-conversion online topology delivers consistent, clean power without drawing on battery during normal operation, which extends battery life and reduces replacements. Hot-swappable sealed lead-acid batteries allow maintenance without downtime. The UPS offers flexible deployment as a 2U rackmount or tower unit and supports scalable runtime via matching external battery cabinets. ENERGY STAR 2.0 certification and Eco-mode improve operating efficiency, while the built-in LCD provides easy status and configuration monitoring.

Suitable for

• Small and medium data centers and server racks
• Edge computing and network closets
• Workstations and critical IT equipment requiring clean, continuous power
• Environments needing scalable runtime with external battery cabinets

Key specifications

• Model: GXT5-3000IRT2UXLE
• Output power capacity: 3 kVA / 3000 W

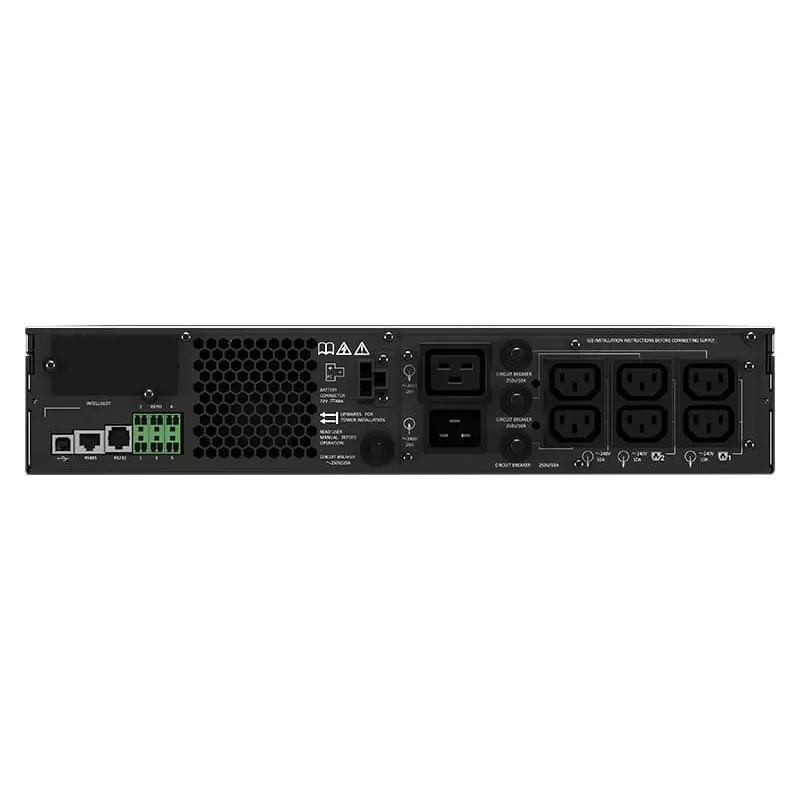

• AC outlets: 7 (C13 and C19)
• Input/output voltage (user-configurable): 200/208/220/230/240 V
• Batteries: sealed lead-acid, hot-swappable

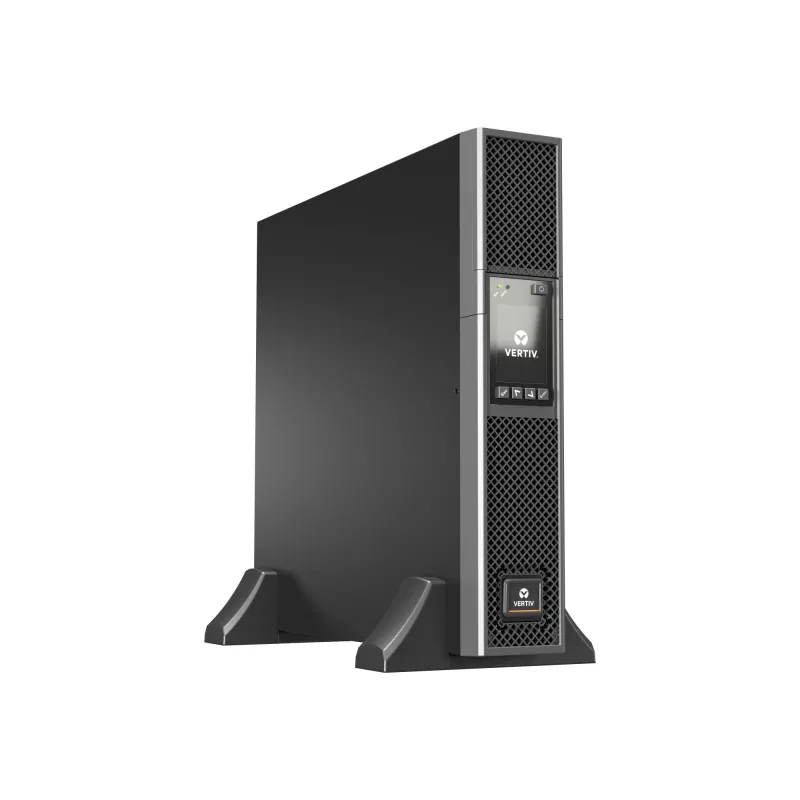

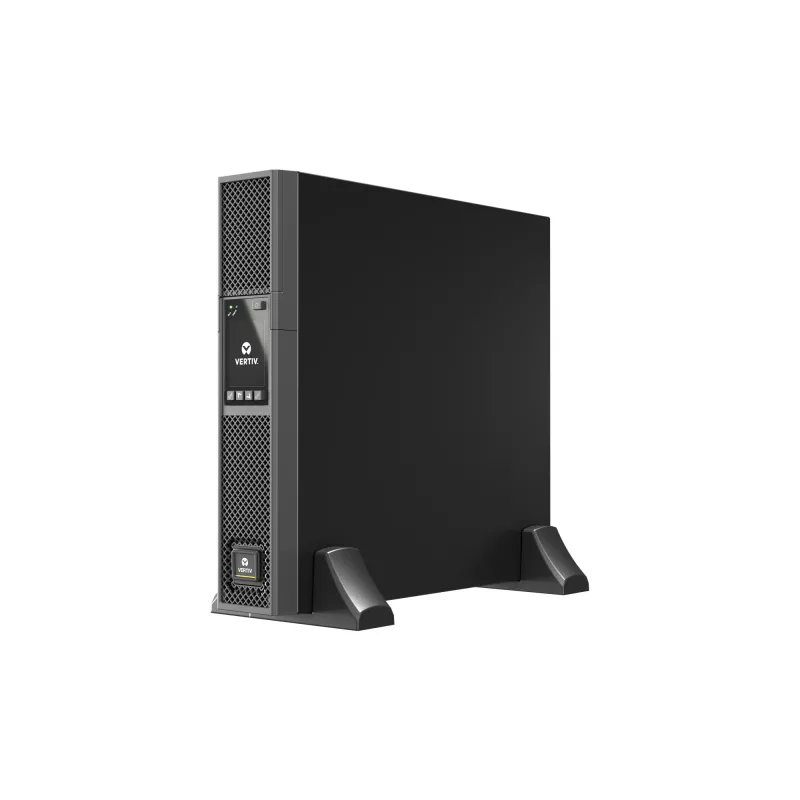

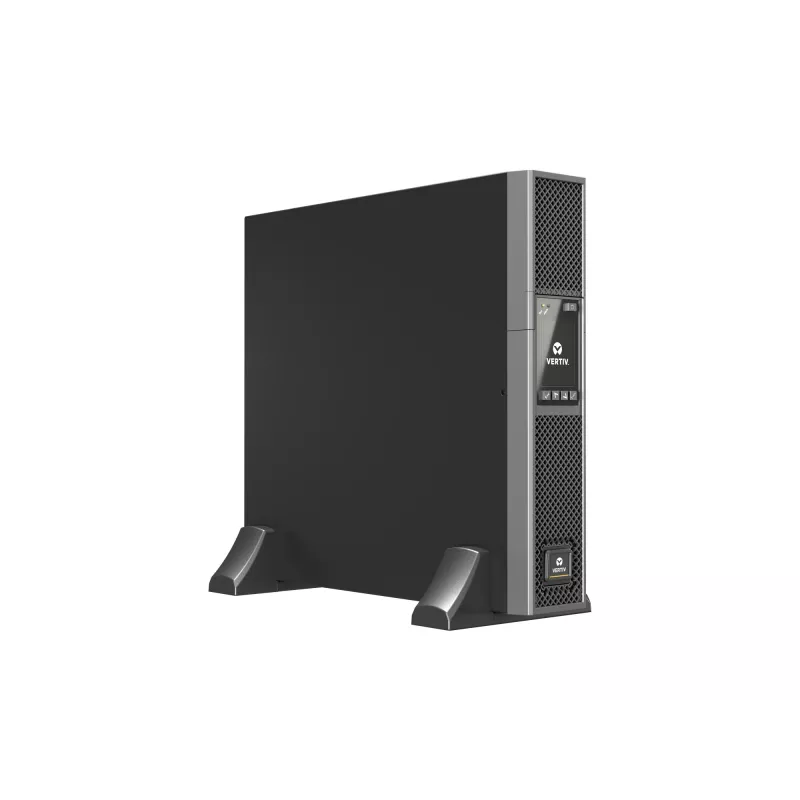

• Form factor: 2U rackmount with tower installation hardware
• Weight: 28.2 kg
• Color: Black
• Certification: ENERGY STAR 2.0
• Warranty: 2 years factory warranty

How to use

Install the UPS in a standard 19-inch equipment rack using the included 2U rackmount hardware or place it on a stable, ventilated surface for tower operation. Connect critical equipment to the UPS AC outlets (C13 and C19) and configure the nominal output voltage to match your site (200/208/220/230/240V) via the front-panel LCD. When additional runtime is required, connect matching external battery cabinets following the manufacturer instructions. Monitor status, alarms and load levels through the LCD or network management interface if installed, and replace batteries with hot-swappable units when the UPS indicates end-of-life.

Recommendations

Place the UPS in a temperature-controlled, dust-free environment with adequate ventilation. Verify that total connected load does not exceed 3000 W and follow Vertiv’s guidelines for battery maintenance and external battery cabinet connections to ensure reliable runtime during outages.
